00-AMAROK

[ Open for more informations ] [ Fold up ]

VOLKSWAGEN AMAROK SHORT CAB (MANUAL OR AUTOMATIC GEARBOX)
-Engine : 4 cylinders 2.0 L  Diesel Turbocharging
-Power : 180 HP to 4000 trs/mn
-Engine couple : 420 N/m to 1750 trs/mn
-Gearbox : automatic 8 or manual 6 speed transmission
-Brake : front ventilated discs and rear drum
-Driving aids : A.B.S + ASR + EDS + ESP
-White cabin - 2 seats - electric windows - air conditioning - radio CD
-Tyres 245/70X16 on original wheels aluminum
-Wheelbase: 3095mm - Length: 4800mm - Width: 1950mm - Height: 1850mm

-2 YEARS WITH UNLIMITED MILEAGE

-FREE VOLKSWAGEN ASSISTANCE FOR LIFE IN THE CASE OF FAILURE AND FOR 8 YEARS IN CASE OF ACCIDENT (UNDER MAINTENANCE CONDITIONS AT VOLKSWAGEN, PERIODICITY REVISION 2 YEARS OR 40,000 KMS)

00-PF3000-AMAR

[ Open for more informations ] [ Fold up ]

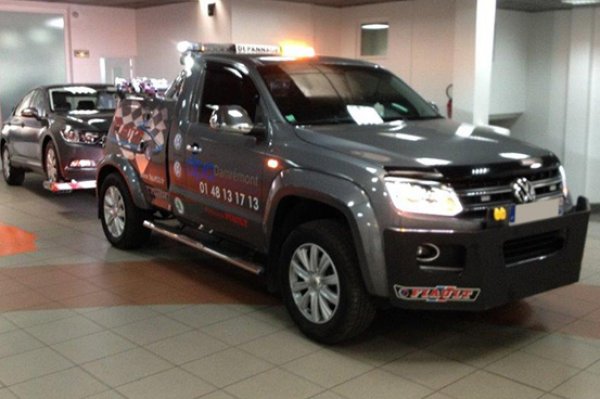

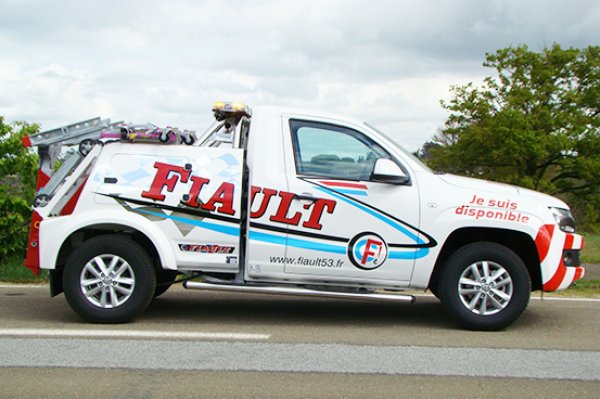

MAXILIFT PF3000 4x4 ON VOLKSWAGEN AMAROK SHORT CAB

SPECIAL MODIFICATION ON THE VEHICLE
-Rear suspension converted to pneumatic with pump and reservoir
-Two pneumatic cushions with automatic levelling system
-Adaptation of a ballast anti-squat under the front bumper

SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
-VEHICLE CONFORMS TO EU REGULATION

0201M040

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

0201M080

[ Open for more informations ] [ Fold up ]

Reminder of traffic lights in the XPERT lightbar

0206M010

[ Open for more informations ] [ Fold up ]

Fitting the lightbar on manually rotating support

0502M140

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

0502M150

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

0204M010

[ Open for more informations ] [ Fold up ]

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

0302M090

[ Open for more informations ] [ Fold up ]

Adaptation of foot-steps in aluminium

0302M020

[ Open for more informations ] [ Fold up ]

Supply and installation of chrome 4x4 bull bar

0302M025

[ Open for more informations ] [ Fold up ]

Supply and installation of a sheet steel bull bar with cutting for lights and cooling with rubber protection BLACK or painting or sticker in RED and WHITE for 4x4 (not homologated)

0302M050

[ Open for more informations ] [ Fold up ]

Supply and installation of a sun screen above the windshield

0302M100

[ Open for more informations ] [ Fold up ]

Adaptation of a second battery in the engine compartment for intensive use of the equipment (on Maxilift PF3000)

0510M030

[ Open for more informations ] [ Fold up ]

Replacement of the original 4 wheels by BLACK STEEL wheels reinforced

0510M020

[ Open for more informations ] [ Fold up ]

Replacement of the original 4 wheels with ALUMINUM wheels reinforced in GREY

0313M150

[ Open for more informations ] [ Fold up ]

Painting the back of the cab in a standard non-metallic color (on chassis from 3T to 7T)

0313M160

[ Open for more informations ] [ Fold up ]

Painting the cab of a 4x4 in a standard non-metallic color (on chassis from 3T to 7T)

0313M130

[ Open for more informations ] [ Fold up ]

Painting of the towing arm in a standard color (on MAXILIFT)

0313M120

[ Open for more informations ] [ Fold up ]

Painting of the front bumper in WHITE (same color as the cab) and RED RAL 3002

0503M040

[ Open for more informations ] [ Fold up ]

Motorcycle kit with a wheel shoe, two "MP3" bars and a galvanized motorcycle bar adaptable to the Second Car Carrier SCC, a special strap for handlebars and two stowage straps (on MAXILIFT)

0503M050

[ Open for more informations ] [ Fold up ]

SPECIAL Motorcycle kit with a wheel shoe, two "MP3" bars and a galvanized motorcycle bar adaptable to the Second Car Carrier SCC type US, a special strap for handlebars and two stowage straps (on MAXILIFT)

1205M030

[ Open for more informations ] [ Fold up ]

Installation of an air compressor with hose and pressure gauge

0205M010

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights with electric cables and flexible yellow plate

0205M020

[ Open for more informations ] [ Fold up ]

Two suction towing lights with electric cables and flexible yellow plate

0205M030

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights 24V with radio control and flexible yellow plate

0205M040

[ Open for more informations ] [ Fold up ]

Two suction towing lights with radio control and flexible yellow plate

0205M070

[ Open for more informations ] [ Fold up ]

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

0901M020

[ Open for more informations ] [ Fold up ]

An additional 8-function radio transmitter (without radio receiver)

0901M050

[ Open for more informations ] [ Fold up ]

A protective cover for remote control 8 or 10 functions (without remote control)

0901M040

[ Open for more informations ] [ Fold up ]

Two switches in the cab for raising and correcting the towing arm in addition to the remote control (on MAXILIFT)

0803M010

[ Open for more informations ] [ Fold up ]

Rear view camera in color with flat screen in the cabin

0803M020

[ Open for more informations ] [ Fold up ]

Rear view camera in color fitted on the roll-bar with flat screen positioned on the central mirror in the cabin (works even in driving) (for 4x4)

1205M020

[ Open for more informations ] [ Fold up ]

Installation of an air intake in the hydraulic controls toolbox

1108M085

[ Open for more informations ] [ Fold up ]

A special MAXILIFT PF 3000 crane head without support

1102M050

[ Open for more informations ] [ Fold up ]

Four ton electric (12v) winch integrated into the front bumper and coupled with the remote control of the main winch

0504M140

[ Open for more informations ] [ Fold up ]

US type basket Second Car Carrier SCC with hydraulically articulated forks and remote control replacing the standard SCC (on MAXILIFT)
