Plat'Fix 2+2

Plat'Fix 2+2



PLAT'FIX 2+2



On chassis cab : 19T or 26T, wheelbase 5500 to 5900mm

(Fitted on a PTO, rear pneumatic suspension, an 13 electric towing pin on the back of the frame and wheel size low series 60)

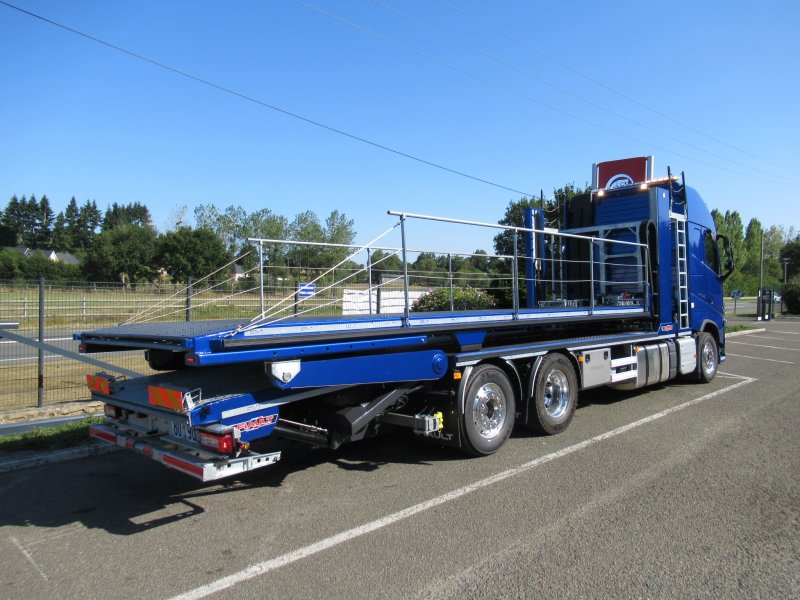

PLAT'FIX 2+2 CAR TRANSPORTER (DAMAGED VEHICLES, HYDRAULIC RAMP, SWIVELLING REAR RAMP)

-Hydraulic circuit with high pressure pump, filtered reservoir with indication of level

-Multi-function hydraulic distribution housed in a lit security cabinet

-Lower deck in welded, re-inforced and galvanised 4mm steel with channeled finish

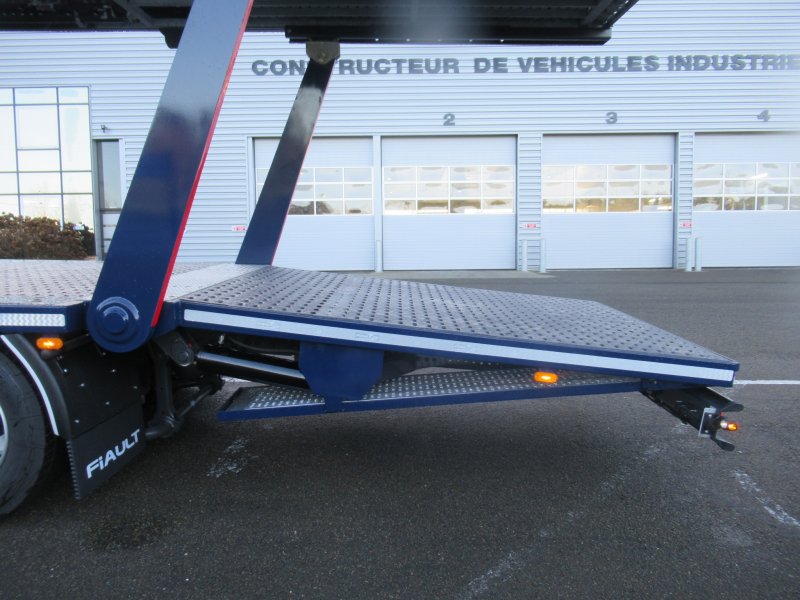

-Lowerable rear ramp via two hydraulic pistons with saftey locks and protected by rubber gators

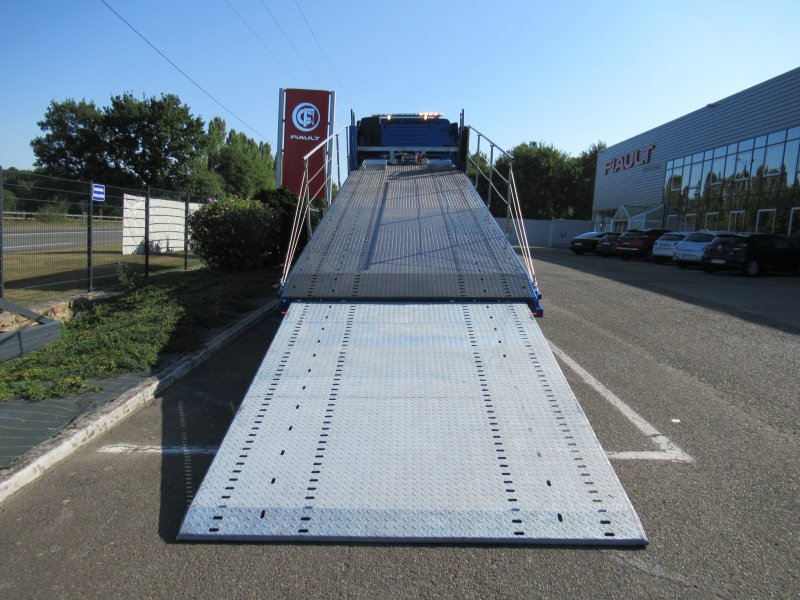

-Integrated full width loading ramp with hydraulic extension via twin pistons permitting direct loading from ground level

-Upper deck with integrated rise and fall via hydraulic post lifts at the front and rear swing arms with adjustment to various heights with locking pins

-Upper deck in welded, re-inforced and galvanised 4mm steel with channeled finish

-Upper deck, full width hydraulic (two pistons) flush mounted, 2800 mm extension



COMPLEMENTARY ACCESSORIES :

-A 4.5T ton hydraulic winch mounted on the lower platform with manual clutch

-A 4.5T ton hydraulic winch mounted on the upper platform with manual clutch

-Radio control for the two winches

-16 adjustable wheel clamps on the platform (8 + 8)

-Hydraulic controls mounted in a secure cabinet with light

-A large polyurethane toolbox 1000 mm

-A work light mounted between the platforms

-Six angled roller cable guides fixed to bed

-Removeable saftey rail on upper deck and over cab

-Rubber protections on the two side of the platform of both levels

-6kg fire extinguisher in a weather proof cabinet



SURFACE TREATMENT :

-Hot phosphate treatment of all equipment

-Double undercoat with two coats of polyurethane laquer finish

-Cadmium treated locking pins, galvanised chocks and galvanised saftey rails

-Rubber gators on pistons

-A white reflective strips on the two side of the platform of both levels

-Front face and sides of platform of both levels painted, color to define RAL :

-VEHICLE CONFORMS TO REGULATIONS



EXTERIOR DIMENSIONS :

-Lower platform length : between 8500 mm to 9000 mm (to specification depends on chassis cab)

-Upper platform length : between 8500 mm to 9000 mm (approx) + 2800 mm extension

-Loading capacity : 2 vehicles on top deck and 2 vehicles on lower deck



Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.

PLAT'FIX 2+2

00-PF2+2

[ Open for more informations ] [ Fold up ]

PLAT'FIX 2+2 CAR TRANSPORTER (DAMAGED VEHICLES, HYDRAULIC RAMP, SWIVELLING REAR RAMP)
-Hydraulic circuit with high pressure pump, filtered reservoir with indication of level
-Multi-function hydraulic distribution housed in a lit security cabinet
-Lower deck in welded, re-inforced and galvanised 4mm steel with channeled finish
-Lowerable rear ramp via two hydraulic pistons with saftey locks and protected by rubber gators
-Integrated full width loading ramp with hydraulic extension via twin pistons permitting direct loading from ground level
-Upper deck with integrated rise and fall via hydraulic post lifts at the front and rear swing arms with adjustment to various heights with locking pins
-Upper deck in welded, re-inforced and galvanised 4mm steel with channeled finish
-Upper deck, full width hydraulic (two pistons) flush mounted, 2800 mm extension

COMPLEMENTARY ACCESSORIES :
-A 4.5T ton hydraulic winch mounted on the lower platform with manual clutch
-A 4.5T ton hydraulic winch mounted on the upper platform with manual clutch
-Radio control for the two winches
-16 adjustable wheel clamps on the platform (8 + 8)
-Hydraulic controls mounted in a secure cabinet with light
-A work light mounted between the platforms
-Six angled roller cable guides fixed to bed
-Removeable saftey rail on upper deck and over cab
-Rubber protections on the two side of the platform of both levels
-6kg fire extinguisher in a weather proof cabinet

SURFACE TREATMENT :
-Hot phosphate treatment of all equipment
-Double undercoat with two coats of polyurethane laquer finish
-Cadmium treated locking pins, galvanised chocks and galvanised saftey rails
-Rubber gators on pistons
-Front face and sides of platform of both levels painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS

EXTERIOR DIMENSIONS :
-Lower platform length : between 8500 mm to 9000 mm (to specification depends on chassis cab)
-Upper platform length : between 8500 mm to 9000 mm (approx) + 2800 mm extension
-Loading capacity : 2 vehicles on top deck and 2 vehicles on lower deck

Deck in sheets metal reinforced GALVANIZED and RIB 4mm

0309M123

[ Open for more informations ] [ Fold up ]

Deck in sheets metal reinforced GALVANIZED and RIB 4mm, without edges of banks and holes of blocking along the whole length

Sheet steel anti-slip load bed with perforations for fixing blocks, braces

0309M120

[ Open for more informations ] [ Fold up ]

Sheet steel anti-slip load bed with perforations for fixing blocks, braces etc.

Deck in sheets metal reinforced LARME 4/6 mm PAINTED, without sides

0309M121

[ Open for more informations ] [ Fold up ]

Deck in sheets metal reinforced LARME 4/6 mm PAINTED, without sides and wedging holes over the entire length replacing the sheet steel anti-slip load bed with perforations for fixing blocks and braces (TP80)

Replacing the fixed winch cable hook with a rotating hook

1104M040

[ Open for more informations ] [ Fold up ]

Replacing the fixed winch cable hook with a rotating hook

A rubber end stop for winch cable

1104M050

[ Open for more informations ] [ Fold up ]

A rubber end stop for winch cable

Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch

1106M020

[ Open for more informations ] [ Fold up ]

Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch

A hook type 2 with shackle on winch cable

1109M010

[ Open for more informations ] [ Fold up ]

A hook type 2 with shackle on winch cable

Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box

1110M040

[ Open for more informations ] [ Fold up ]

Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box

A remote control for lifting the loading hydraulic overhang rear and sliding the lower loading ramp

0902M080

[ Open for more informations ] [ Fold up ]

A remote control for lifting the loading hydraulic overhang rear and sliding the lower loading ramp

A remote control for elevating the FRONT + REAR of the upper deck and extending the upper loading ramp

0902M090

[ Open for more informations ] [ Fold up ]

A remote control for elevating the FRONT + REAR of the upper deck and extending the upper loading ramp

Two LED beacons fitted on dismountable gallows at the front of the platform

0203M040

[ Open for more informations ] [ Fold up ]

Two LED beacons fitted on dismountable gallows at the front of the platform

Two LED beacons installed on swinging stems at the rear of the equipment

0203M070

[ Open for more informations ] [ Fold up ]

Two LED beacons installed on swinging stems at the rear of the equipment

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

0204M011

[ Open for more informations ] [ Fold up ]

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

Two integrated work lights at the head of the platform

0101M020

[ Open for more informations ] [ Fold up ]

Two integrated work lights at the head of the platform

A work light fitted at the rear of the equipment

0101M040

[ Open for more informations ] [ Fold up ]

A work light fitted at the rear of the equipment

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

0106M010

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

0106M020

[ Open for more informations ] [ Fold up ]

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

0106M050

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

Three vests, three cones, shovel and broom with mounts

0706M010

[ Open for more informations ] [ Fold up ]

Three vests, three cones, shovel and broom with mounts

A sandbox for absorbent product with support

0704M010

[ Open for more informations ] [ Fold up ]

A sandbox for absorbent product with support

A 6 Kg fire extinguisher mounted in a secure locker

0705M020

[ Open for more informations ] [ Fold up ]

A 6 Kg fire extinguisher mounted in a secure locker

A plastic toolbox 600mm

0401M010

[ Open for more informations ] [ Fold up ]

A plastic toolbox 600mm

A plastic toolbox 750mm

0401M020

[ Open for more informations ] [ Fold up ]

A plastic toolbox 750mm

A plastic toolbox 1000mm

0401M030

[ Open for more informations ] [ Fold up ]

A plastic toolbox 1000mm

An inox toolbox 600mm

0402M020

[ Open for more informations ] [ Fold up ]

An inox toolbox 600mm

An inox toolbox 800mm

0402M030

[ Open for more informations ] [ Fold up ]

An inox toolbox 800mm

An inox toolbox 1000mm

0402M040

[ Open for more informations ] [ Fold up ]

An inox toolbox 1000mm

LED ceiling lighting in a toolbox

0107M010

[ Open for more informations ] [ Fold up ]

LED ceiling lighting in a toolbox

An open box with 3 plastic 10 liter jerricans with support

0404M010

[ Open for more informations ] [ Fold up ]

An open box with 3 plastic 10 liter jerricans with support

An open box with 3 steel 10 liter jerricans with support

0404M020

[ Open for more informations ] [ Fold up ]

An open box with 3 steel 10 liter jerricans with support

A washstand tank with faucet on a support

0404M060

[ Open for more informations ] [ Fold up ]

A washstand tank with faucet on a support

An open galvanized mesh tray for chains with support

0405M010

[ Open for more informations ] [ Fold up ]

An open galvanized mesh tray for chains with support

An open mesh tray for chains with sliding support

0405M020

[ Open for more informations ] [ Fold up ]

An open mesh tray for chains with sliding support

Two wheel dollies type "CHARIOTTE " (without support)

0502M060

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

0502M070

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

0502M080

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)

0502M090

[ Open for more informations ] [ Fold up ]

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)

Two wheel dollies type "GO-JACK 6313" (without support)

0502M100

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "GO-JACK 6313" (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)

0502M110

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)

An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)

0502M120

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

0502M140

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

0502M150

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)

0502M160

[ Open for more informations ] [ Fold up ]

A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)

Two jumper cables with two 12V and 24V plugs on the front right of the equipment

1202M020

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs on the front right of the equipment

Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment

1202M040

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment

Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)

1202M050

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)

A special motorcycle wedge with an articulated and adjustable shoe

0503M010

[ Open for more informations ] [ Fold up ]

A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment

A 2 tons SCC type “AUTOLIFT” galvanised with hydraulic elevation and extension 1200 mm

0504M010

[ Open for more informations ] [ Fold up ]

A 2 tons SCC type “AUTOLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck

Two magnetic towing lights with electric cables and flexible yellow plate

0205M010

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights with electric cables and flexible yellow plate

Two suction towing lights with electric cables and flexible yellow plate

0205M020

[ Open for more informations ] [ Fold up ]

Two suction towing lights with electric cables and flexible yellow plate

Two magnetic towing lights 24V with radio control and flexible yellow plate

0205M030

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights 24V with radio control and flexible yellow plate

Two suction towing lights with radio control and flexible yellow plate

0205M040

[ Open for more informations ] [ Fold up ]

Two suction towing lights with radio control and flexible yellow plate

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

0205M070

[ Open for more informations ] [ Fold up ]

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

0601M055

[ Open for more informations ] [ Fold up ]

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

A 3 points lashing strap for light vehicle

0601M050

[ Open for more informations ] [ Fold up ]

A 3 points lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 3000x50mm

A 6T ring of hauling welded front of the winch

0604M070

[ Open for more informations ] [ Fold up ]

A 6T ring of hauling welded front of the winch

Ten-heads stowage embedded in the floor for your chains (5 per side)

0604M050

[ Open for more informations ] [ Fold up ]

Ten-heads stowage embedded in the floor for your chains (5 per side)

Two 3T lashing rings articulated and welded on the floor (1 per side)

0604M080

[ Open for more informations ] [ Fold up ]

Two 3T lashing rings articulated and welded on the floor (1 per side)

Two 3T lashing rings articulated and integrated on the floor (1 per side)

0604M085

[ Open for more informations ] [ Fold up ]

Two 3T lashing rings articulated and integrated on the floor (1 per side)

Four 3T lashing rings articulated and welded on the floor (2 per side)

0604M090

[ Open for more informations ] [ Fold up ]

Four 3T lashing rings articulated and welded on the floor (2 per side)

Four 3T lashing rings articulated and integrated on the floor (2 per side)

0604M095

[ Open for more informations ] [ Fold up ]

Four 3T lashing rings articulated and integrated on the floor (2 per side)

Six 3T lashing rings articulated and welded on the floor (3 per side)

0604M100

[ Open for more informations ] [ Fold up ]

Six 3T lashing rings articulated and welded on the floor (3 per side)

Six 3T lashing rings articulated and integrated on the floor (3 per side)

0604M105

[ Open for more informations ] [ Fold up ]

Six 3T lashing rings articulated and integrated on the floor (3 per side)

Six 7T lashing rings articulated and welded on the floor (3 per side)

0604M106

[ Open for more informations ] [ Fold up ]

Six 7T lashing rings articulated and welded on the floor (3 per side)

Eight 3T lashing rings articulated and welded on the floor (4 per side)

0604M110

[ Open for more informations ] [ Fold up ]

Eight 3T lashing rings articulated and welded on the floor (4 per side)

Eight hitch hooks 7T welded on the floor of platform (4 per side)

0604M116

[ Open for more informations ] [ Fold up ]

Eight hitch hooks 7T welded on the floor of platform (4 per side)

Ten 7T lashing rings articulated and welded on the floor (5 per side)

0604M126

[ Open for more informations ] [ Fold up ]

Ten 7T lashing rings articulated and welded on the floor (5 per side)

Hanging systems straps welded under the top of the two sides for securing with straps

0604M140

[ Open for more informations ] [ Fold up ]

Hanging systems straps welded under the top of the two sides for securing with straps

Rear view camera in color with flat screen in the cabin

0803M010

[ Open for more informations ] [ Fold up ]

Rear view camera in color with flat screen in the cabin

Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin

0803M030

[ Open for more informations ] [ Fold up ]

Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin

Installation of an air intake in the hydraulic controls toolbox

1205M020

[ Open for more informations ] [ Fold up ]

Installation of an air intake in the hydraulic controls toolbox

Pneumatic reel (connected to the circuit) with 10m hose

1204M010

[ Open for more informations ] [ Fold up ]

Pneumatic reel (connected to the circuit) with 10m hose, pressure gauge in a toolbox already provided on the equipment

Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane

0301M015

[ Open for more informations ] [ Fold up ]

Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane

Painting of the stylized aluminum profiles in the wheelbase in a standard color

0313M220

[ Open for more informations ] [ Fold up ]

Painting of the stylized aluminum profiles in the wheelbase (painting of toolbox doors not included) in a standard color RAL=

Painting of a tool box door or the control box (unit price)

0313M230

[ Open for more informations ] [ Fold up ]

Painting of a tool box door or the control box (unit price) (multiply by the number of boxes to be painted) in a standard color same as the body

Stylized polyester body in the wheelbase (for chassis cab from 10T to 19T)

0301M020

[ Open for more informations ] [ Fold up ]

Stylized polyester body in the wheelbase with rear fenders in polyurethane (for chassis cab from 10T to 19T) painted in a RAL color standard =

tylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T)

0301M030

[ Open for more informations ] [ Fold up ]

Stylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T, with tool box only opening from above behind the aluminum body) painted in a standard color RAL =

A winch spare wheel

0308M010

[ Open for more informations ] [ Fold up ]

A winch spare wheel holder secured to the side of the chassis

A hydraulically expandable tow hook for equipment PLAT'FIX 2+3

0508M170

[ Open for more informations ] [ Fold up ]

A hydraulically expandable tow hook for equipment PLAT'FIX 2+3

A Rockinger tow hook for a trailer with a Ø 50 ring installed on a fixed crosstie at the rear of the equipment

0508M080

[ Open for more informations ] [ Fold up ]

A Rockinger tow hook for a trailer with a Ø 50 ring installed on a fixed crosstie at the rear of the equipment

Two PUSH-PULL hydraulic power outlets located at the rear of the chassis with an additional hydraulic distributor and 2 flexible hoses for a trailer power supply

0509M010

[ Open for more informations ] [ Fold up ]

Two PUSH-PULL hydraulic power outlets located at the rear of the chassis with an additional hydraulic distributor and 2 flexible hoses for a trailer power supply

Stacking system for a 6th car with hinge on the back of the cab and rear lift with 2 hydraulics cylinders and an additional adjustment of length following the wheelbase of the vehicle

0511M120

[ Open for more informations ] [ Fold up ]

Stacking system for a 6th car with hinge on the back of the cab and rear lift with 2 hydraulics cylinders and an additional adjustment of length following the wheelbase of the vehicle with a hydraulic central cylinder by remote control and combined with 2 floor pits hinged and lowered with 2 hydraulics cylinders controlled on manual distributors (on 26T chassis cab)

Synchronized manual lowering of anti-fall posts on two sides (on Plat'Fix)

0511M130

[ Open for more informations ] [ Fold up ]

Synchronized manual lowering of anti-fall posts on two sides (on Plat'Fix)

PTO for heavy vehicle not original fitted

1003M030

[ Open for more informations ] [ Fold up ]

PTO for heavy vehicle not original fitted

White reflective tape on the edge of the platform

0801M010

[ Open for more informations ] [ Fold up ]

White reflective tape on the edge of the platform

Orange reflective tape on the edge of the platform

0801M020

[ Open for more informations ] [ Fold up ]

Orange reflective tape on the edge of the platform

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

0707M010

[ Open for more informations ] [ Fold up ]

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

Configurator
[ Open ]
PLAT'FIX 2+2

PLAT'FIX 2+2

00-PF2+2

Generate the summary sheet

Fiche récapitulative

In order to generate your summary sheet, please fill in this contact form. We will contact you as soon as possible.
