On chassis cab : 15T to 19T
(Fitted on a PTO, a pin tow plug, a spare wheel and pneumatic rear suspension)

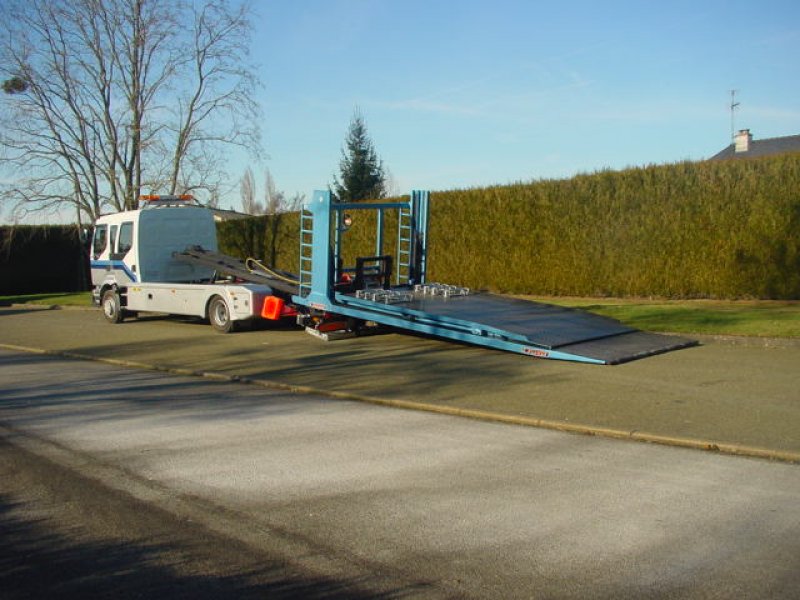

PLAT'SOL PF65 1+1 : SLIDING DECK CAR TRANSPORTER WITH CENTRE CHAIN
-Tilt and slide load platform with centre chain and low loading angle approximately 5°
-Deck slides on reinforced galvanised steel rails
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two pistons with anti return security locks for raising or lowering deck
-Sliding of deck with chain via hydraulic actuator
-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side (or left)
-Integrated shock proof wheel arches with mud guards
-Two adjustable rear roller type stabilisers
-Modular galvanised, anti slip 4mm bed type "CAILLEBOTIS", 50mm tubular sides and wedging holes over the entire length (no paint on deck) for inferior and superior platform
-Bar to protect the cabin with two rubber stops

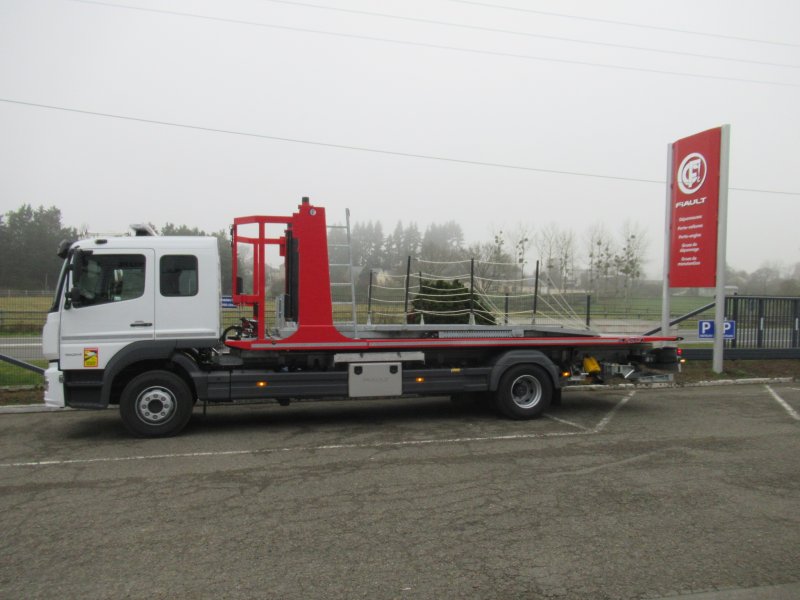

-Type 3 half-stage with elevation of the front part with 2 hydraulic cylinders and chains in 2 vertical posts and elevation of the rear part with 2hydraulic cylinders. Front and rear height adjustments in all positions with mechanical locks at the front and mechanical locks at the rear ends. Detachable anti-fall posts (weight = 1200 kg)
-A 4.5 tons hydraulic winch with 30m Ø10 cable with guide
-Four adjustable wheel clamps on inferior bed
-Four adjustable wheel clamps on superior bed
-Front face and sides of deck painted, color to define RAL :
-White reflective tape on the edge of the platform
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior lower bed length = 5500 mm to 6500 mm
Exterior upper bed length = 4500 mm
Exterior bed width = 2400 mm to 2500 mm (to define)
Technical capacity = 6500 Kg
Loading angle = 5° (approx)
Payload = to calculate according to the chassis cab
Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.
PLAT'SOL PF65
00-PF65
[ Open for more informations ] [ Fold up ]
PLAT'SOL PF65 : SLIDING DECK CAR TRANSPORTER WITH CENTRE CHAIN
-Tilt and slide load platform with centre chain and low loading angle approximately 5°
-Deck slides on reinforced galvanised steel rails
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two pistons with anti return security locks for raising or lowering deck
-Sliding of deck with chain via hydraulic actuator
-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side (or left)
-Integrated shock proof wheel arches with mud guards
-Two adjustable rear roller type stabilisers
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5500 mm to 6500 mm
Exterior bed width = 2400 mm
Technical capacity = 6500 Kg
Loading angle = 5° (approx)
Payload = to calculate according to the chassis cab
Half-stage type 3
0511M060
[ Open for more informations ] [ Fold up ]
Type 3 half-stage with elevation of the front part with 2 hydraulic cylinders and chains in 2 vertical posts and elevation of the rear part with 2hydraulic cylinders. Front and rear height adjustments in all positions with mechanical locks at the front and mechanical locks at the rear ends. Detachable anti-fall posts (weight = 1200 kg)
Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 50mm tubular sides
0309M111
[ Open for more informations ] [ Fold up ]
Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 50mm tubular sides and wedging holes over the entire length replacing the deck modular galvanised, 4mm bed type CAILLEBOTIS
An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars
0502M180
[ Open for more informations ] [ Fold up ]
An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars (without trolley) (on equipment excluding 4x4)
A special motorcycle wedge with an articulated and adjustable shoe
0503M010
[ Open for more informations ] [ Fold up ]
A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment

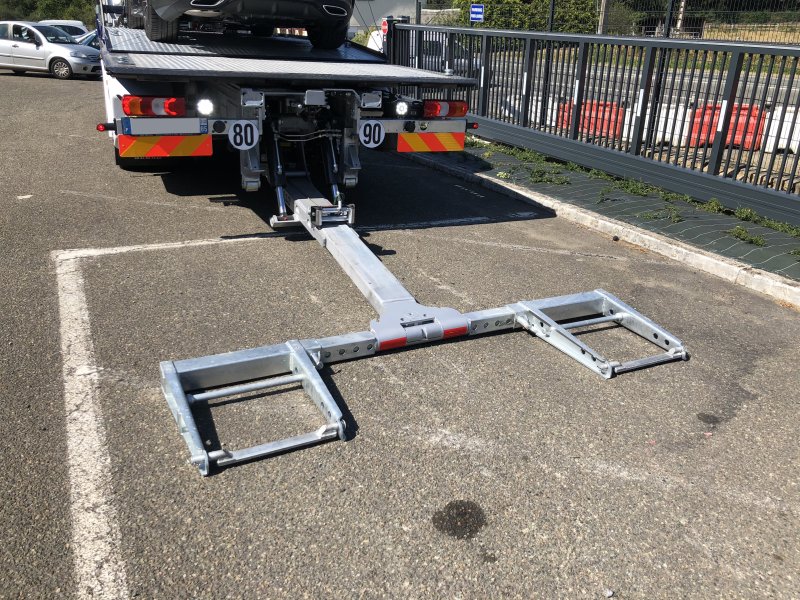

A 3 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm
0504M020
[ Open for more informations ] [ Fold up ]
A 3 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck
A 3 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm
0504M080
[ Open for more informations ] [ Fold up ]
A 3 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm, removeable and adjustable galvanised lift forks, crane head with pulley and two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck
A 4 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation
0504M040
[ Open for more informations ] [ Fold up ]
A 4 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, 4 chassis and axle lift forks, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck (weight = 450 Kg)
A 4 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation
0504M100
[ Open for more informations ] [ Fold up ]
A 4 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm, removeable and adjustable galvanised lift forks, 4 chassis and axle lift forks, crane head with pulley and two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck
A removable part adaptable to the Second Car Carrier with 2 pins and vertical spades for planting in the ground by lowering the Second Car Carrier
0504M150
[ Open for more informations ] [ Fold up ]
A removable part adaptable to the Second Car Carrier SCC with 2 pins and vertical spades for planting in the ground by lowering the Second Car Carrier with a support on the equipment and replacing the single-acting valve with a double-acting valve for the lifting cylinders of the SCC
A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, fitted on the second car carrier
1103M090
[ Open for more informations ] [ Fold up ]
A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, fitted on the second car carrier SCC with a remote control coupled with the winch of the plateform. An adaptable towing hook on the Second Car Carrier SCC with 2 pins
Two aluminum ramps 1250x500 mm adaptable at the end of the platform to allow the overflow of the wheels of the transported vehicle with a support under the equipment
0506M030
[ Open for more informations ] [ Fold up ]
Two aluminum ramps 1250x500 mm adaptable at the end of the platform to allow the overflow of the wheels of the transported vehicle with a support under the equipment
Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin
0803M030
[ Open for more informations ] [ Fold up ]
Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
0301M015
[ Open for more informations ] [ Fold up ]
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
tylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T)
0301M030
[ Open for more informations ] [ Fold up ]
Stylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T, with tool box only opening from above behind the aluminum body) painted in a standard color RAL =

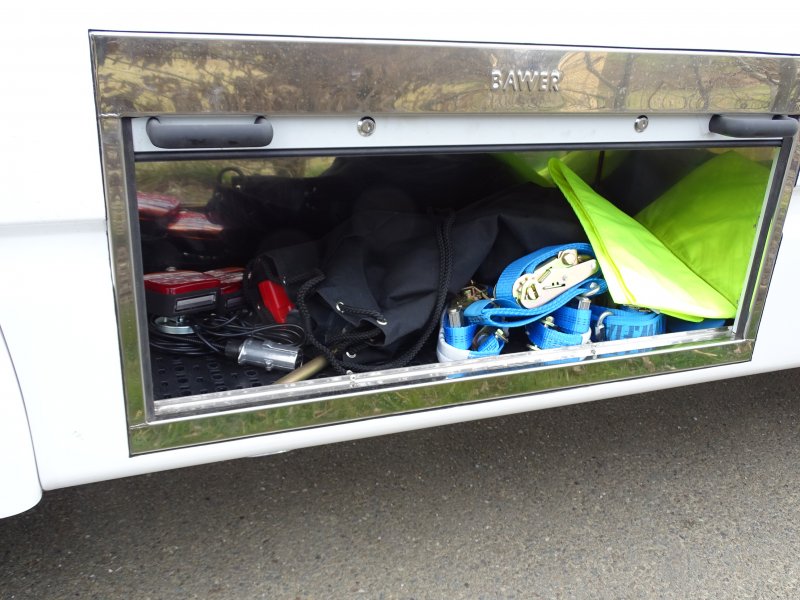

Polyester rear overhang (without wings) with a box for the hydraulic controls at the right rear and a tool box at the left rear
0301M050
[ Open for more informations ] [ Fold up ]
Polyester rear overhang (without wings) with a box for the hydraulic controls at the right rear and a tool box at the left rear with hinged doors (for chassis from 10T to 32T), painted in a standard color (not metallic) same as body

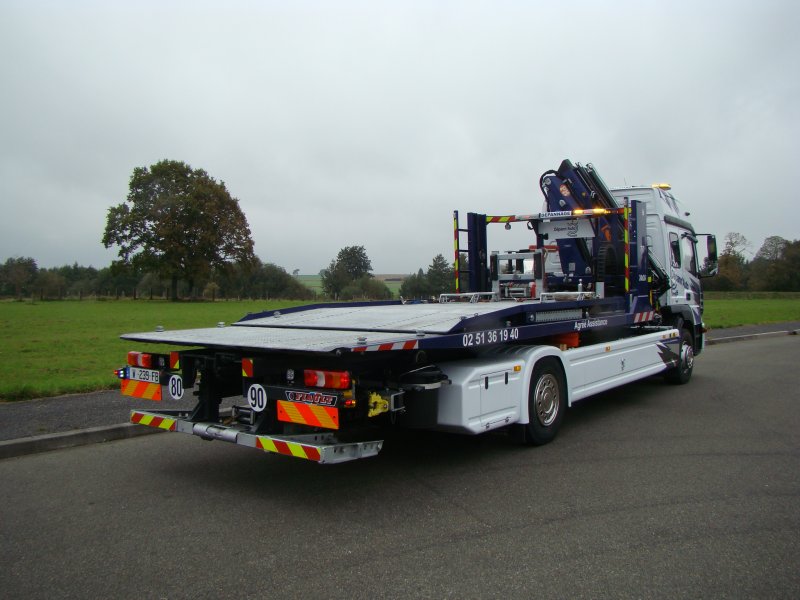

Supply and installation of a hydraulic crane behind the cabin
0607M130
[ Open for more informations ] [ Fold up ]
Supply and installation of a hydraulic crane behind the cabin (capacity of the crane to define) with manufacture of a special subframe with side fixing plates and connection to the hydraulic circuit of the equipment without valve using a special variable hydraulic distributor, electrical connections, set-up, adjustments and acceptance of conformity by us
