Maxilift PF3000 Toyota Hilux Space Cab

Maxilift PF3000 Toyota Hilux Space Cab

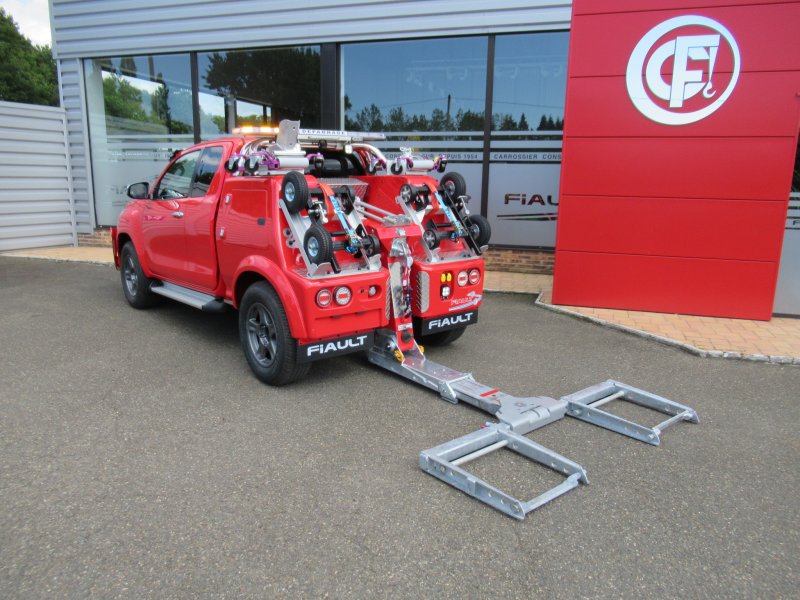

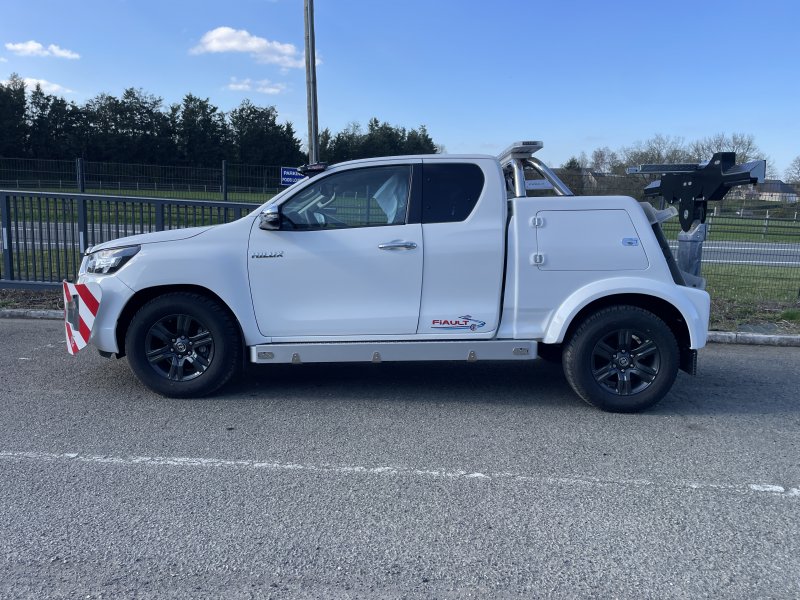

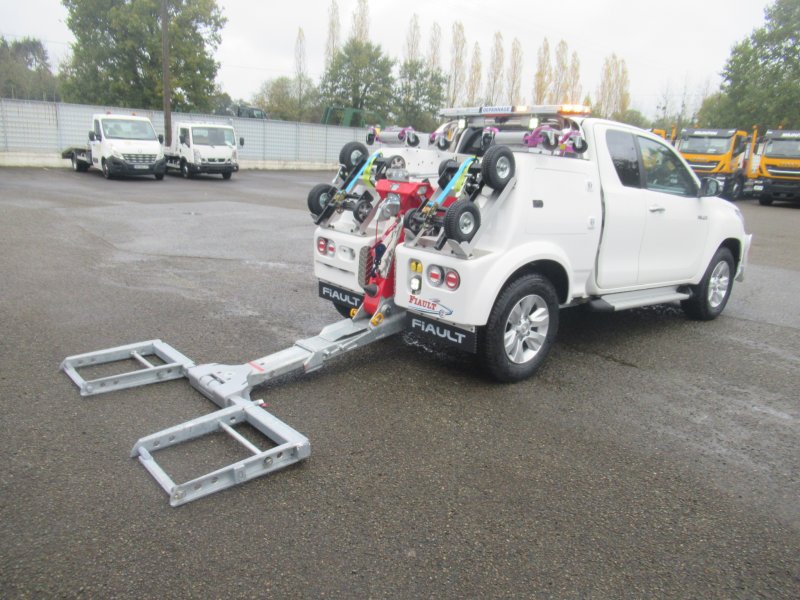

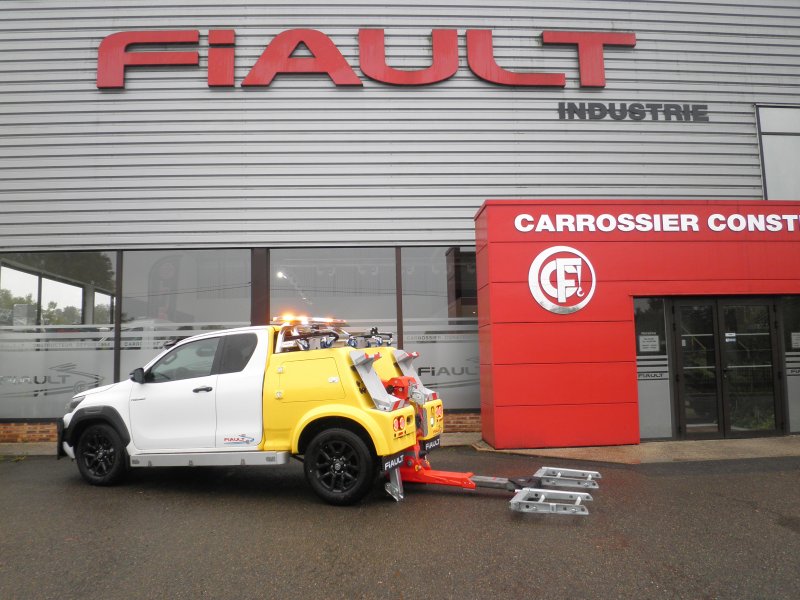

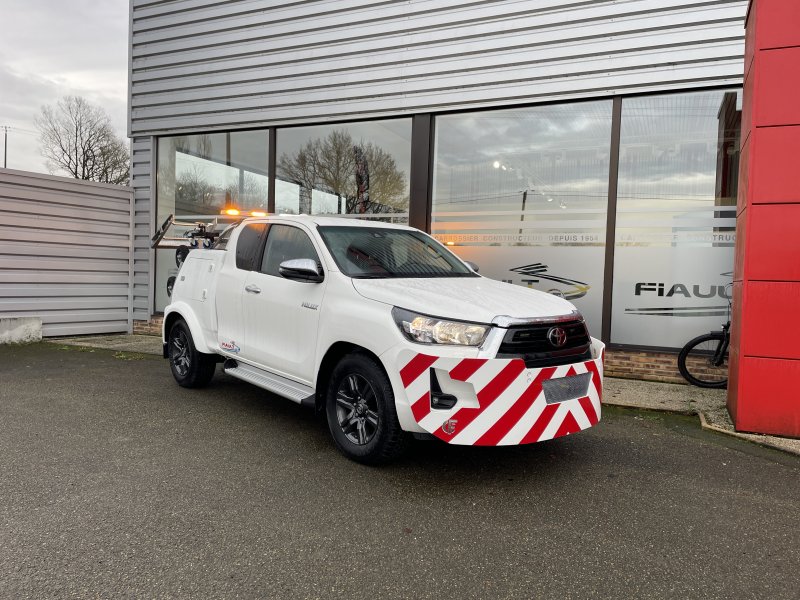

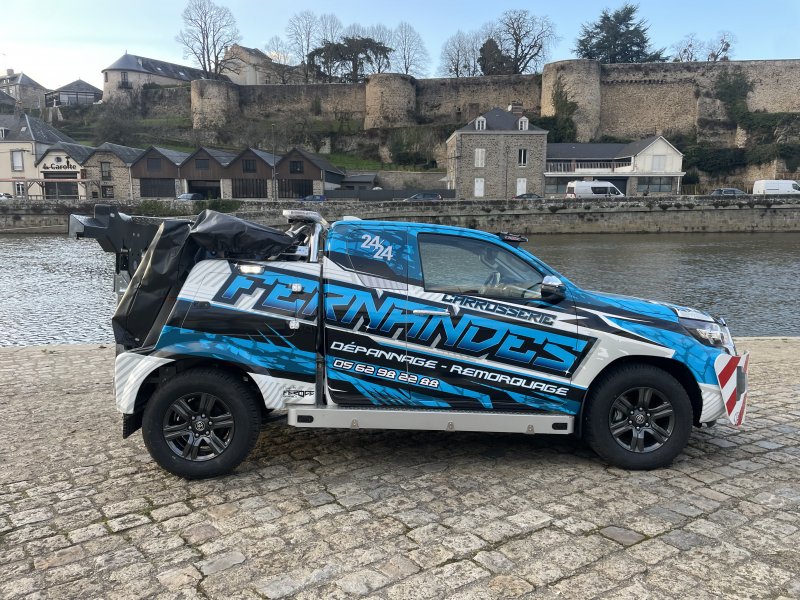

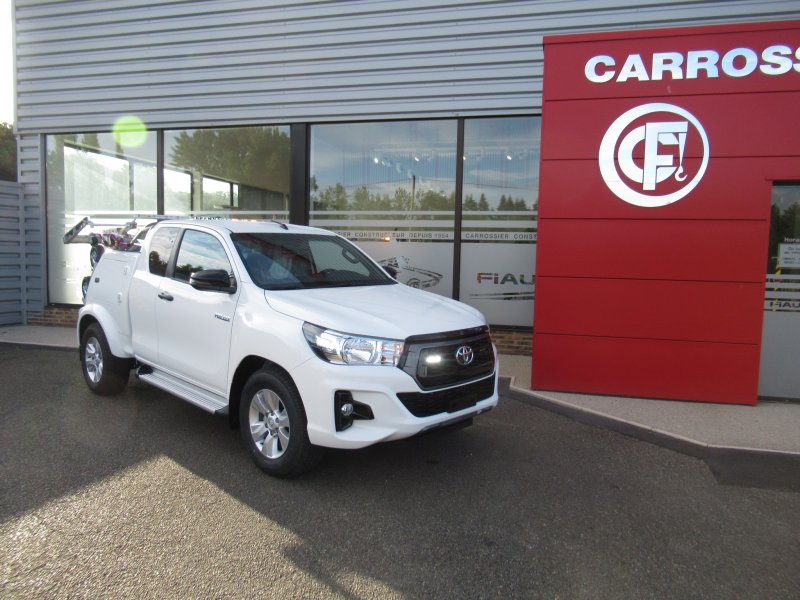

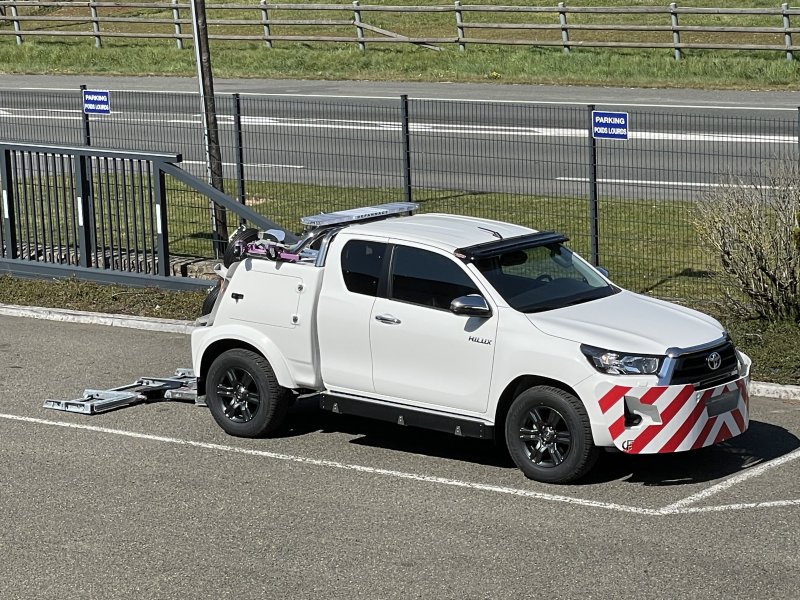

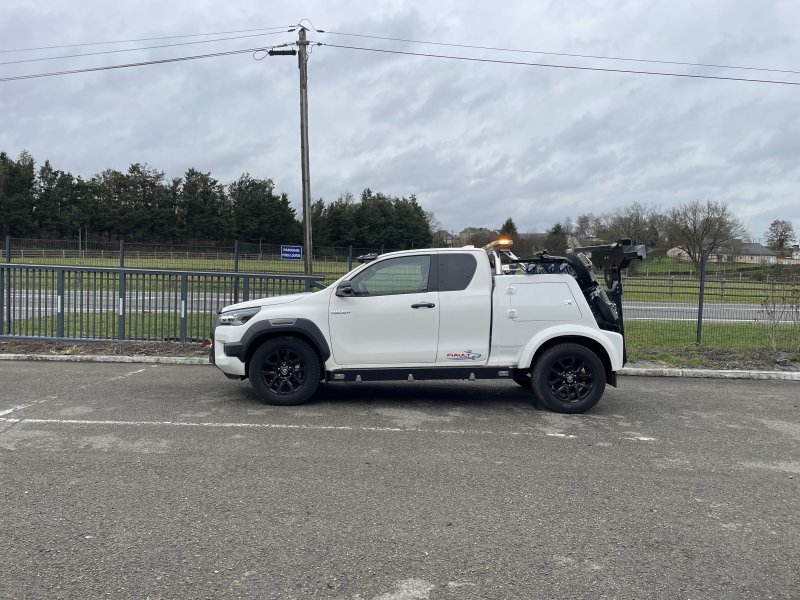

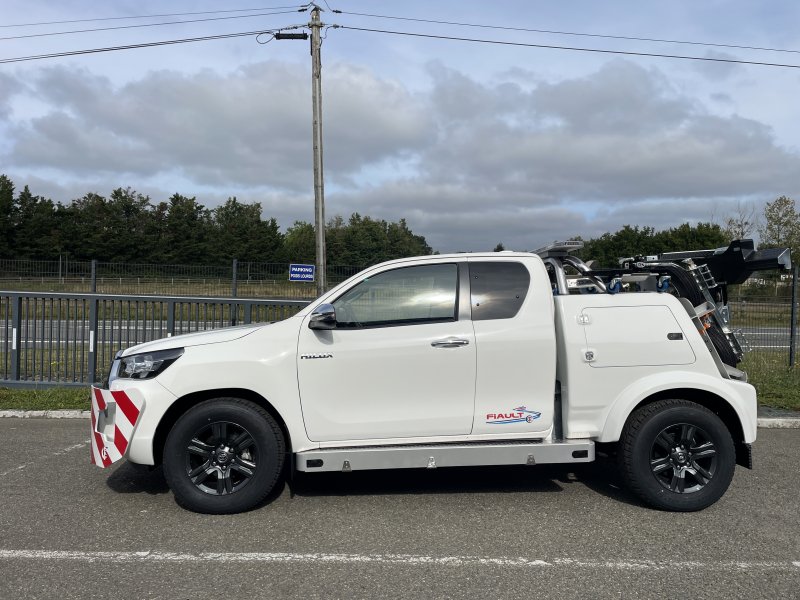

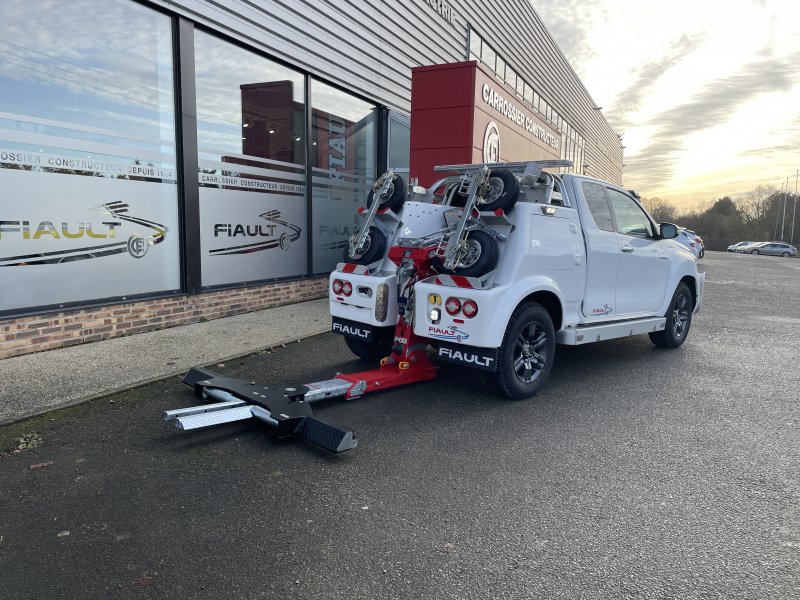

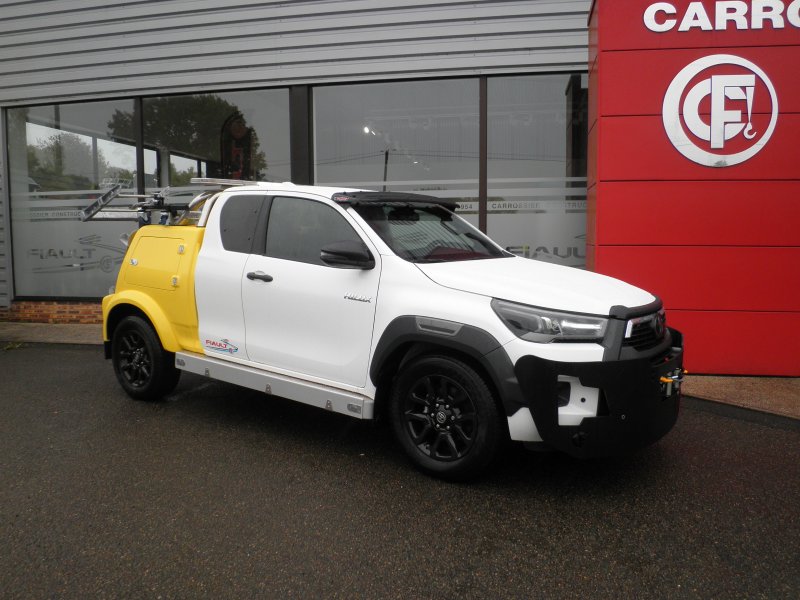

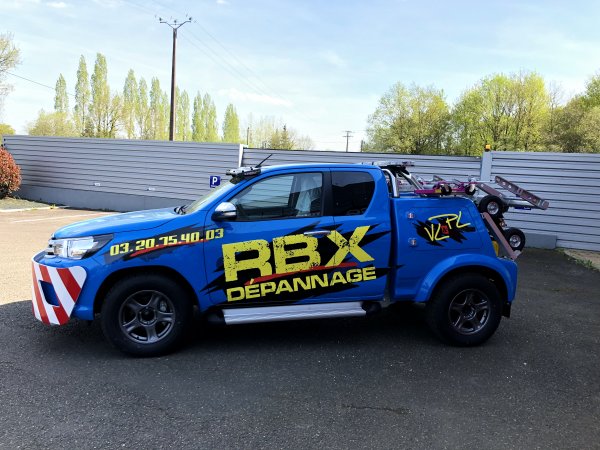

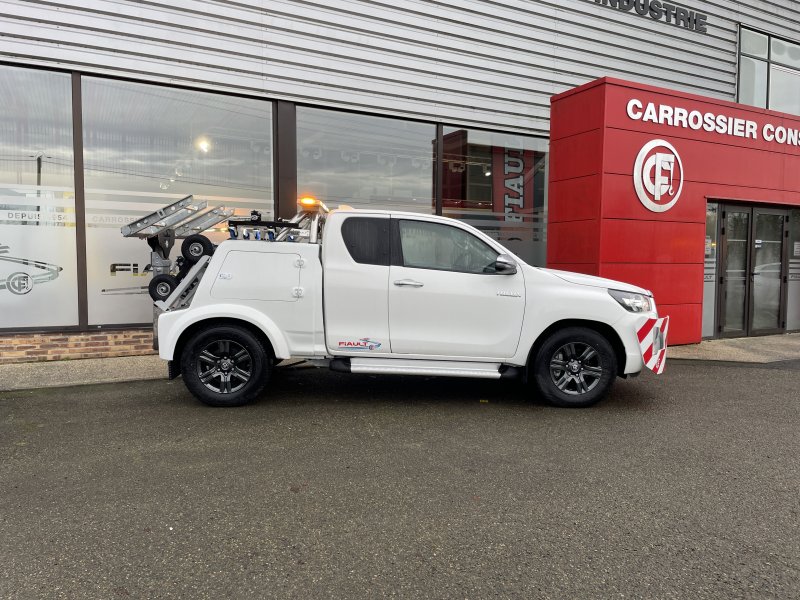

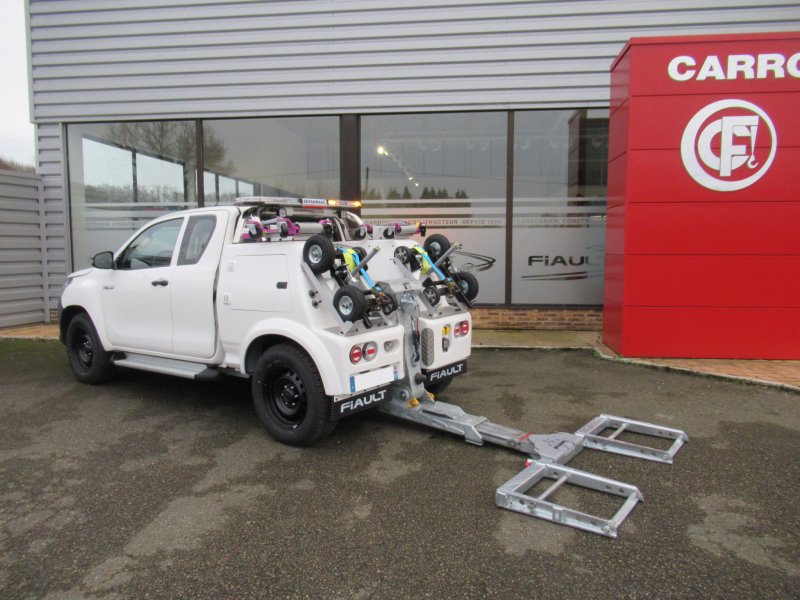

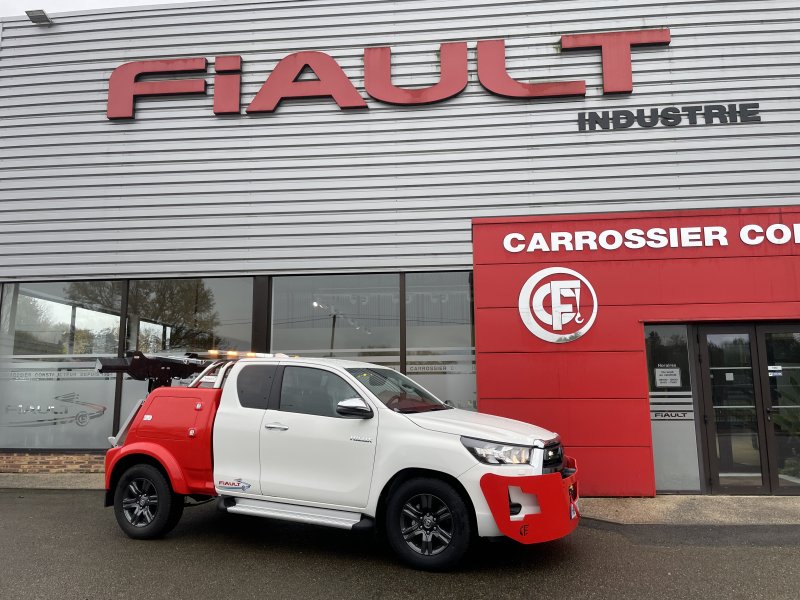

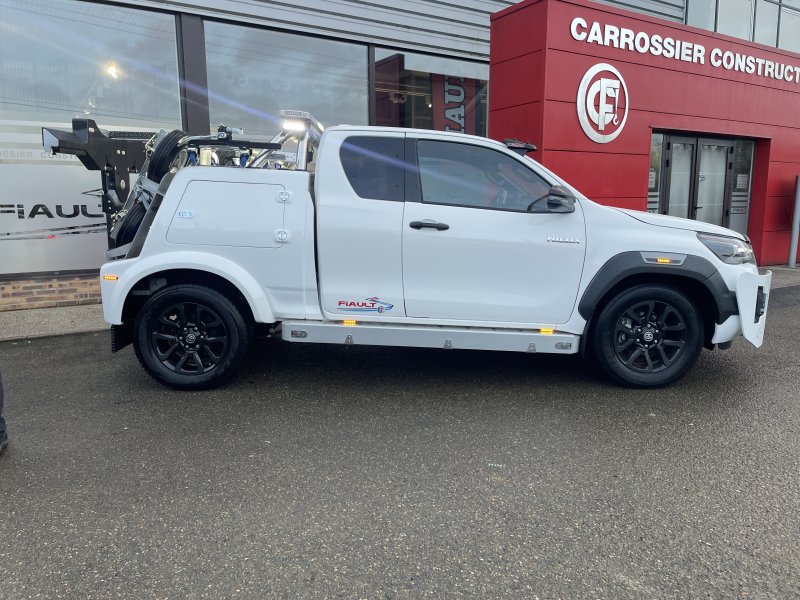

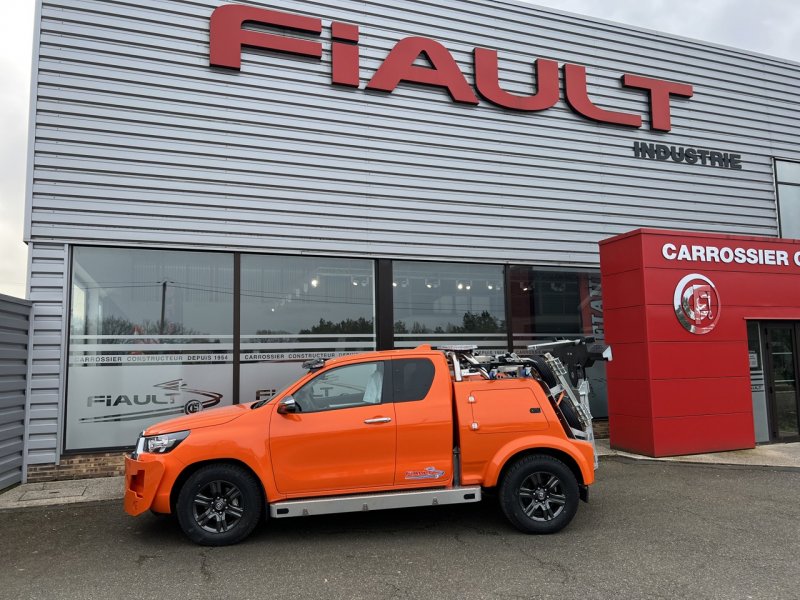

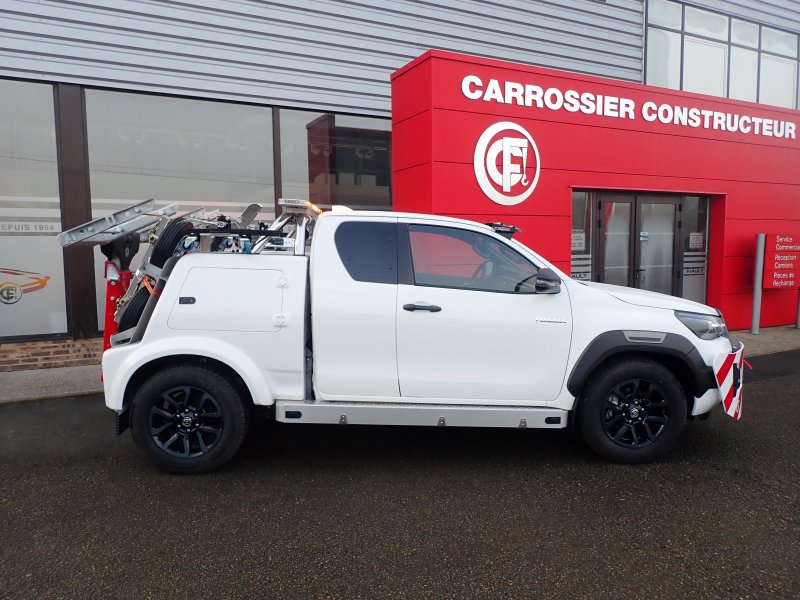

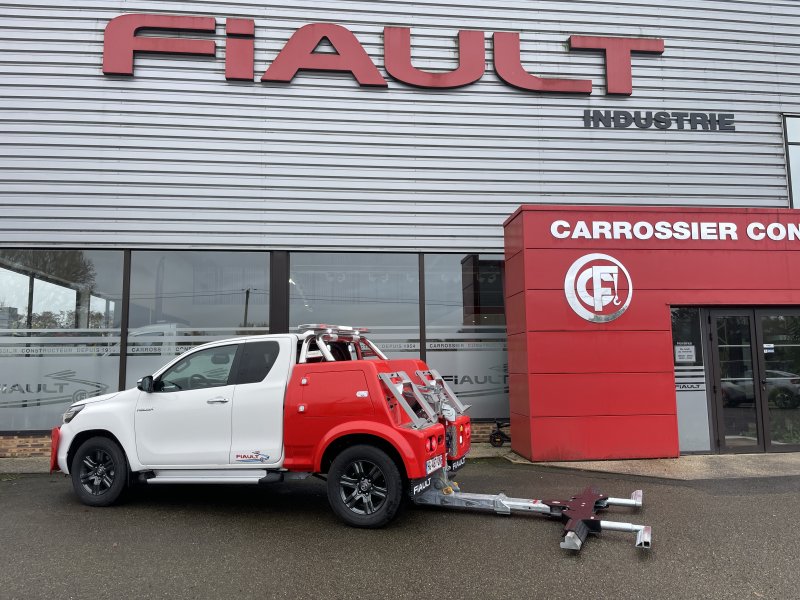

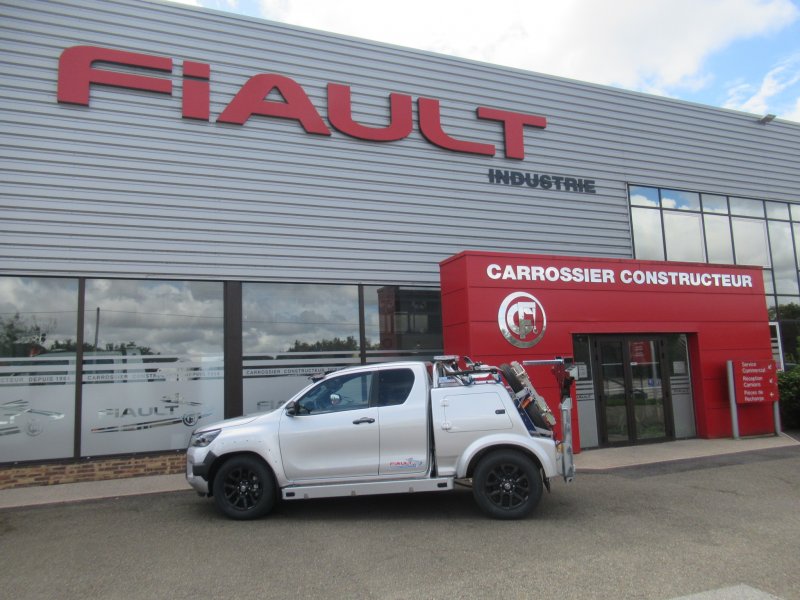

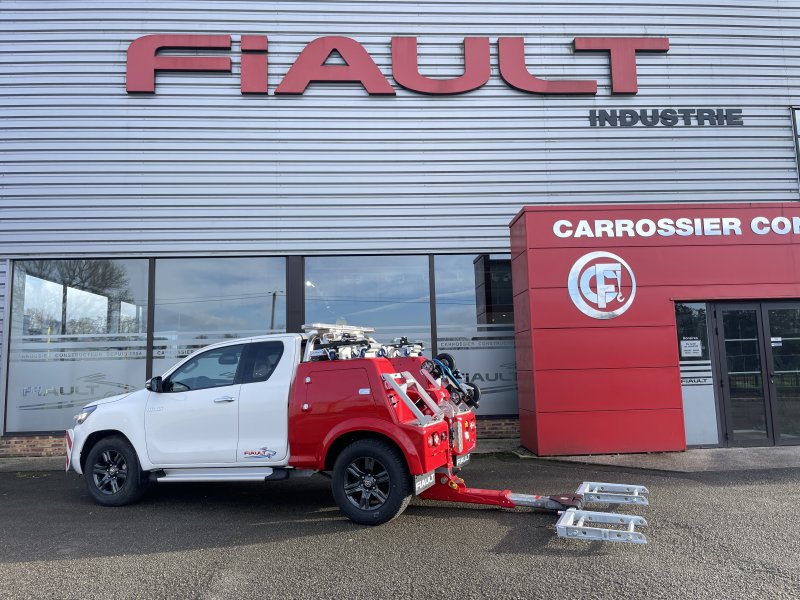

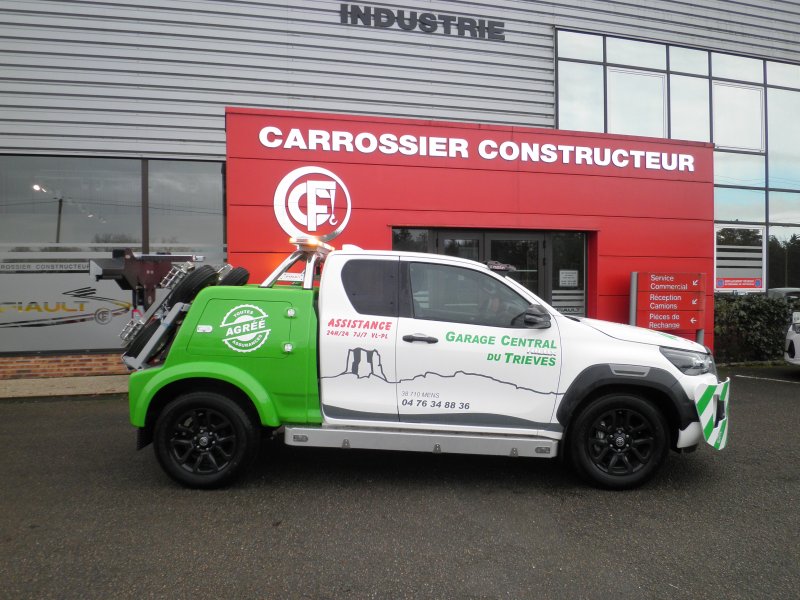

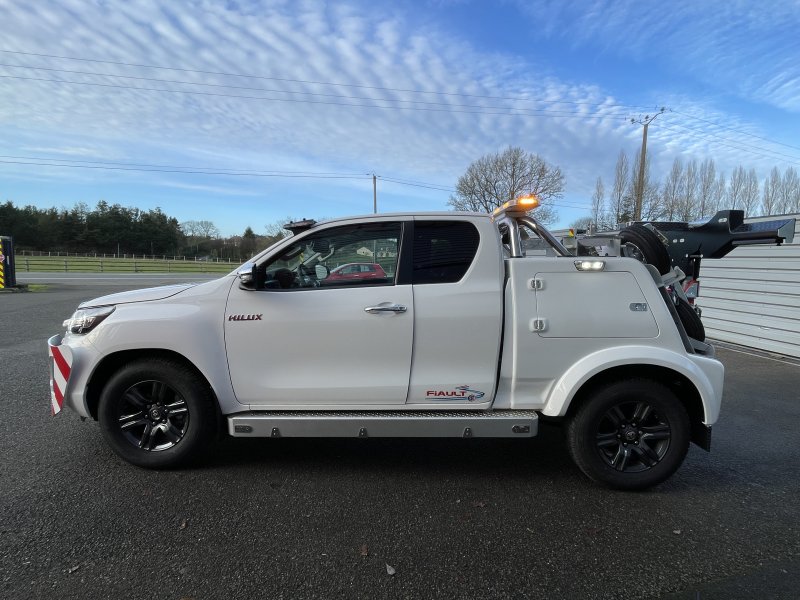

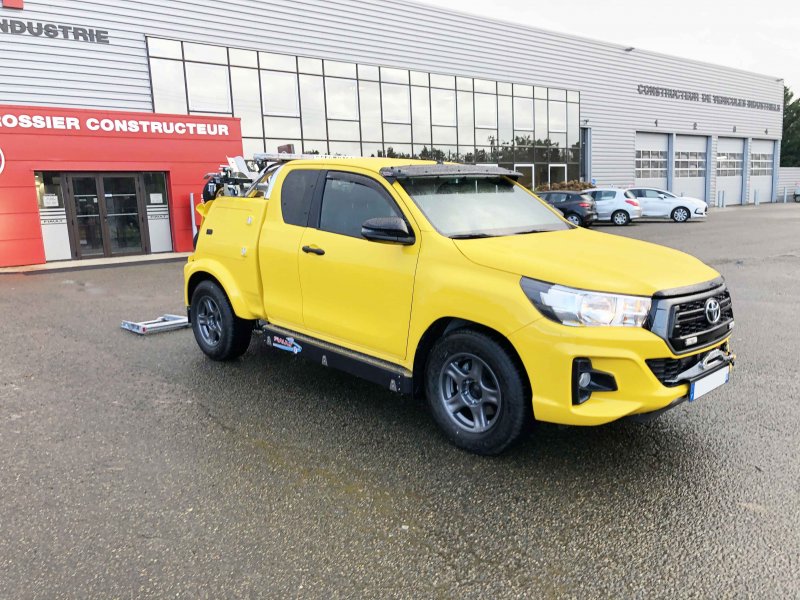

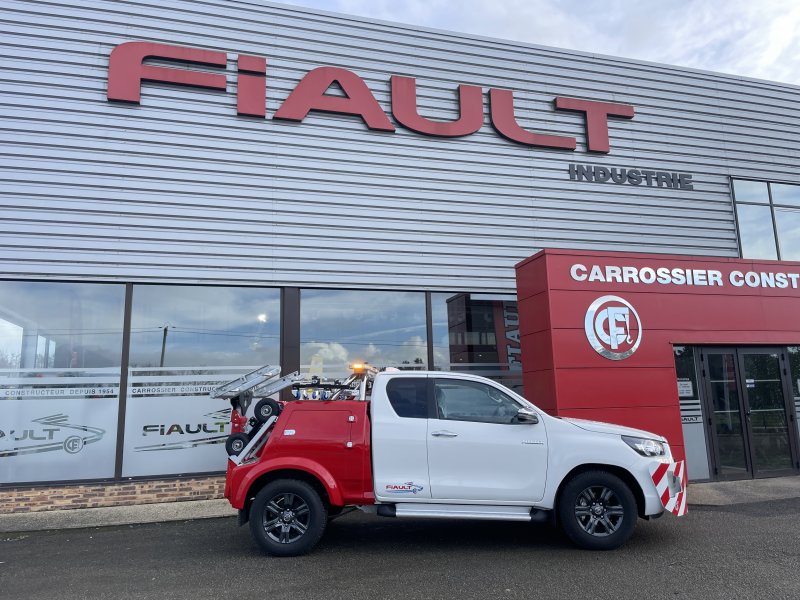

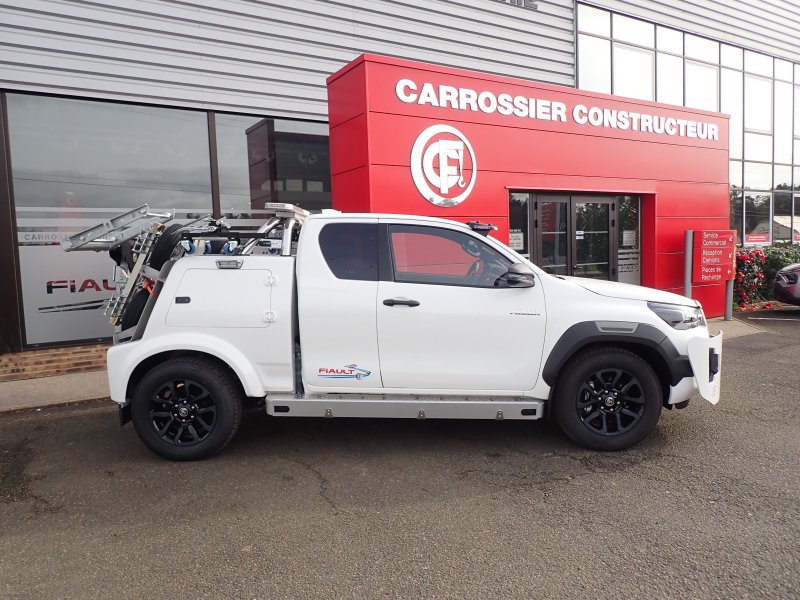

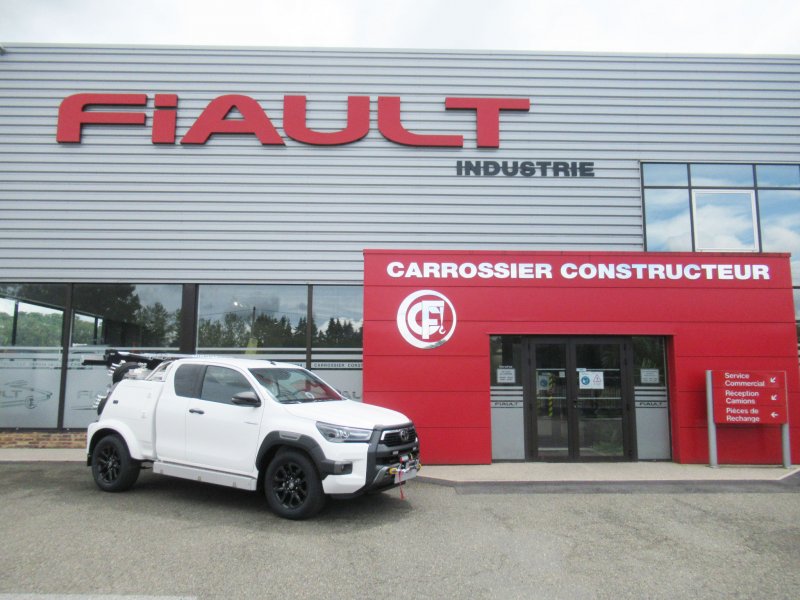

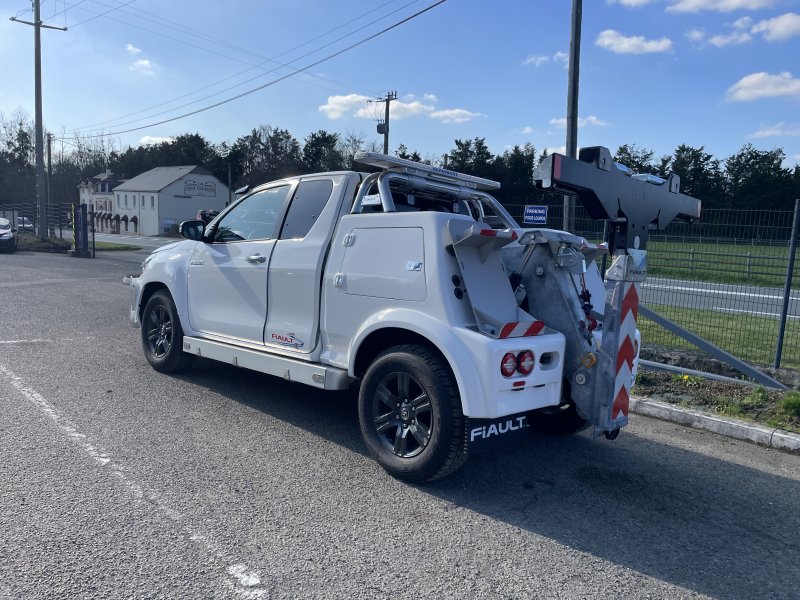

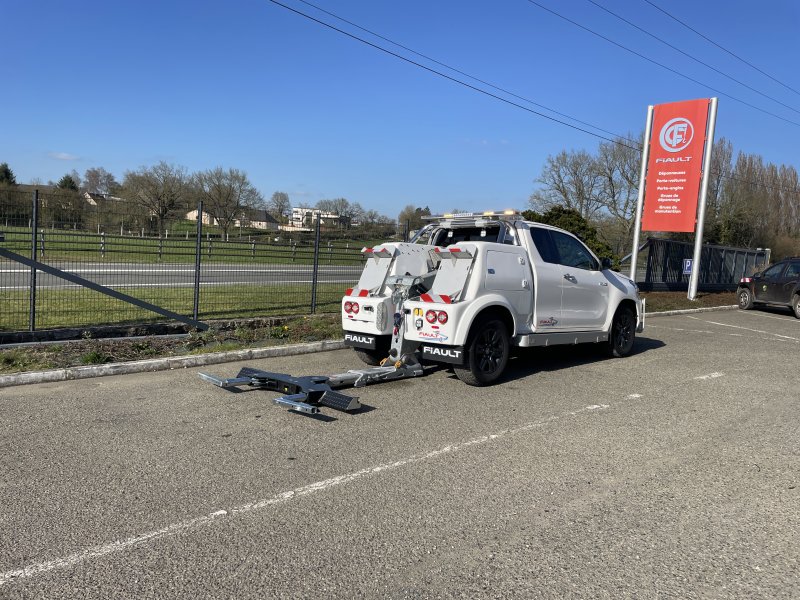

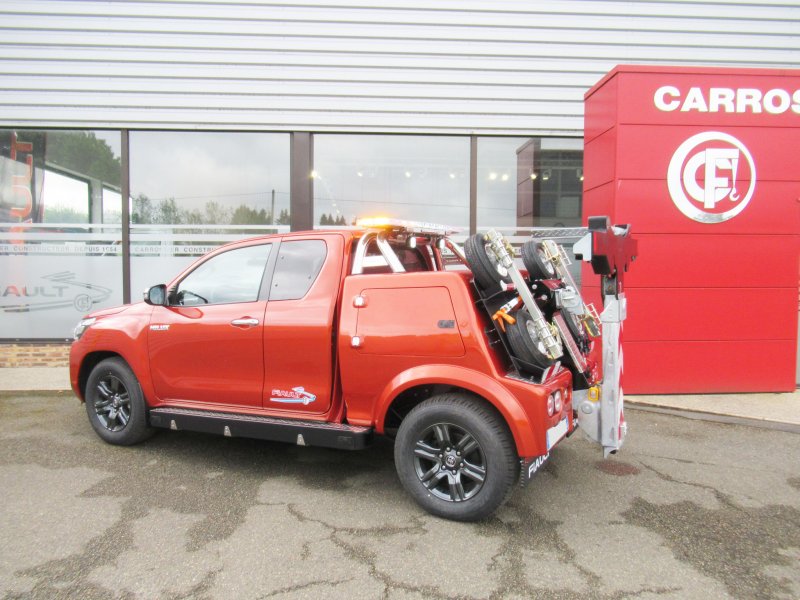

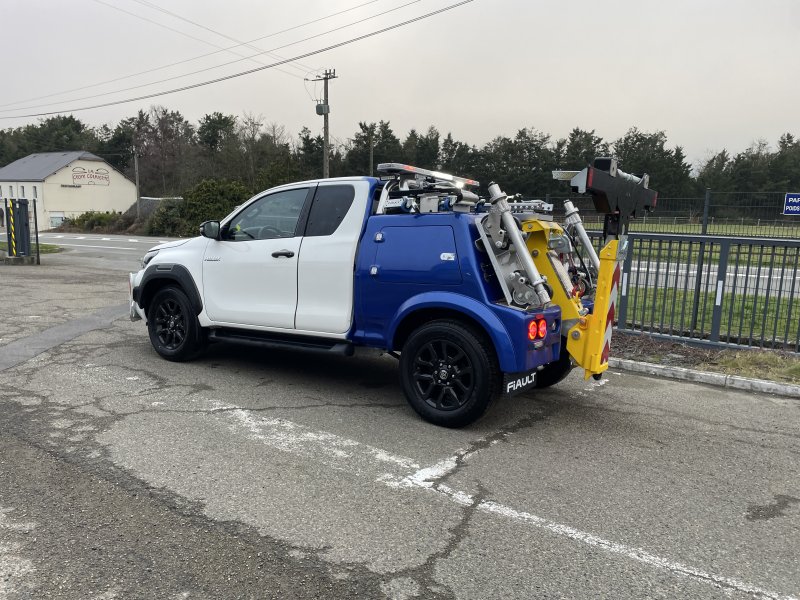

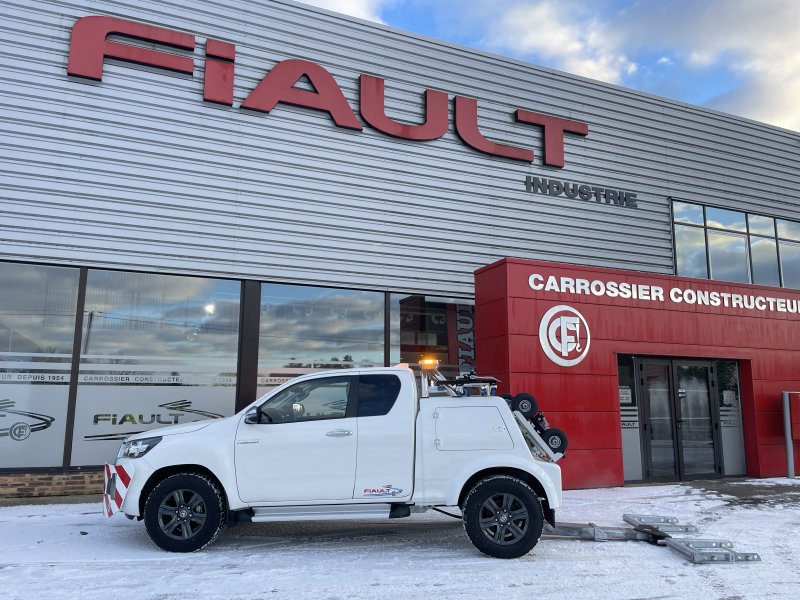

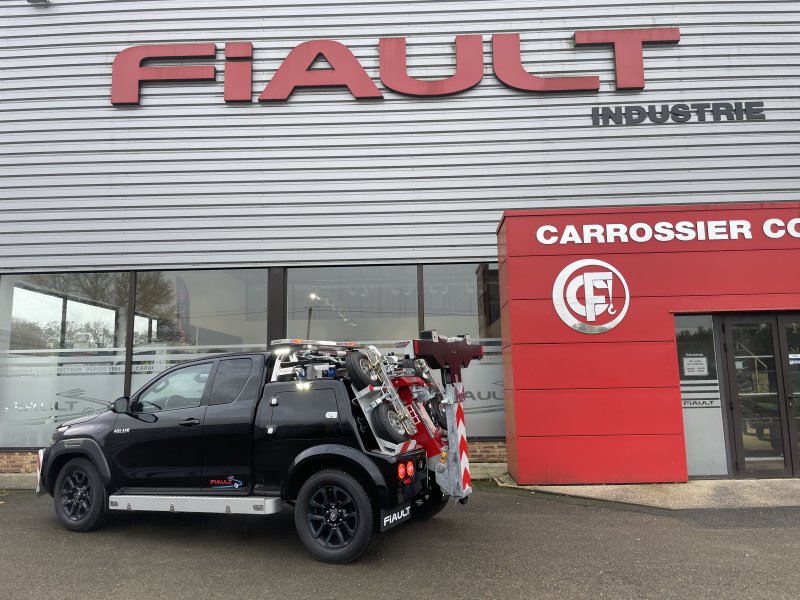

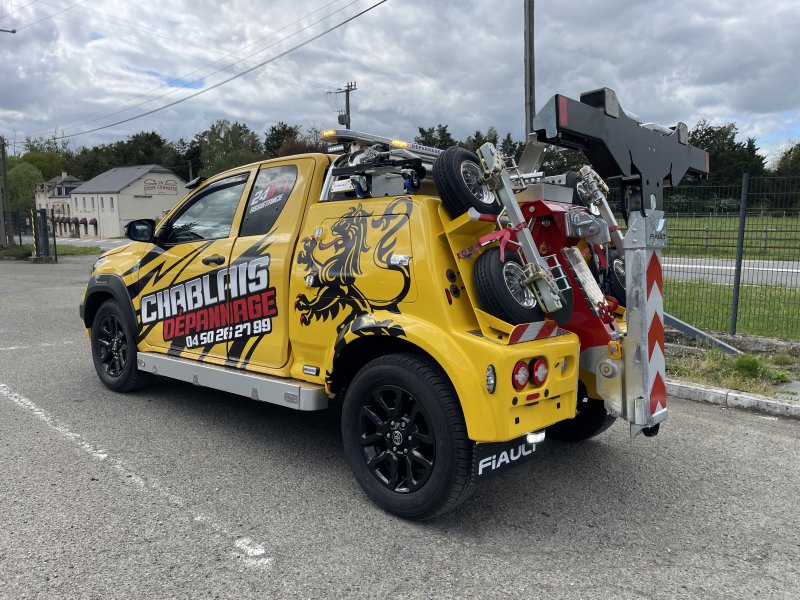

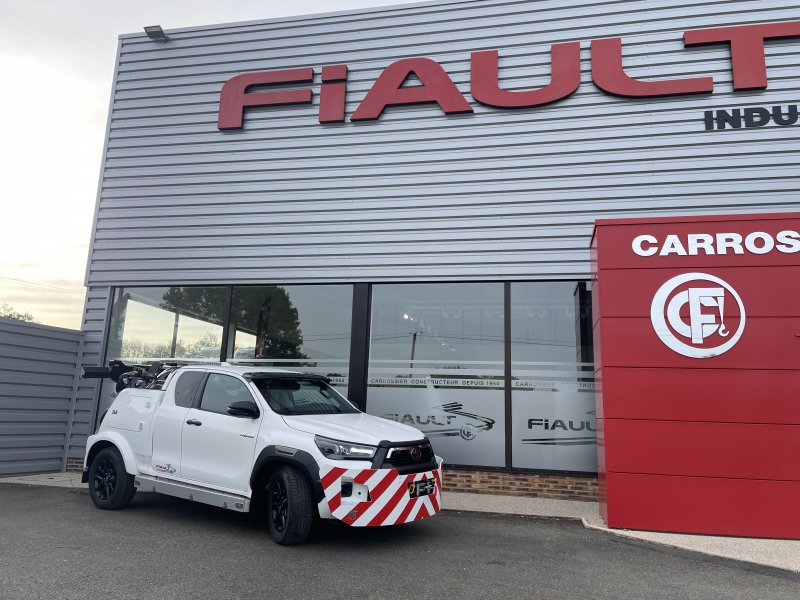

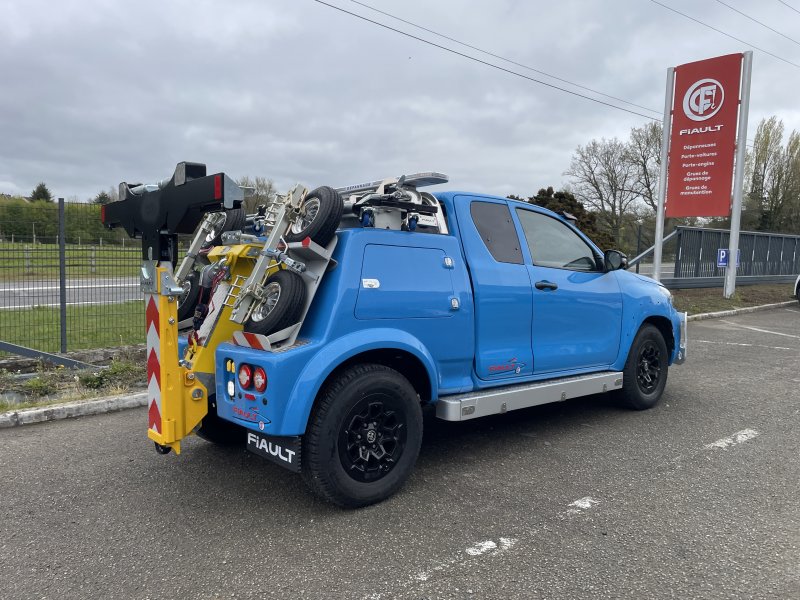

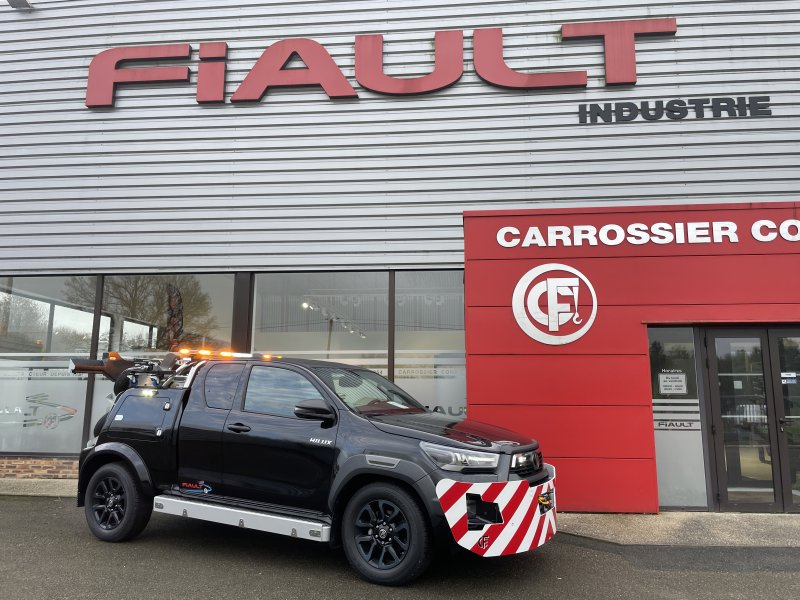

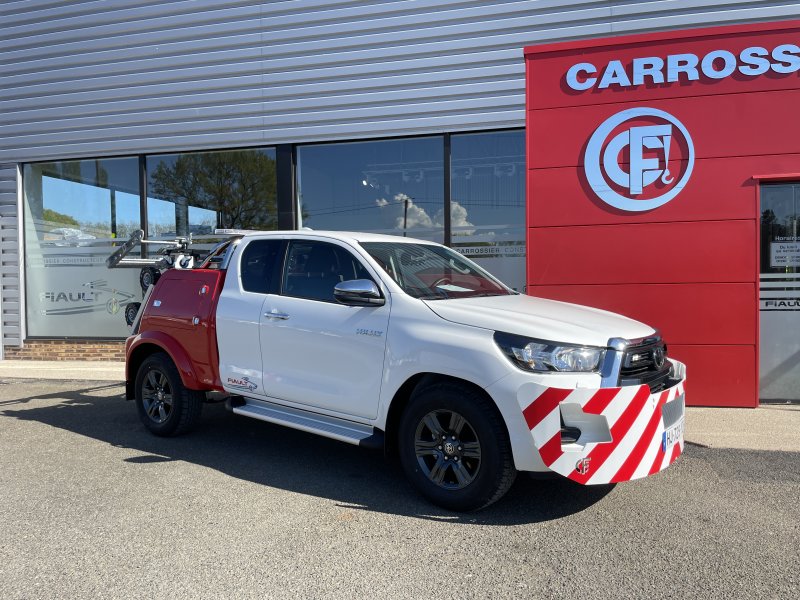

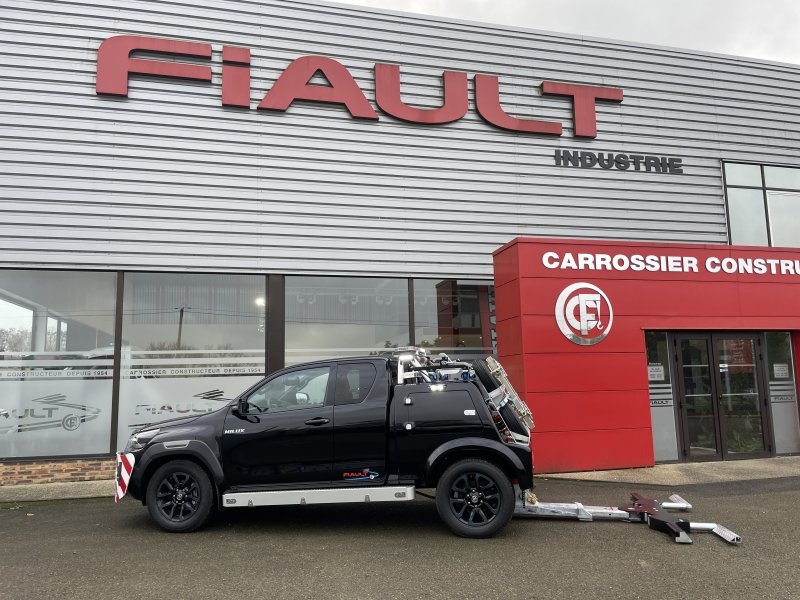

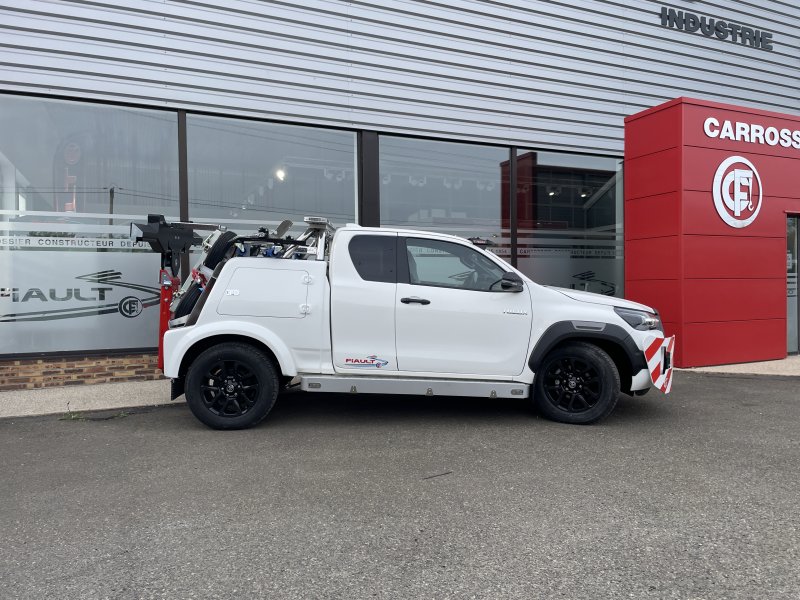

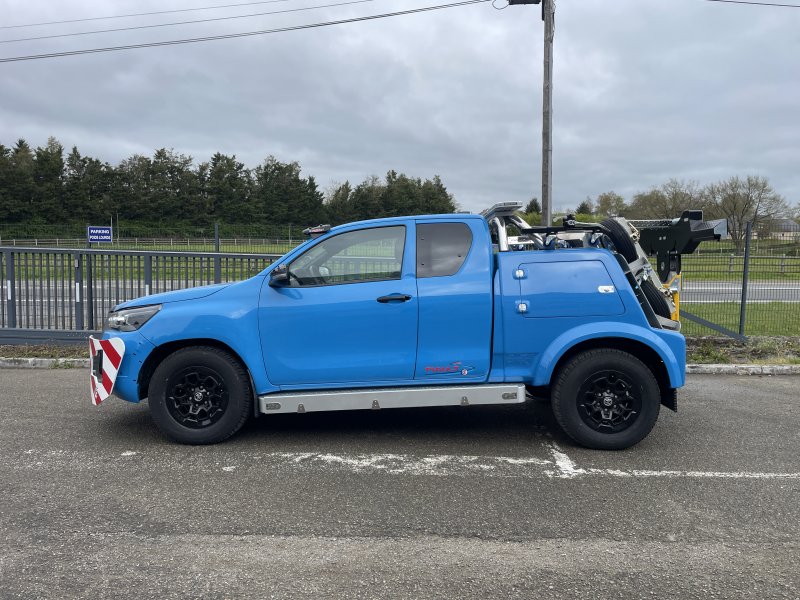

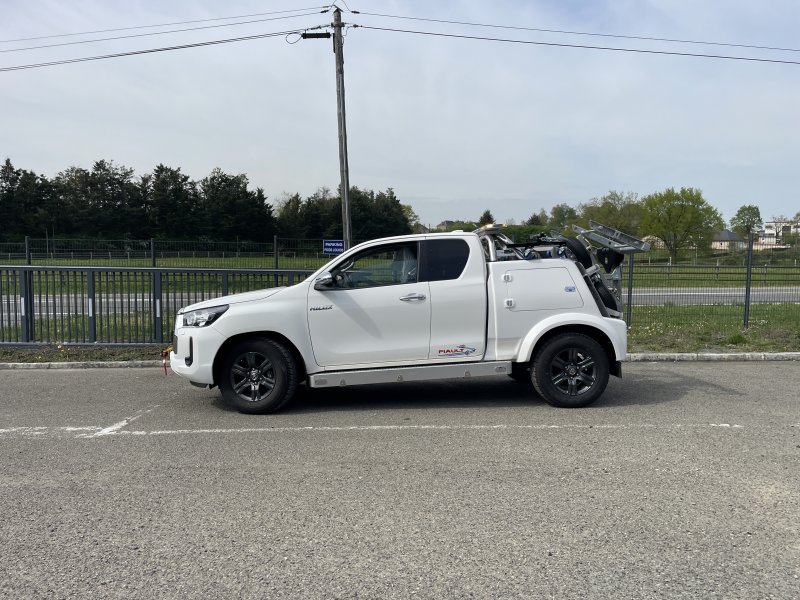

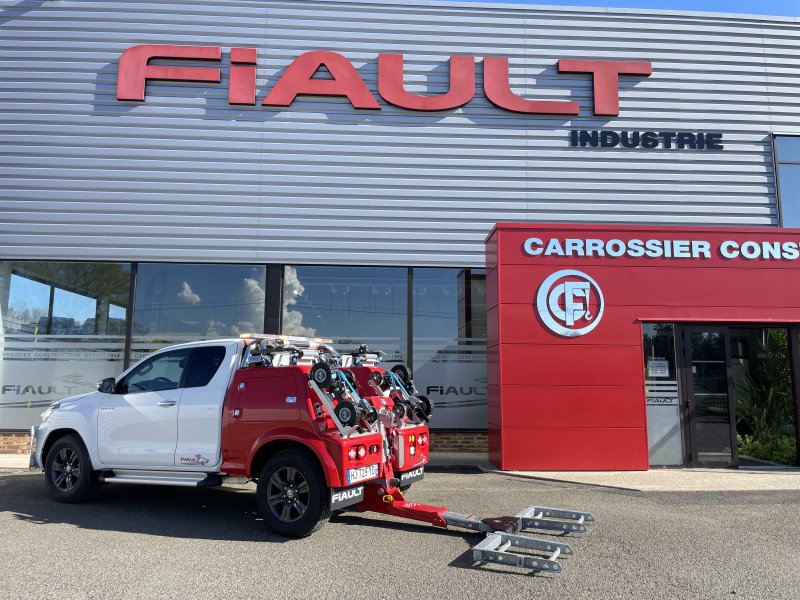

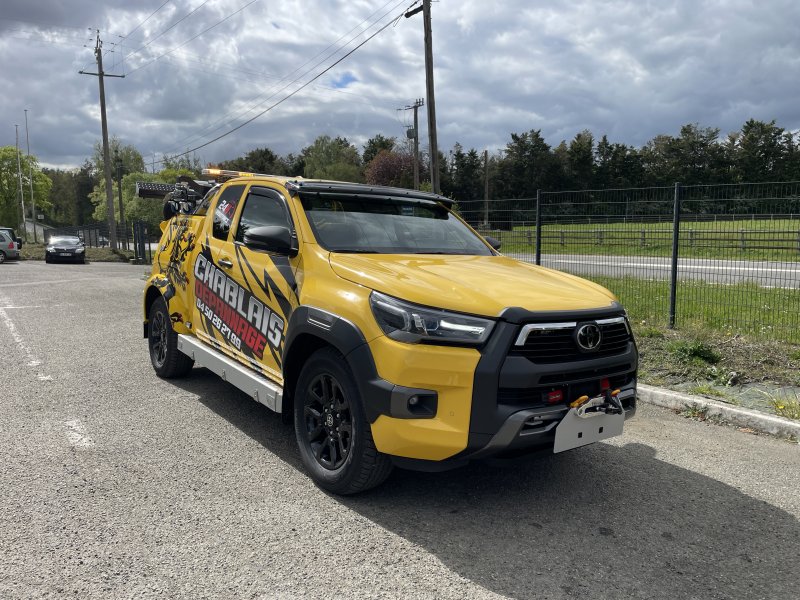

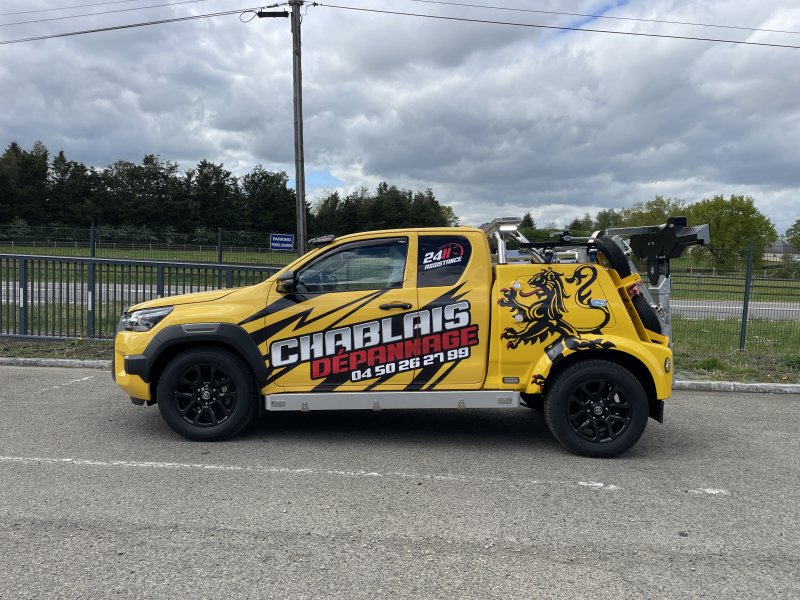

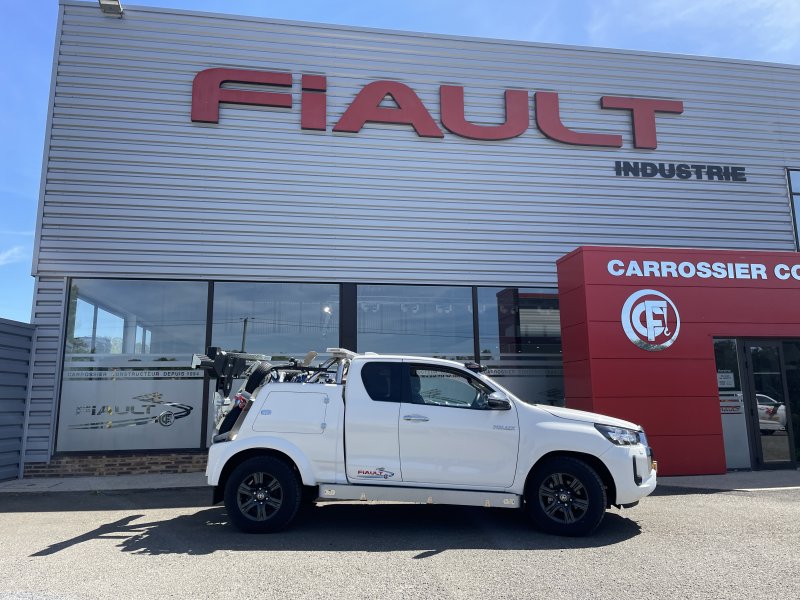

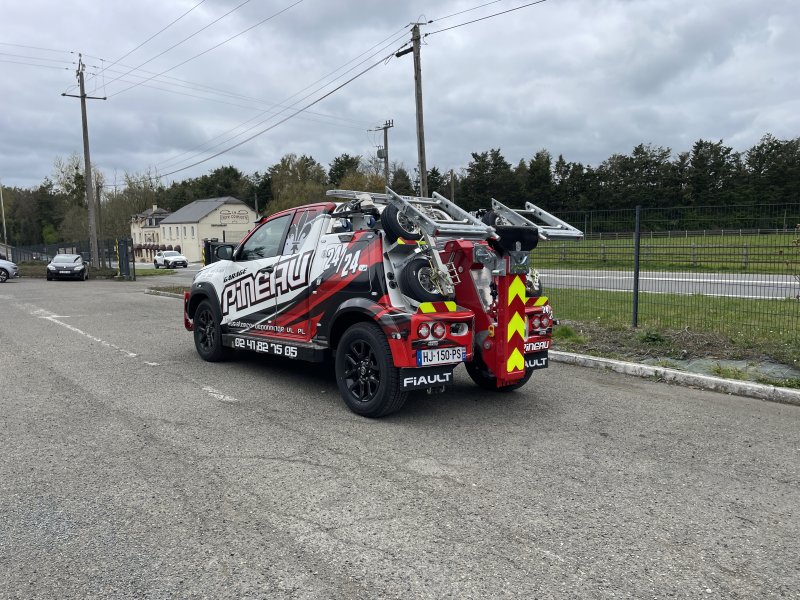

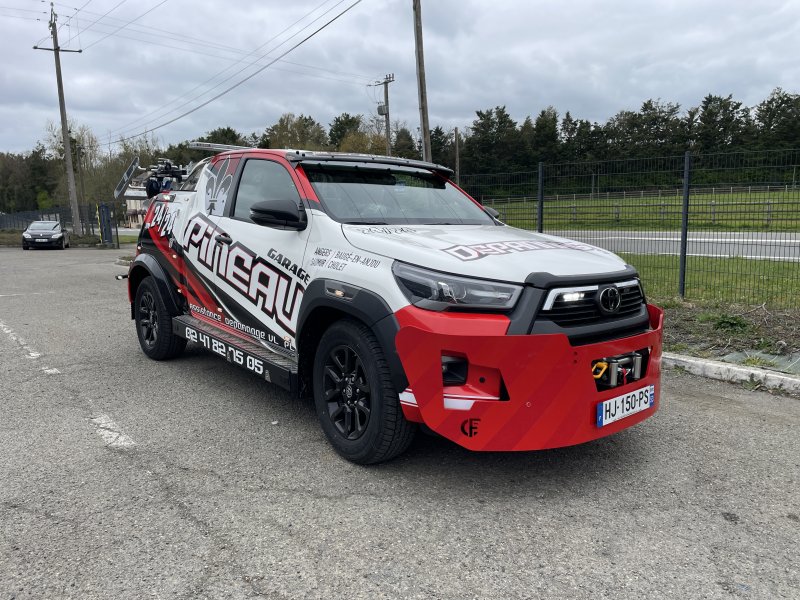

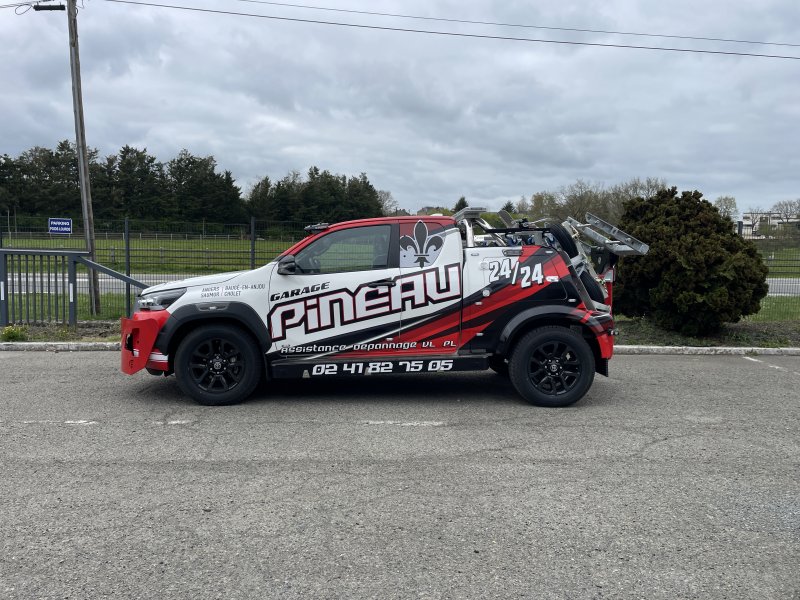

MAXILIFT PF3000 ON TOYOTA HILUX SPACE CAB



CHASSIS CAB :

TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6

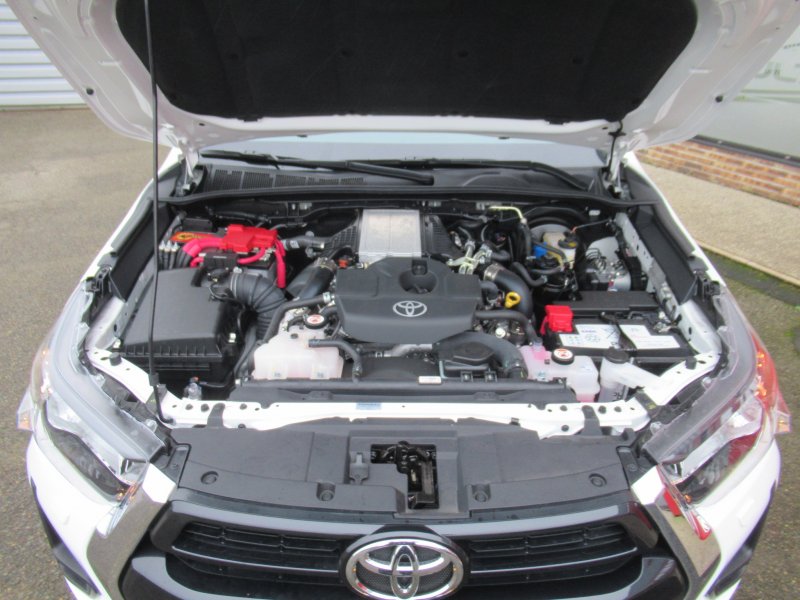

-Engine : 4 cylinders 2.4 L Turbo

-Gearbox : manual transmission 6 speed with shift indicator

-Power : 150 CH - engine couple : 400 N/m from 1600 to 2000 tr/mn

-Rear differential lock by push button

-Brakes : front discs and rear drums + anti-lock braking (ABS)

-Systems : Hill Start Assist (HAC) - Sway Control (TSC) - Traction Control (TRC) - Stability Control (VSC)

-White cabin - 2 seats - Power windows - Steering angle: 12,8m / 13,4m

-CD Radio - MP3 - Bluetooth - USB - 6 Speakers - steering wheel audio control

-Manual air conditioning - 7 driver & passengers airbags

-Tires 265 / 65R17 X17 inches on original aluminum rims

-Wheelbase : 3085mm - Length : 4900mm - Width : 1900mm - Height : 1850mm

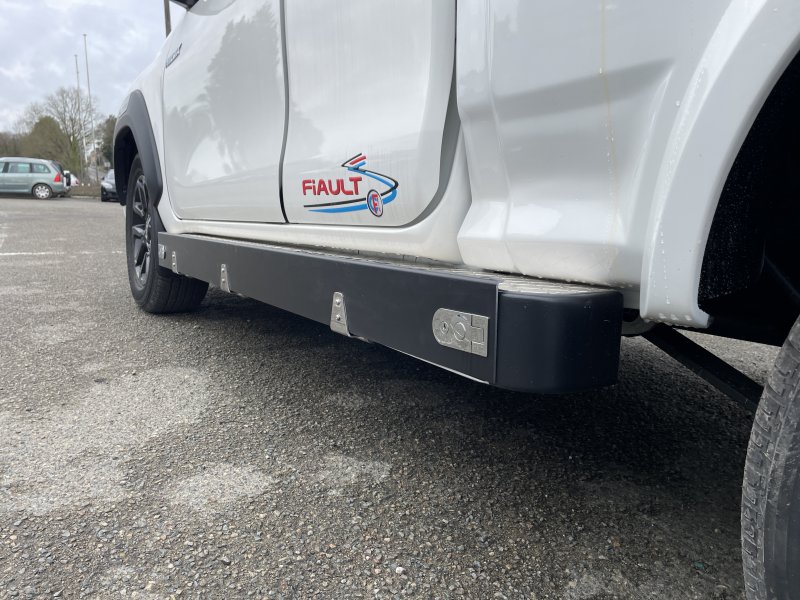

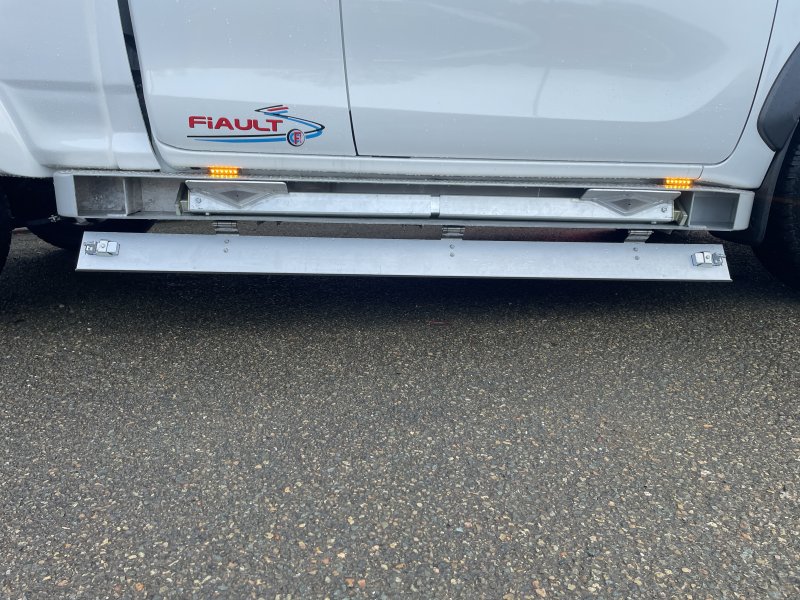

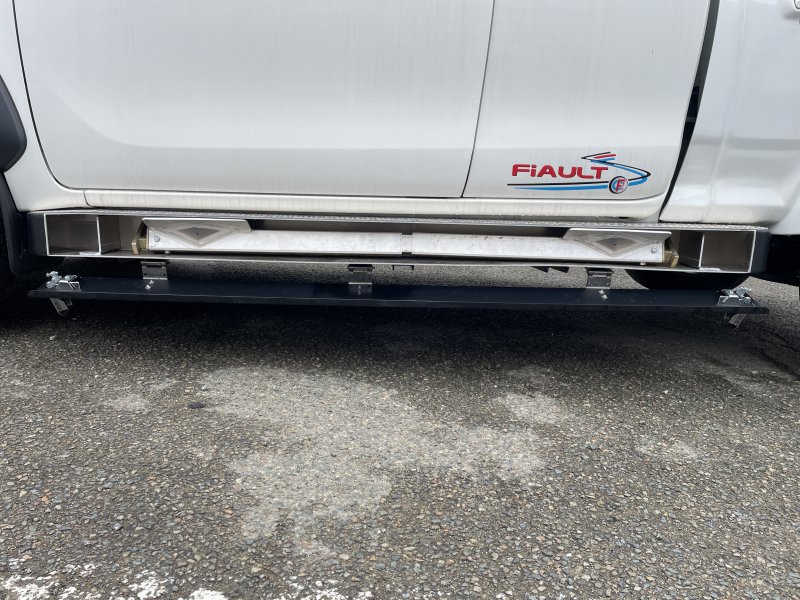

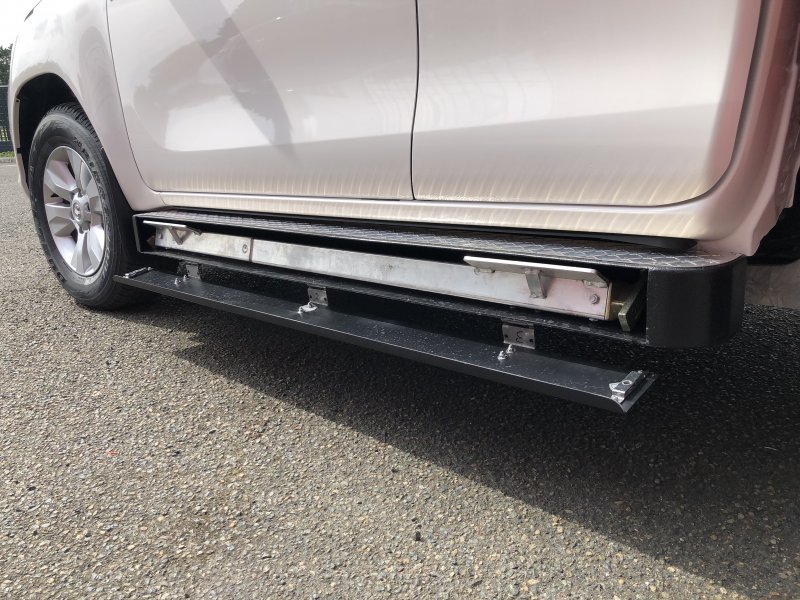

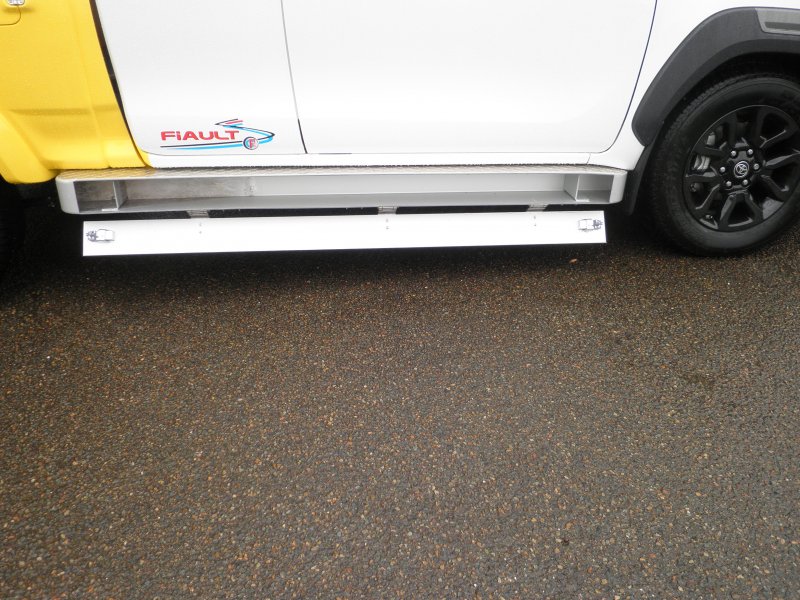

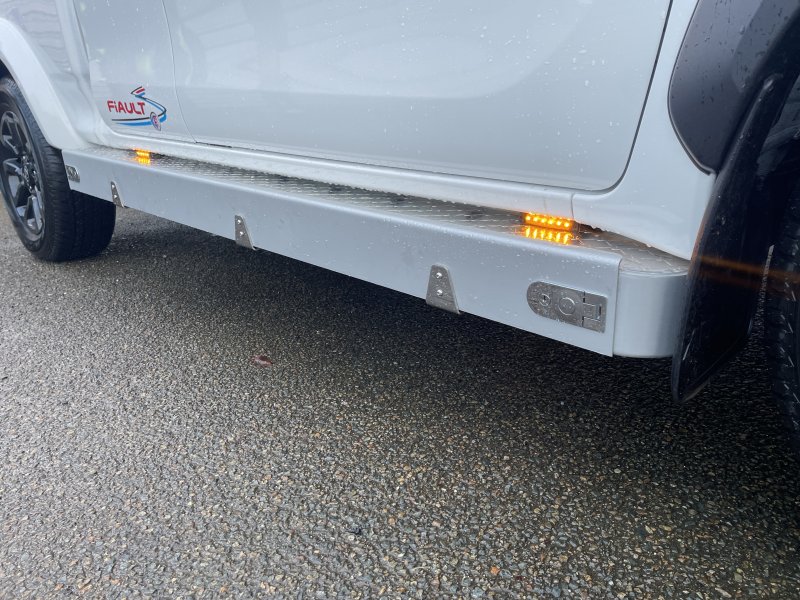

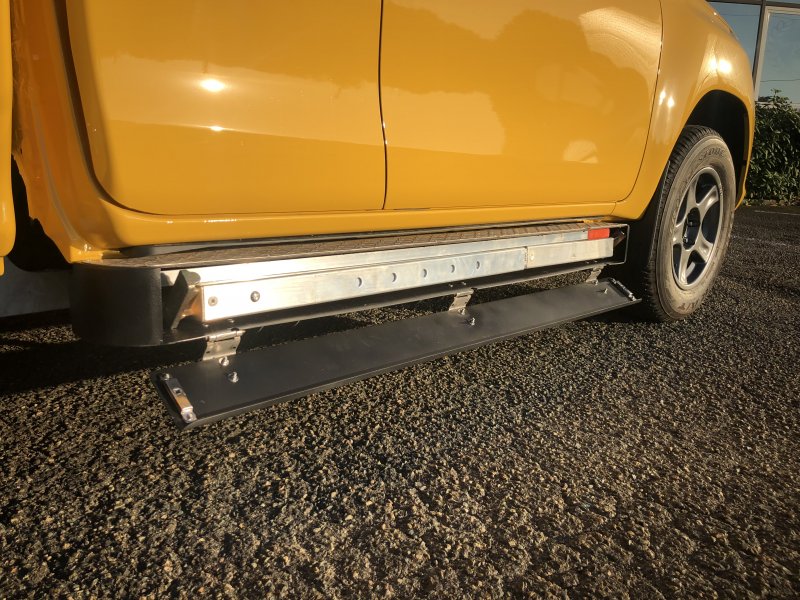

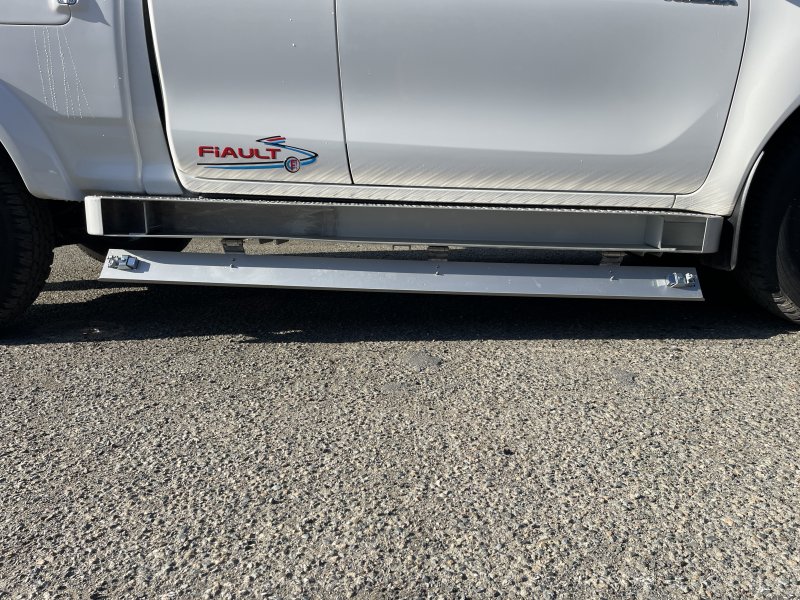

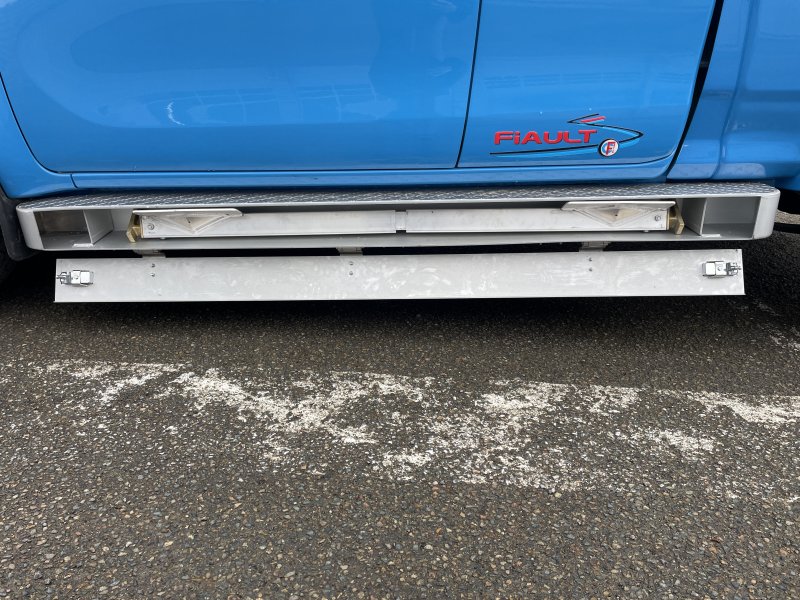

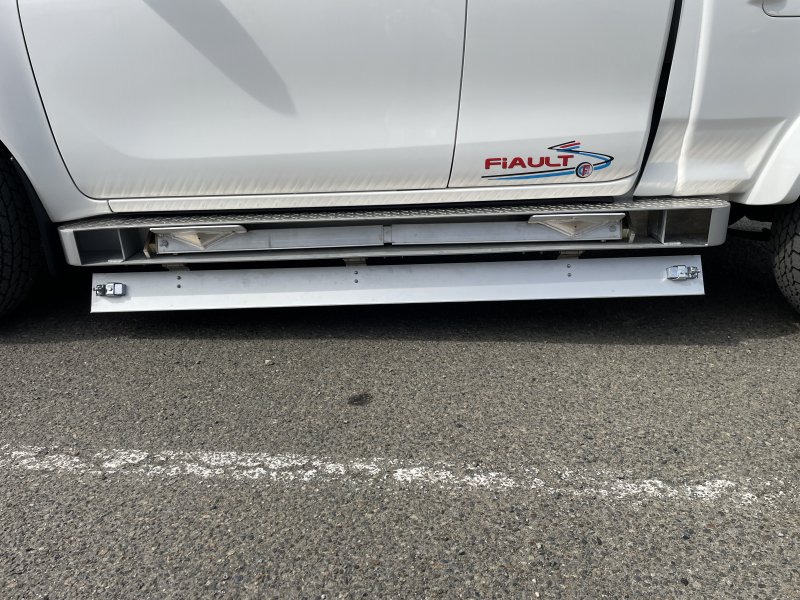

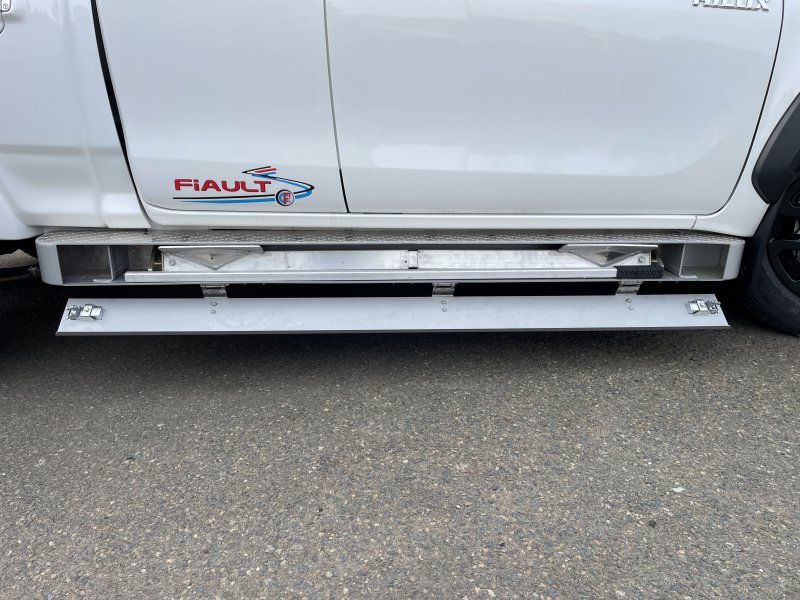

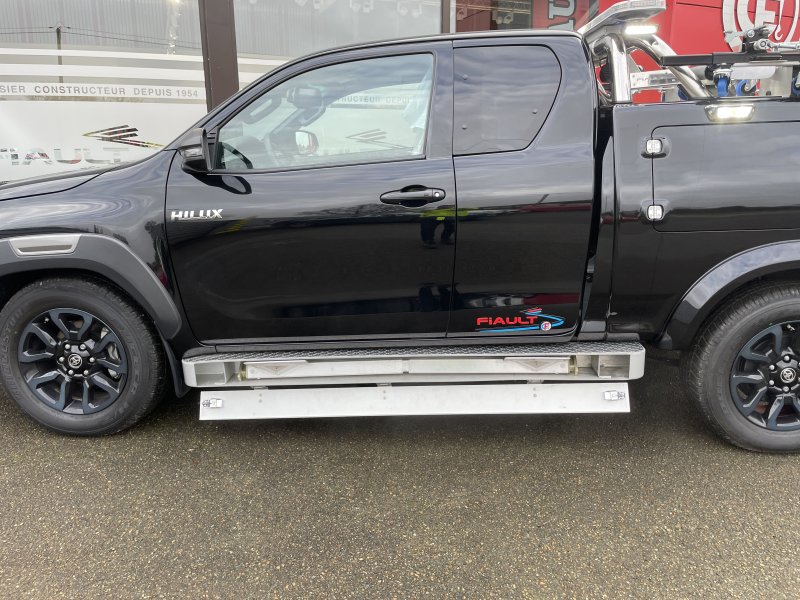

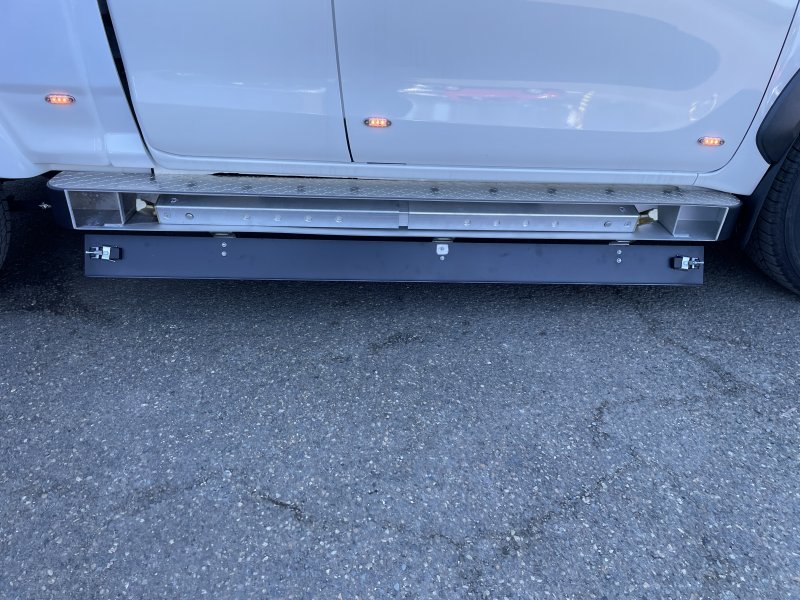

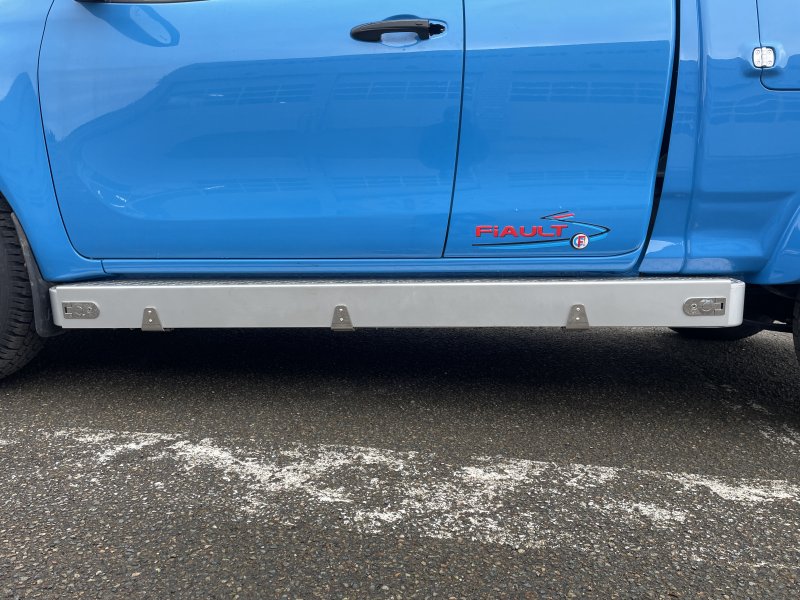

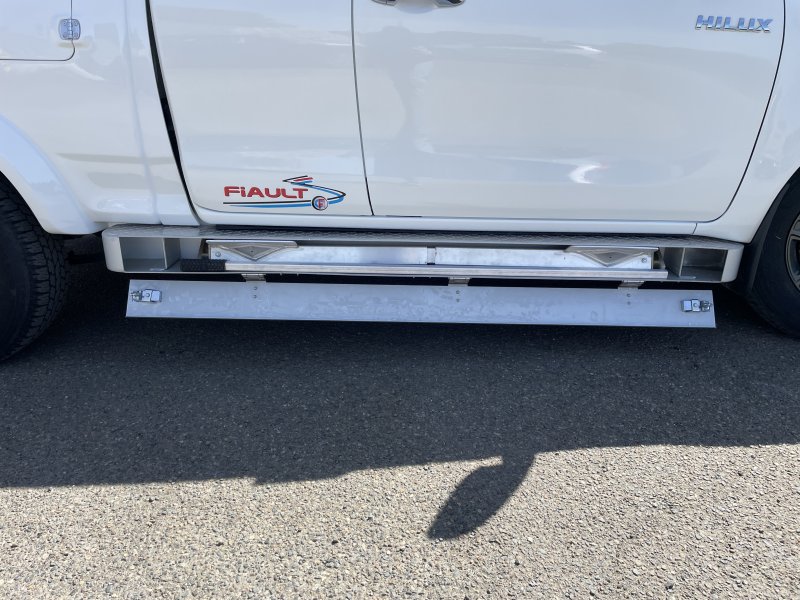

-Original aluminum footboard



SPECIAL MODIFICATION ON THE VEHICLE :

-Rear suspension converted to pneumatic with pump, reservoir

-Two pneumatic cushions with automatic levelling system

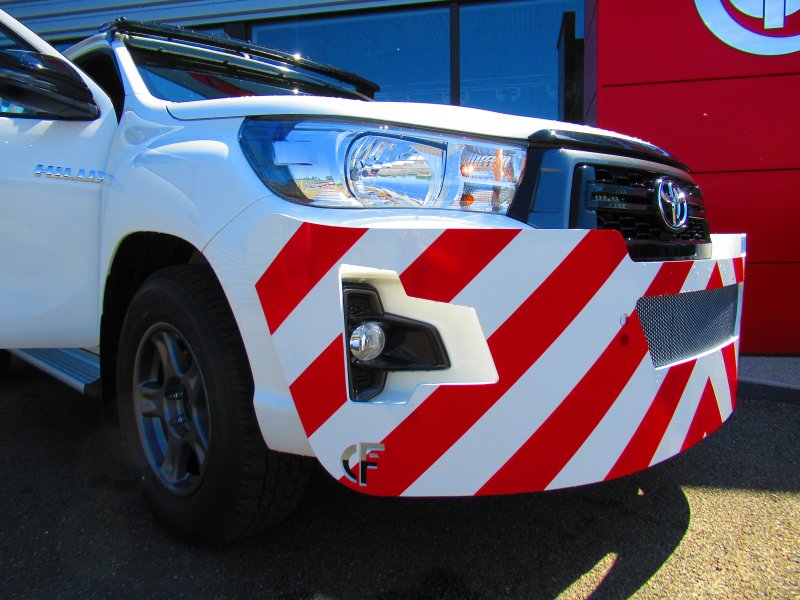

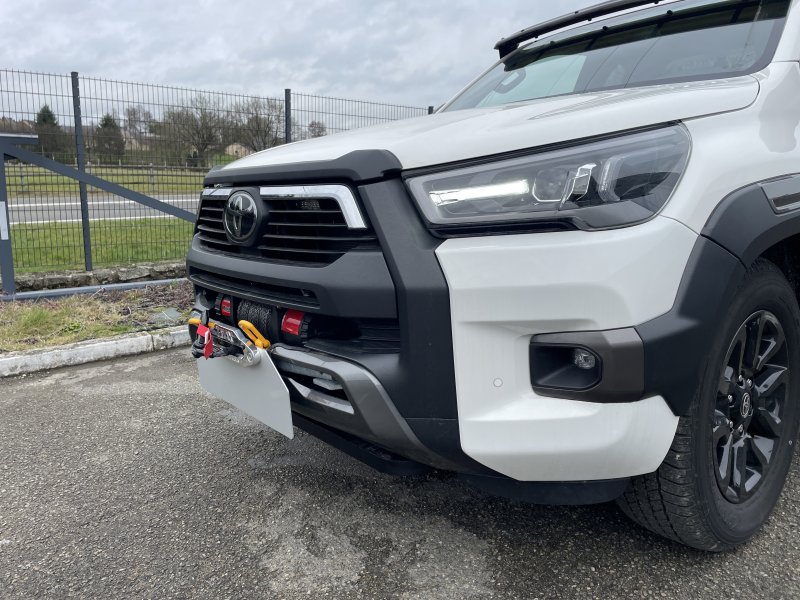

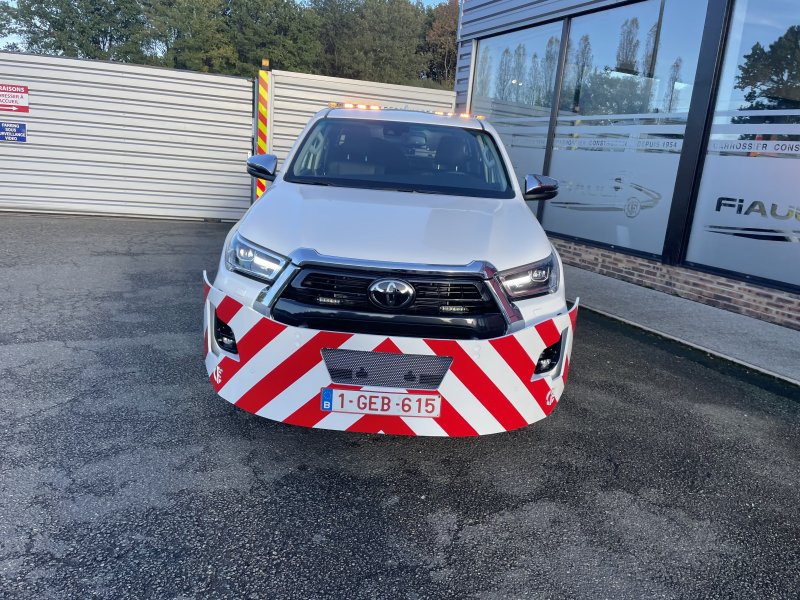

-Adaptation of a ballast anti-squat under the front bumper


SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :

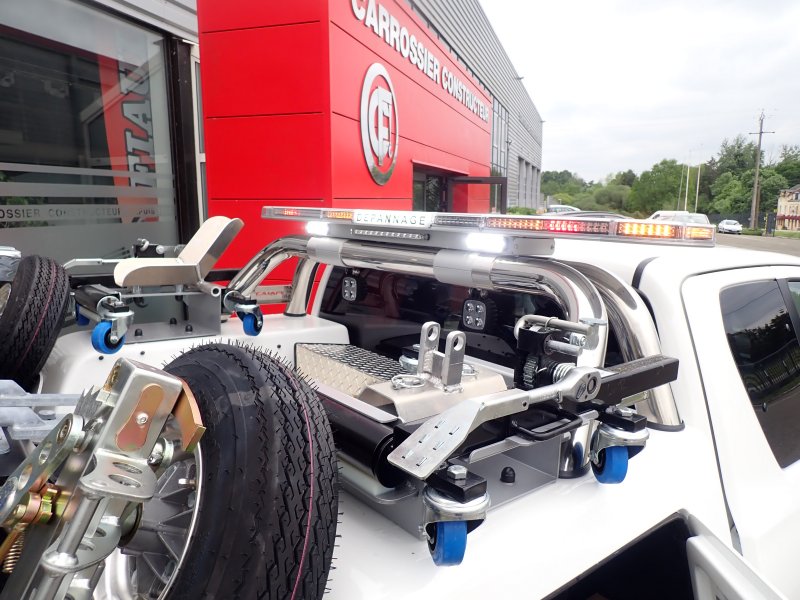

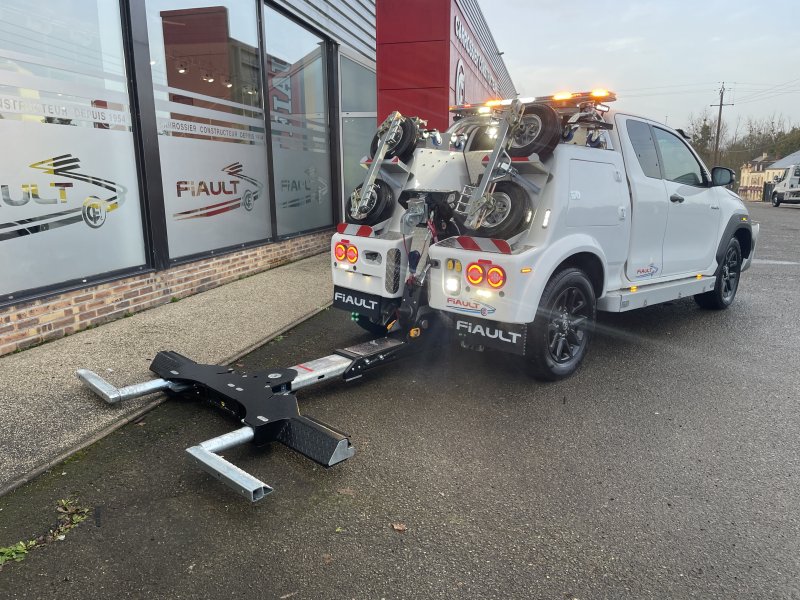

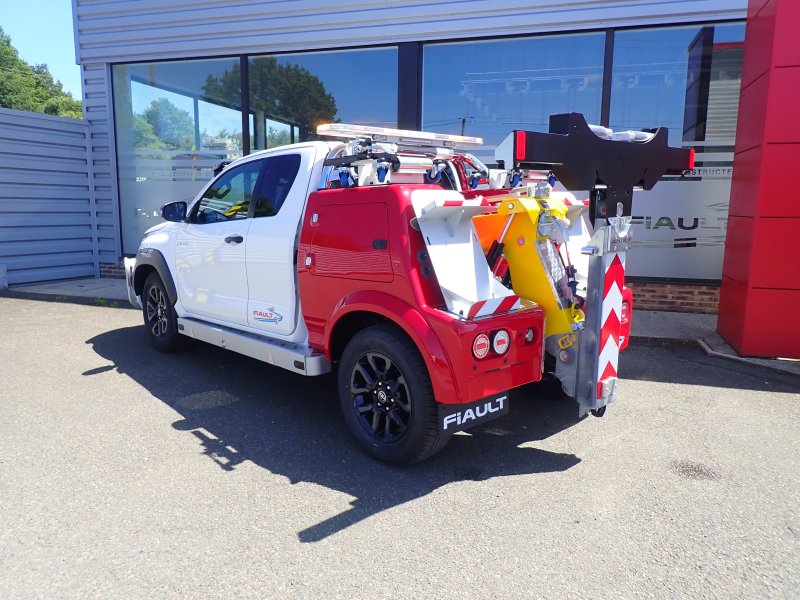

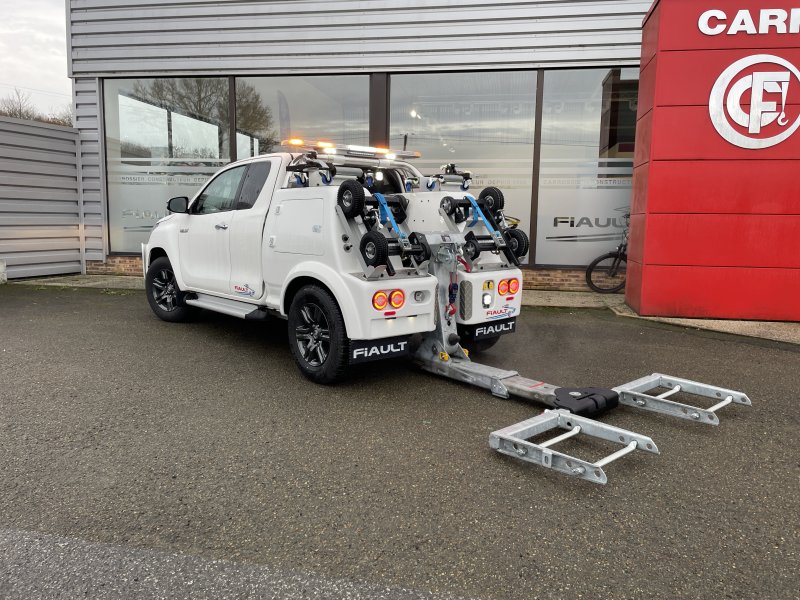

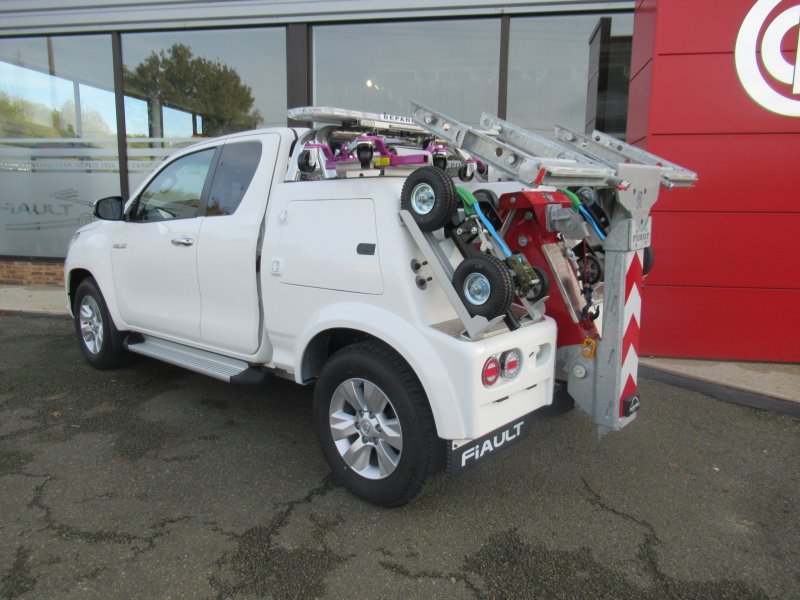

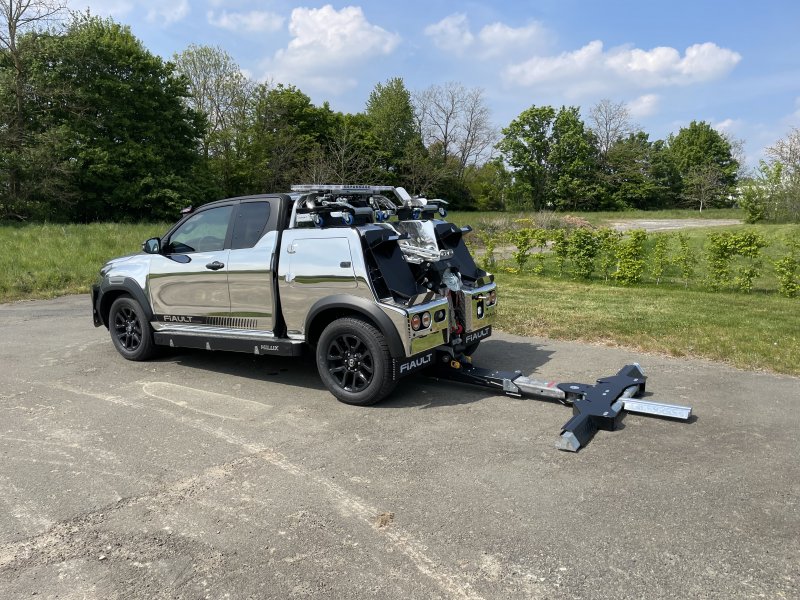

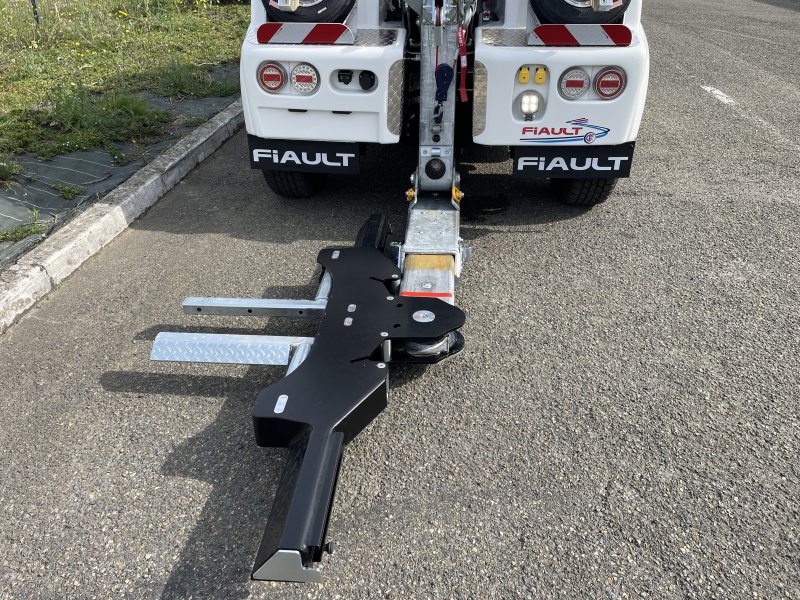

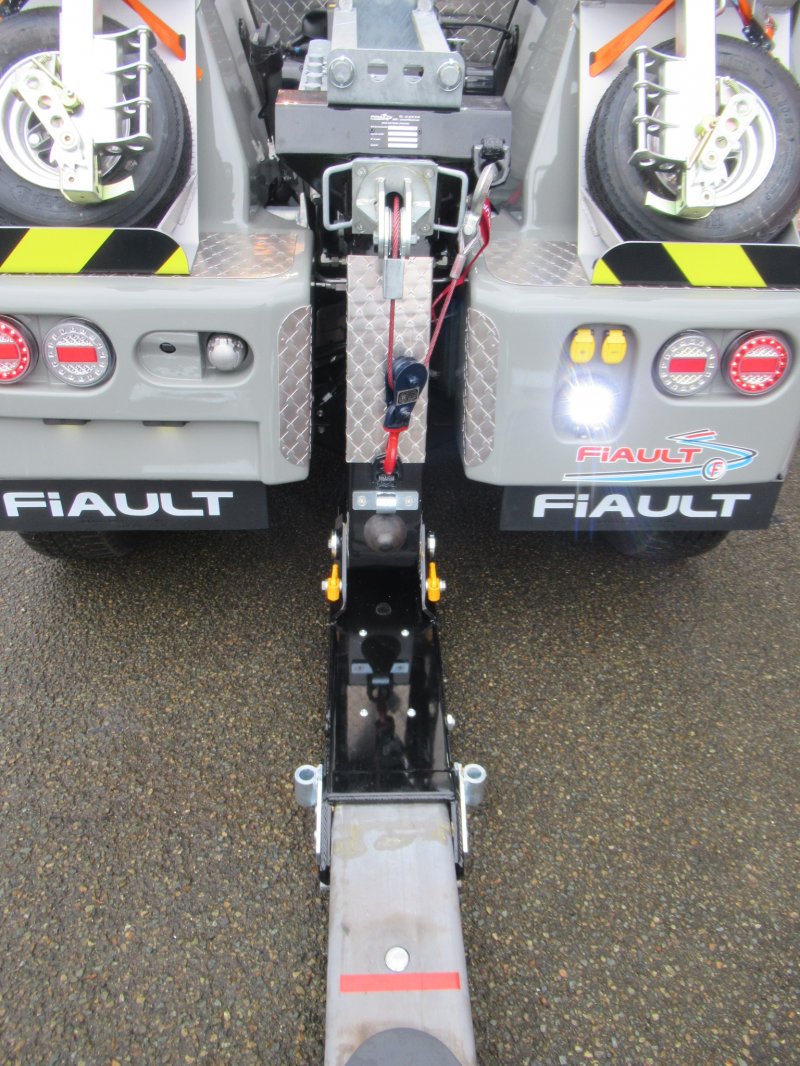

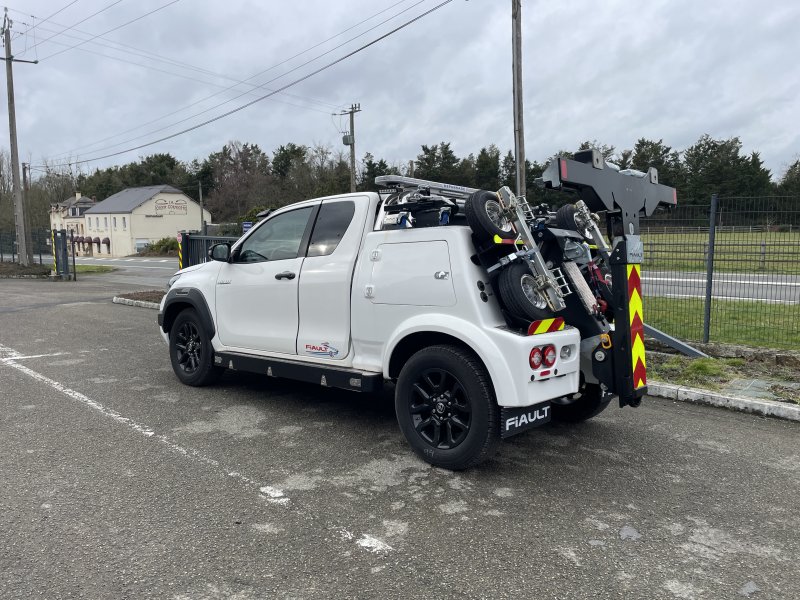

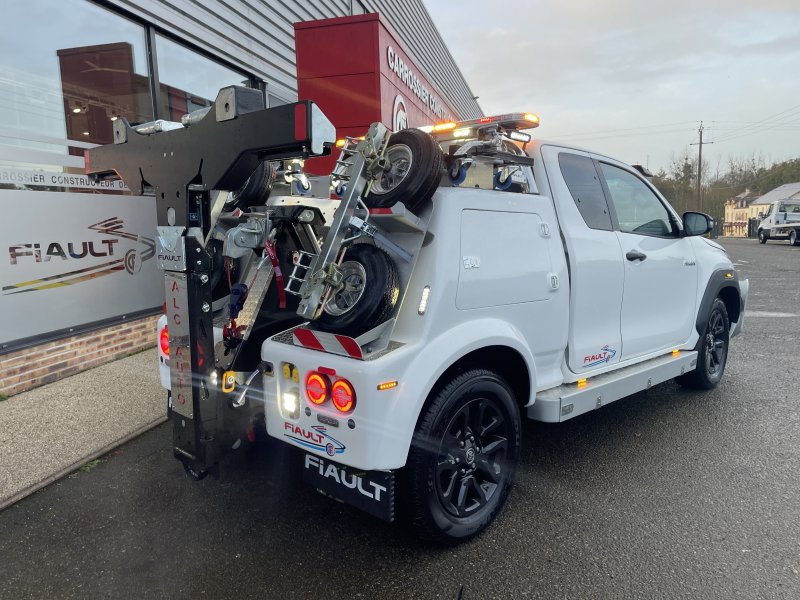

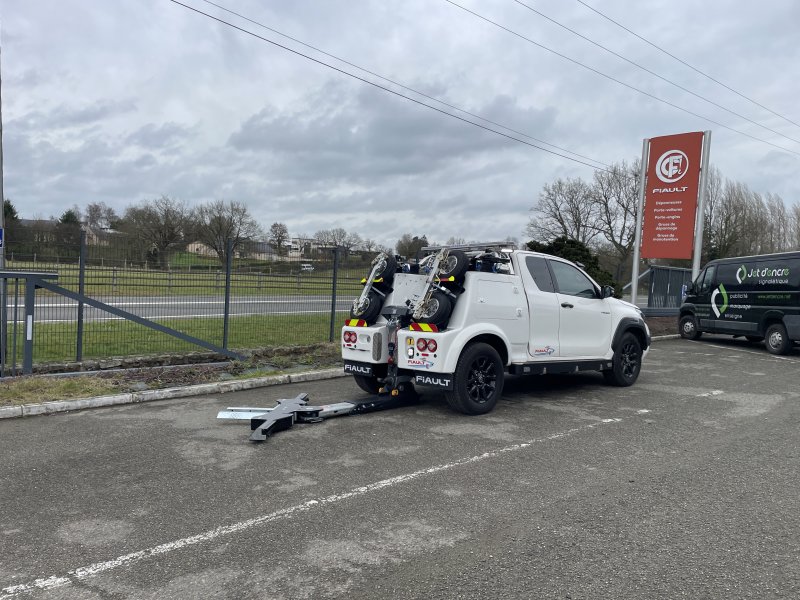

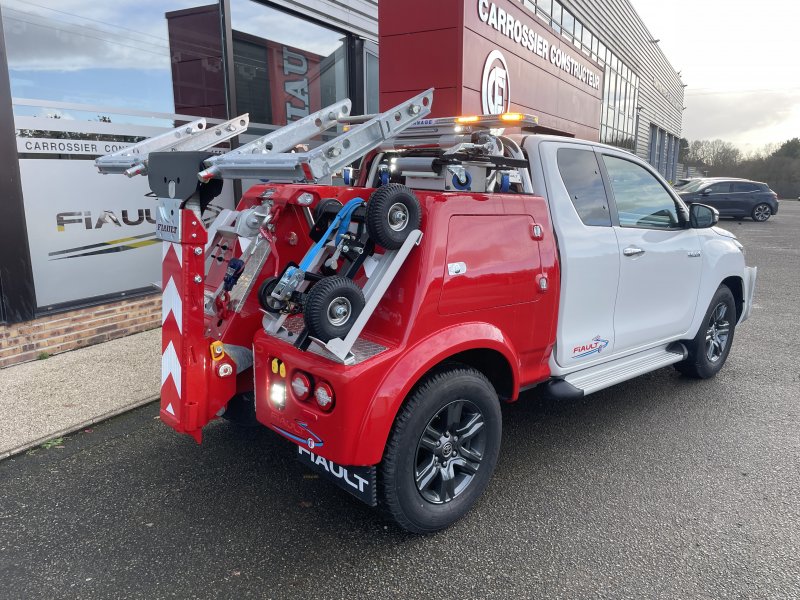

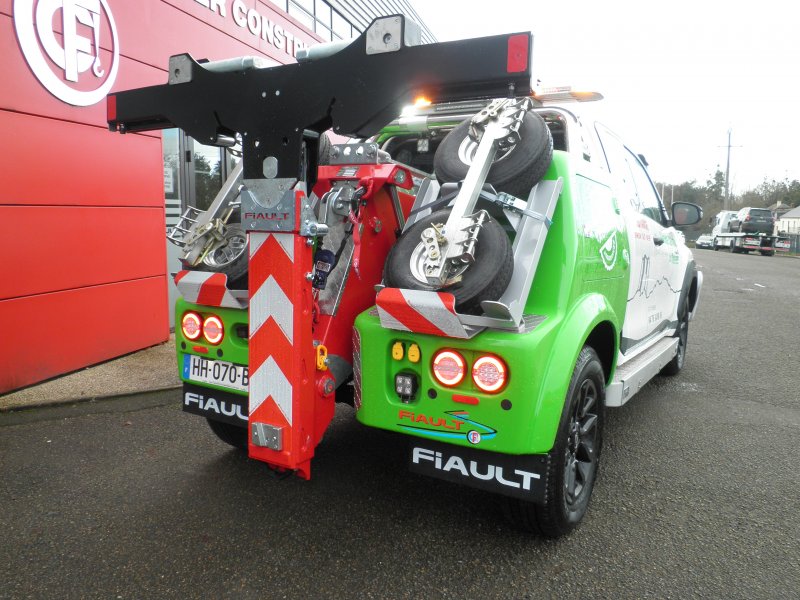

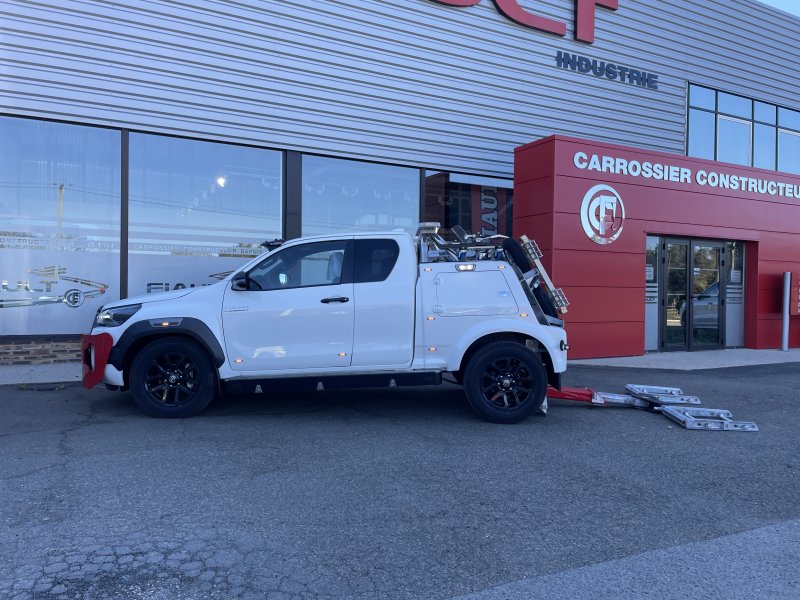

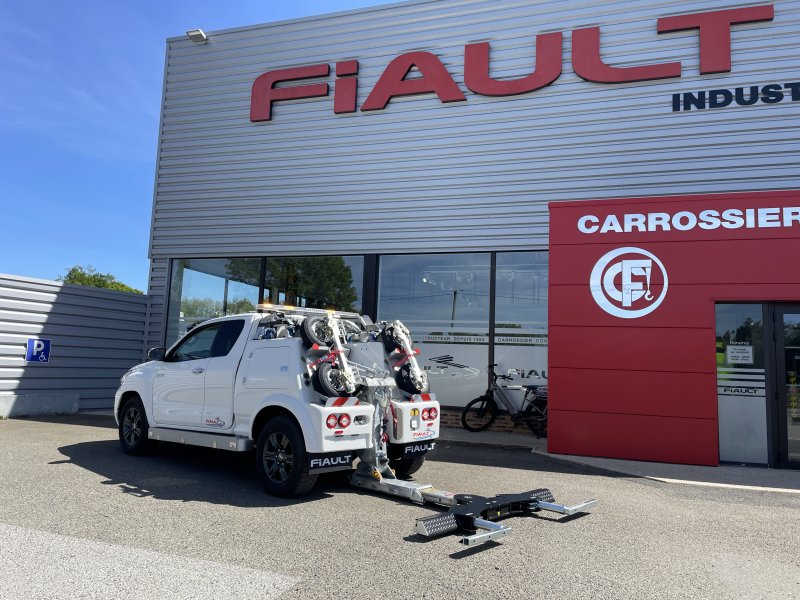

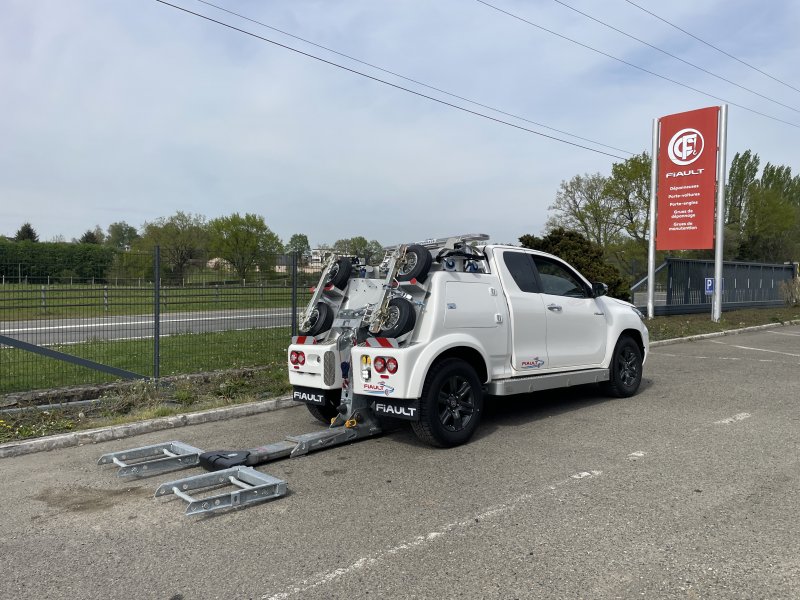

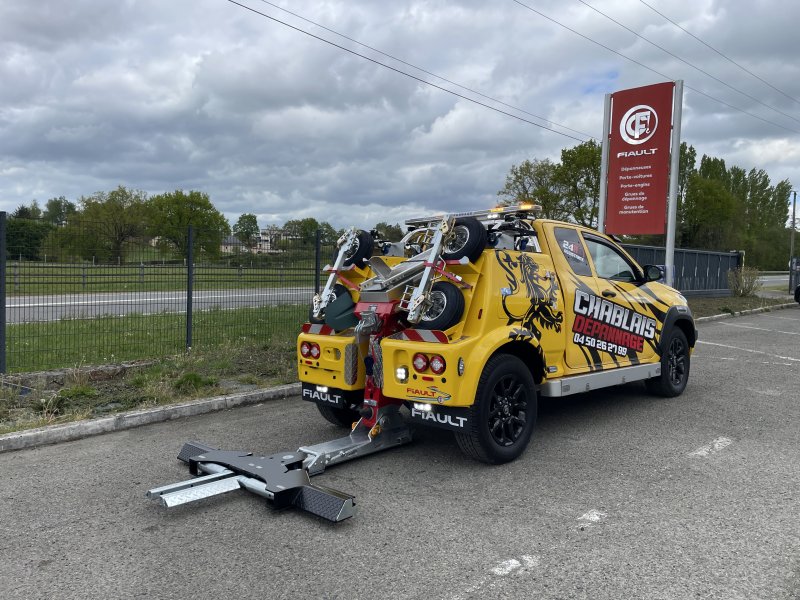

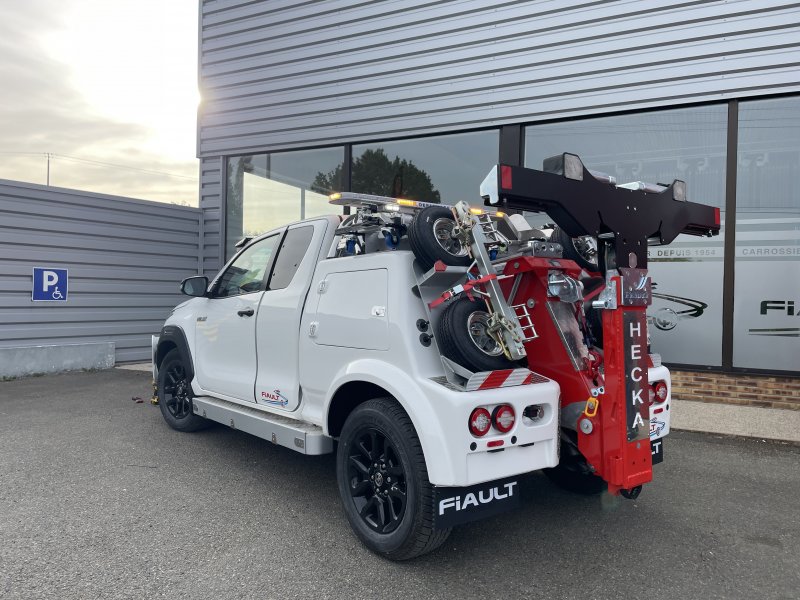

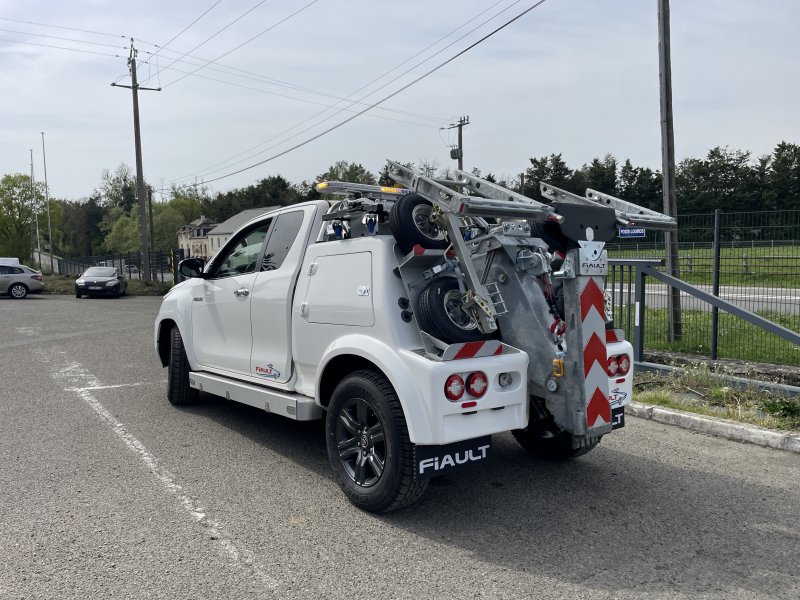

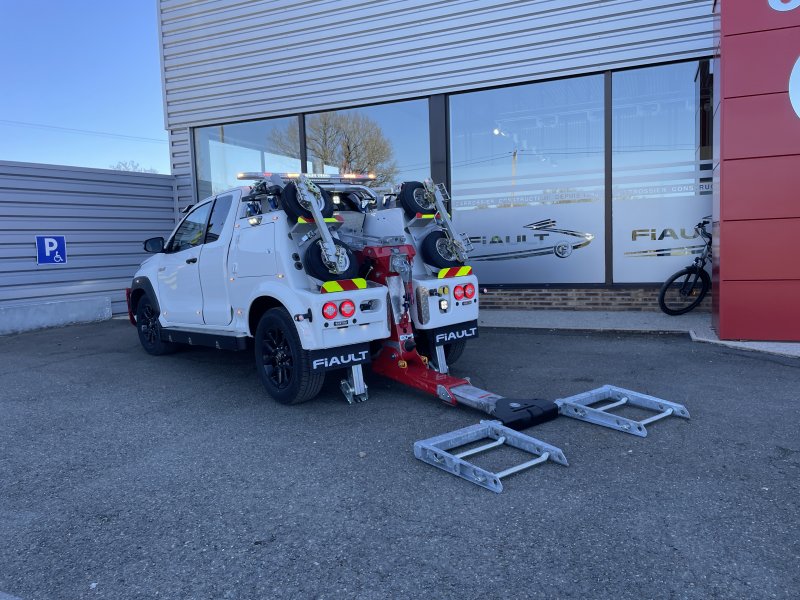

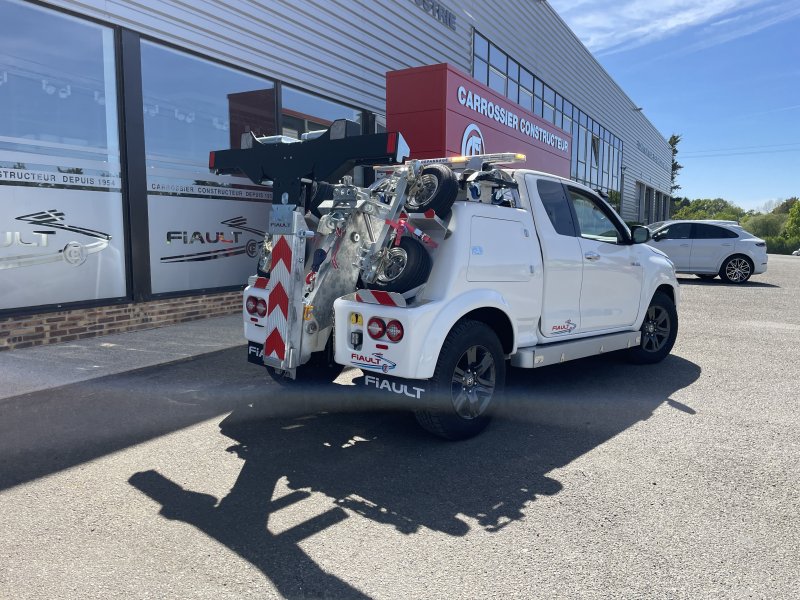

-Maxilift PF3000, Z type spec lift with dual articulation and fold flat

-Two pistons to control lift with security interlock

-A piston to control arm extension with security interlock

-A piston to control arm angle with security interlock

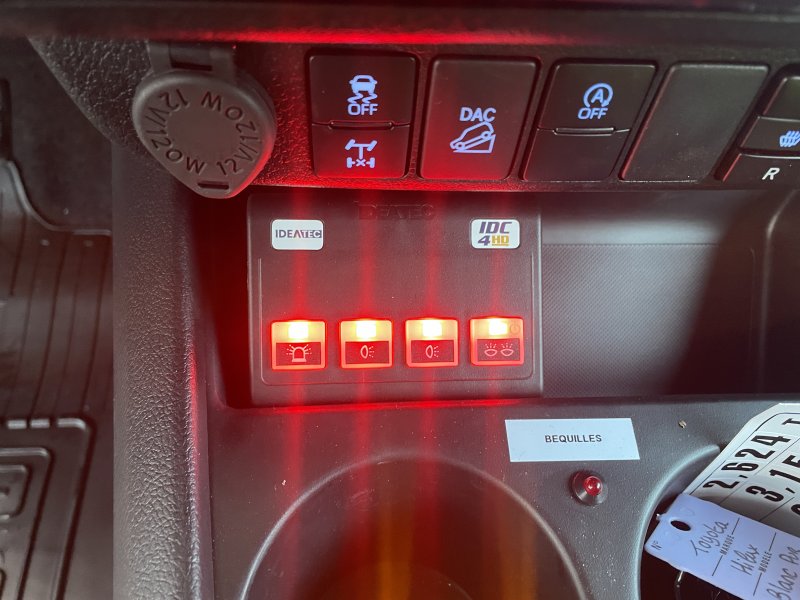

-Electric hydraulic pump with controls in the cab and on the body

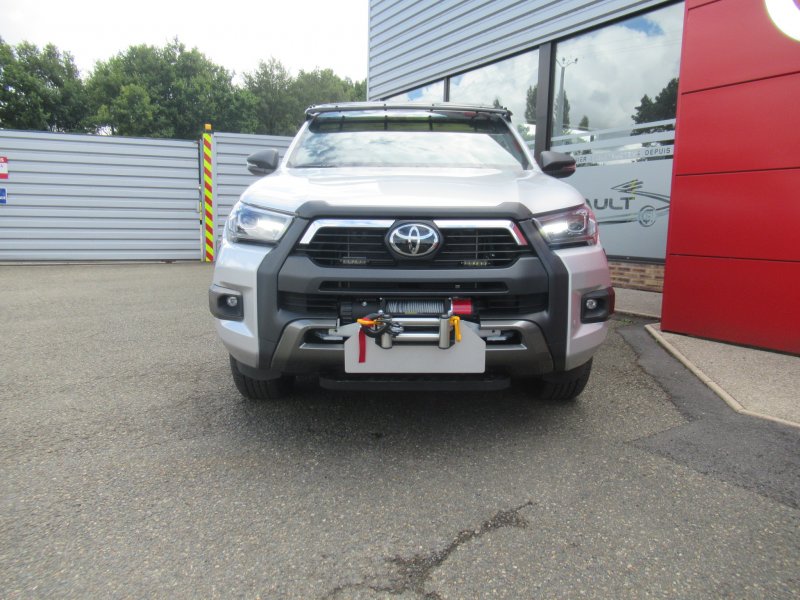

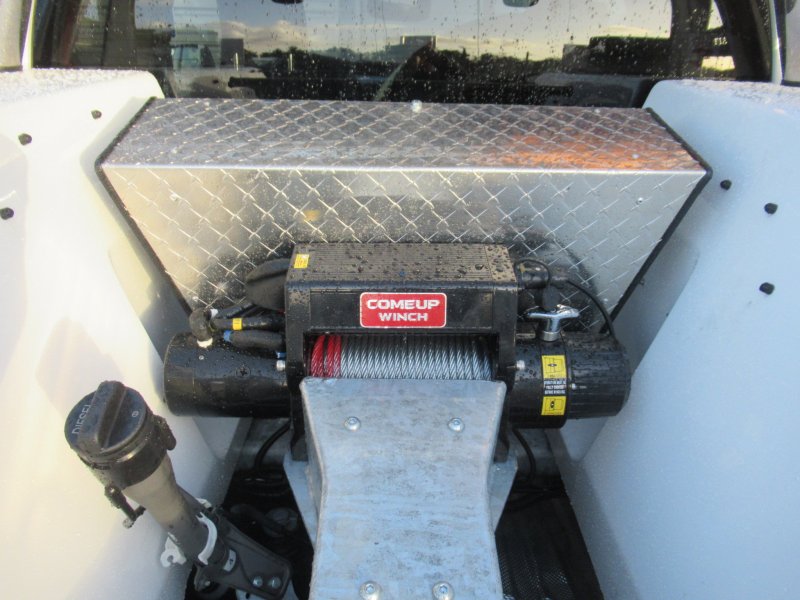

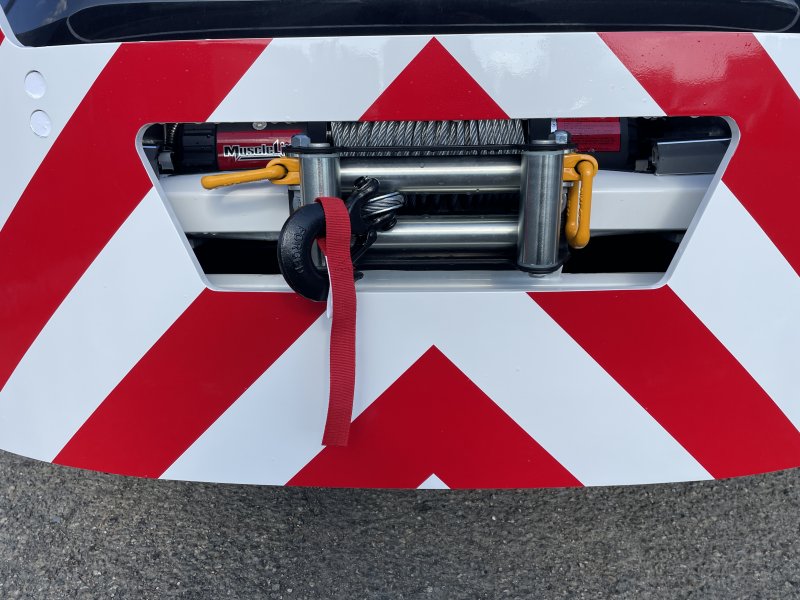

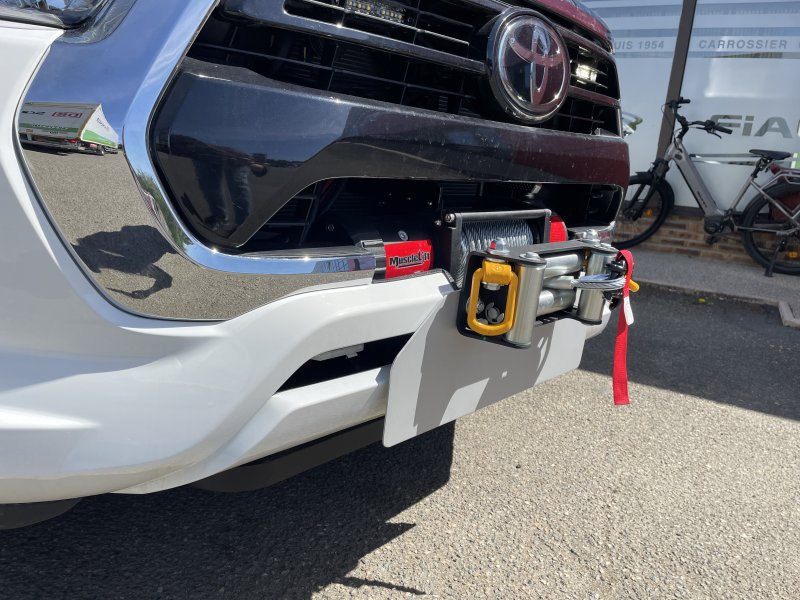

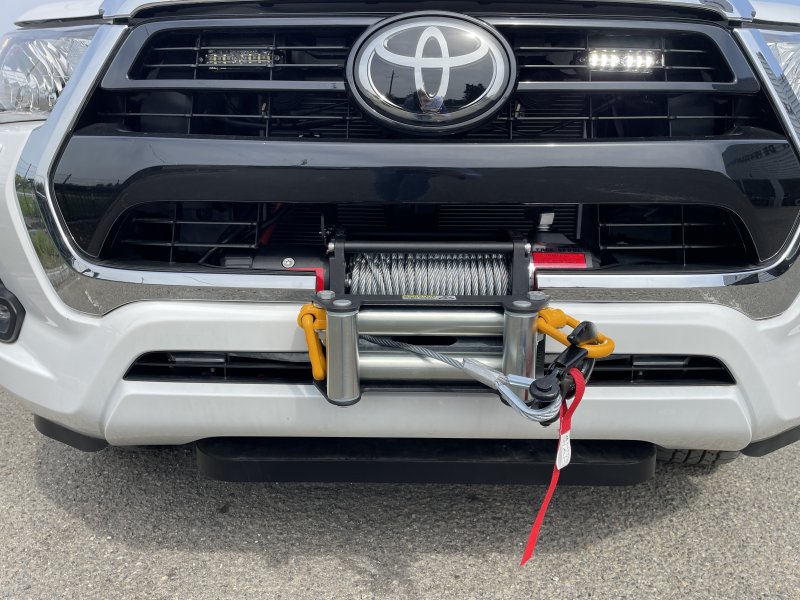

-A four ton electric winch with 20m of cable

-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)

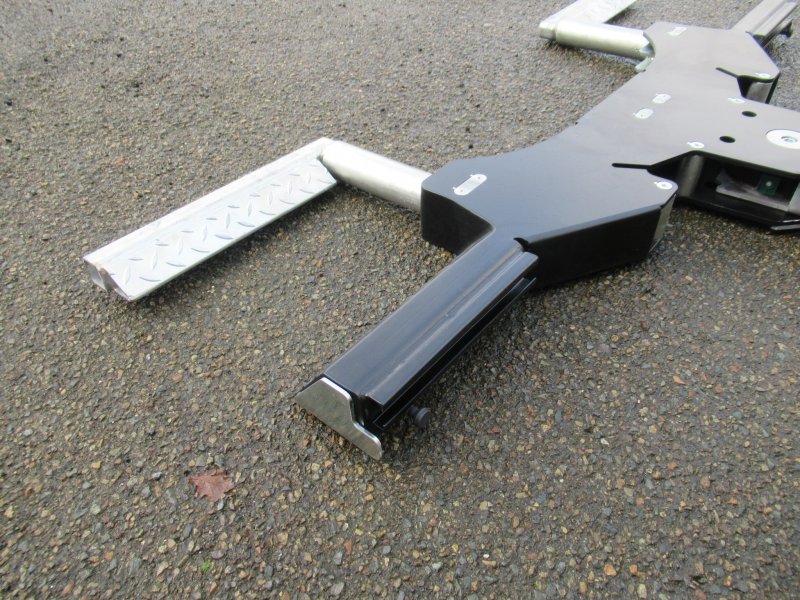

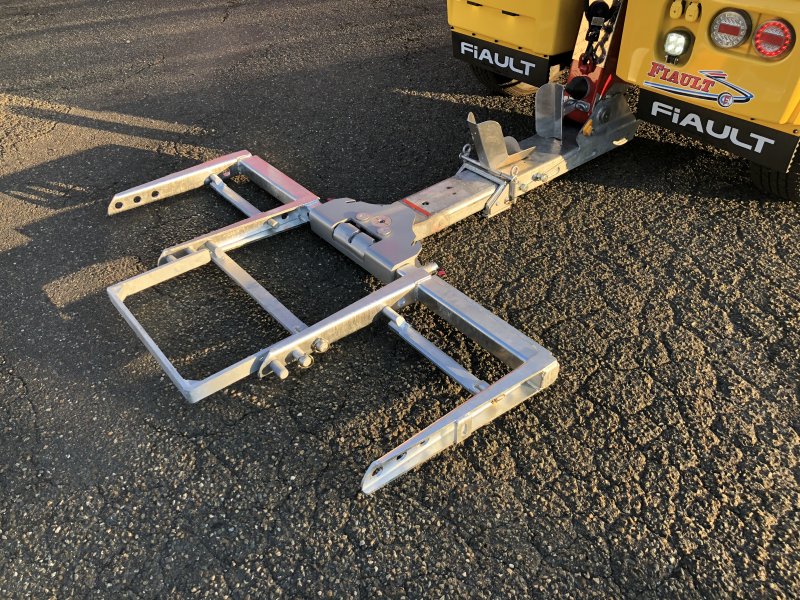

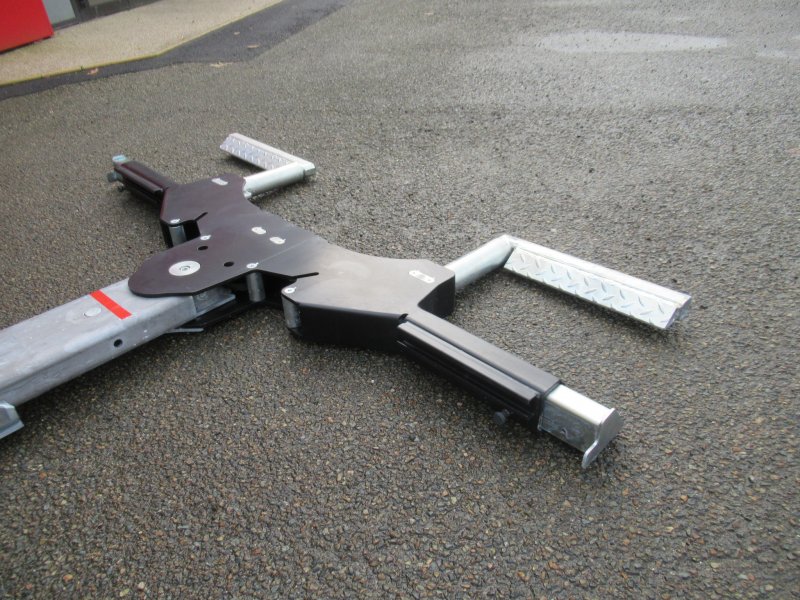

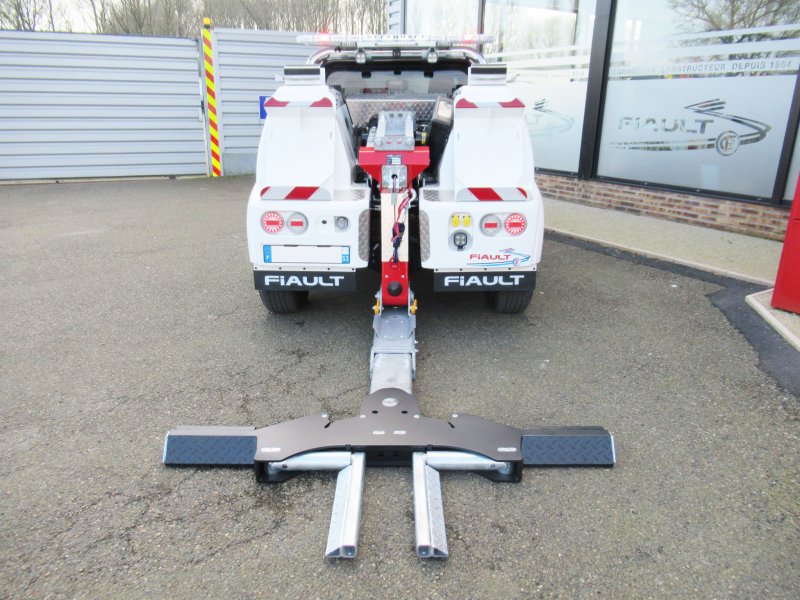

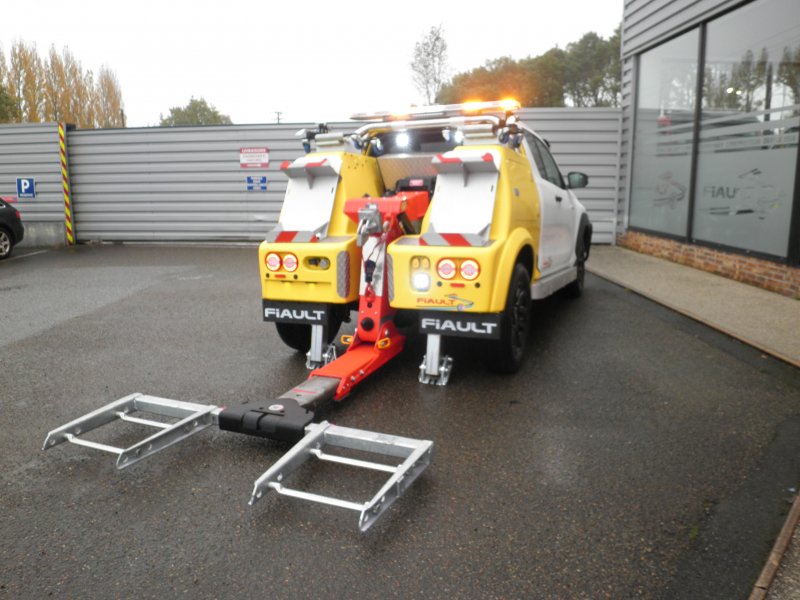

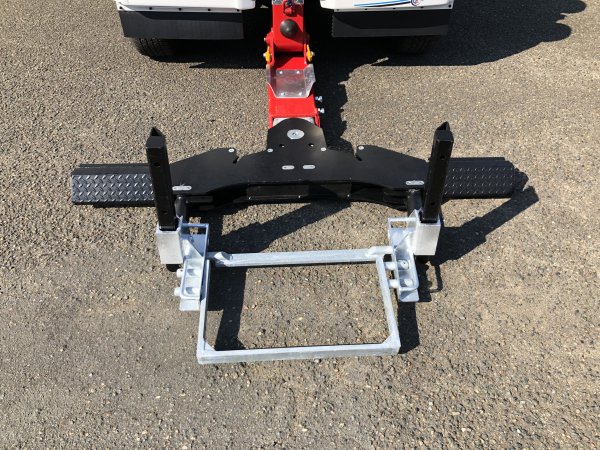

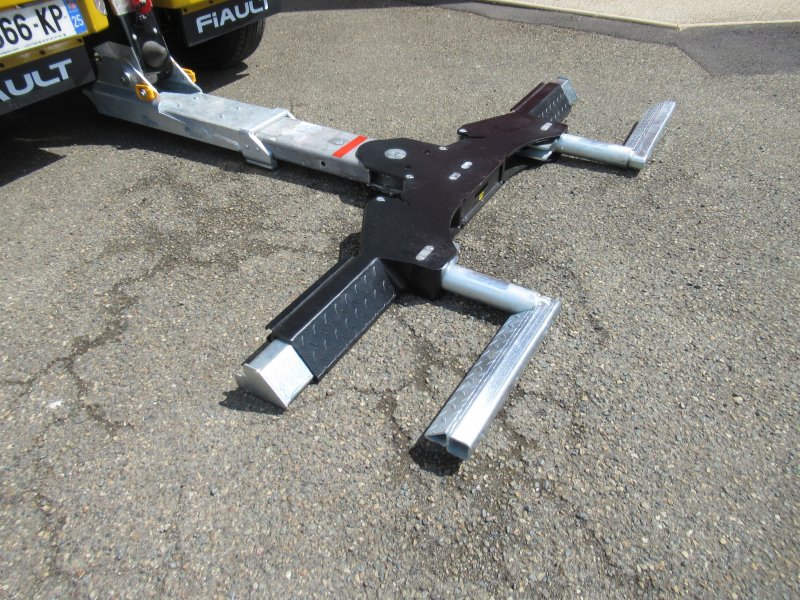

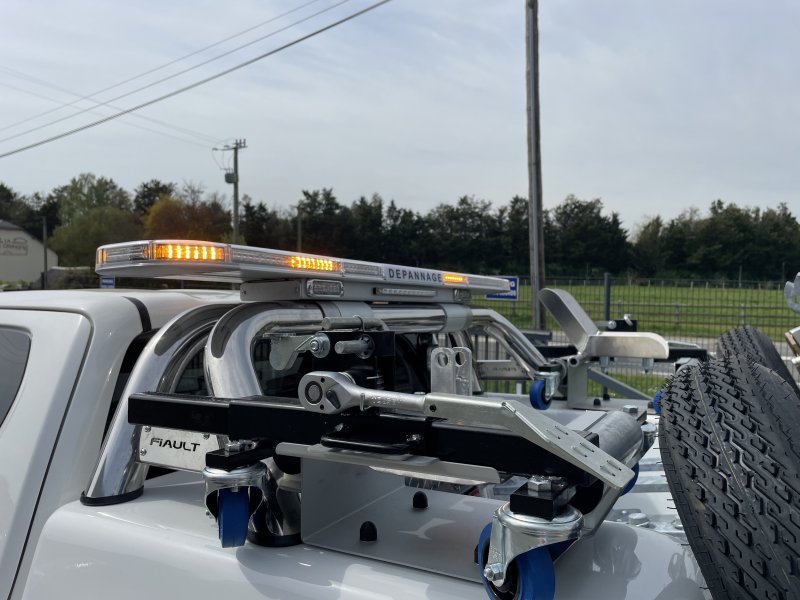

-Spec lift with articulation on horizontal axis and adjustable forks

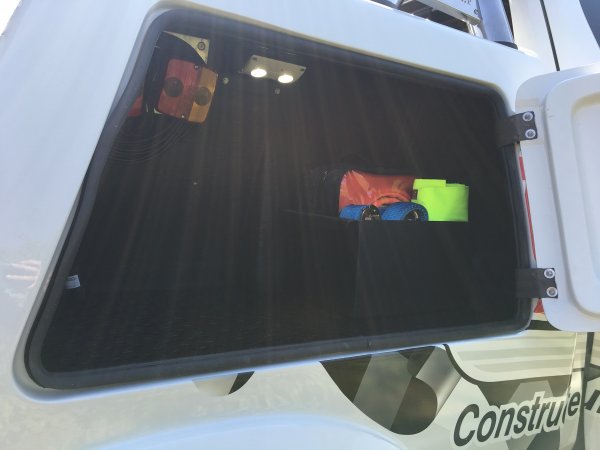

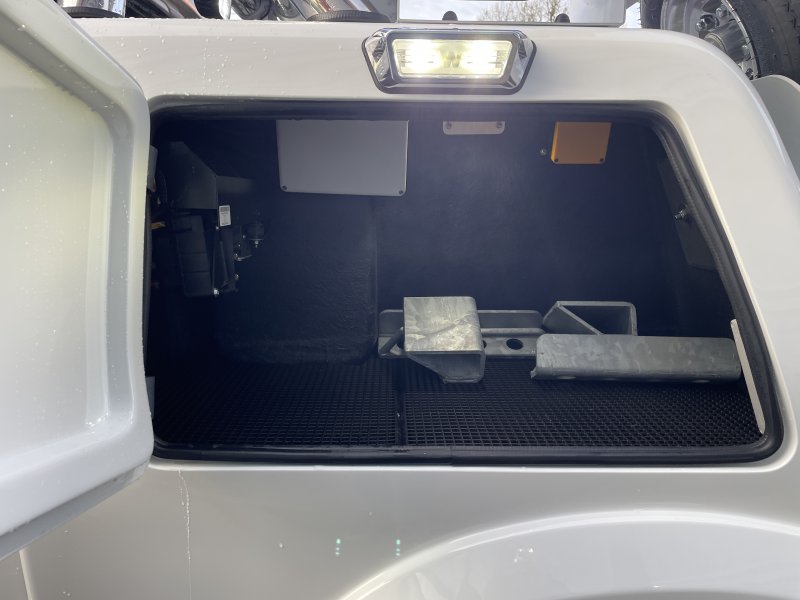

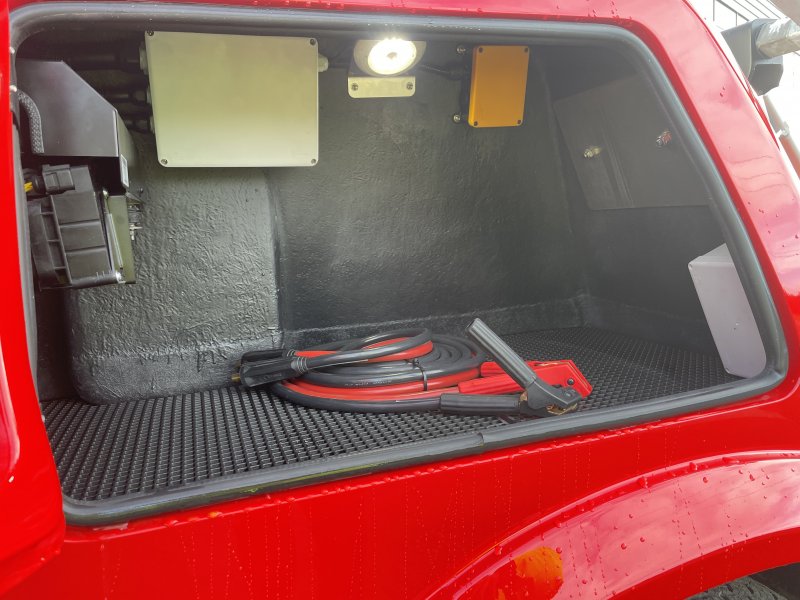

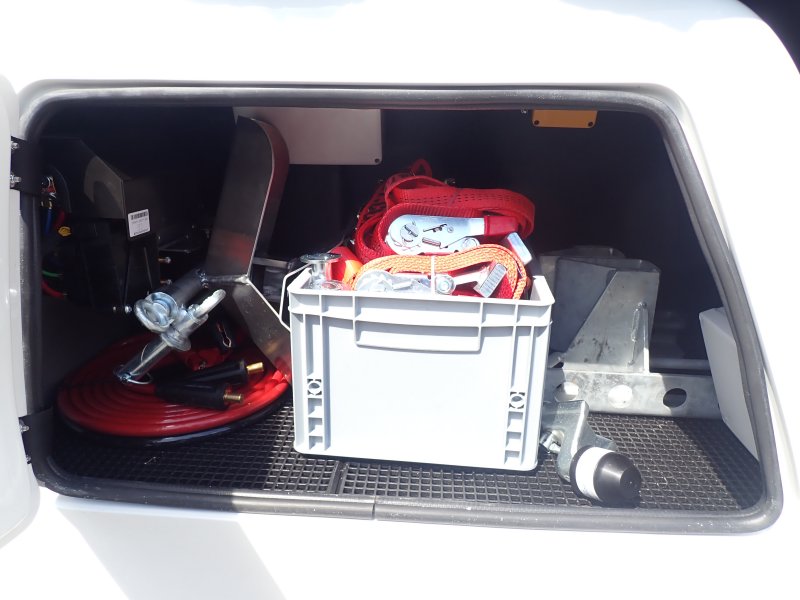

-Bodywork entirely in polyester with roller cabinets on either side

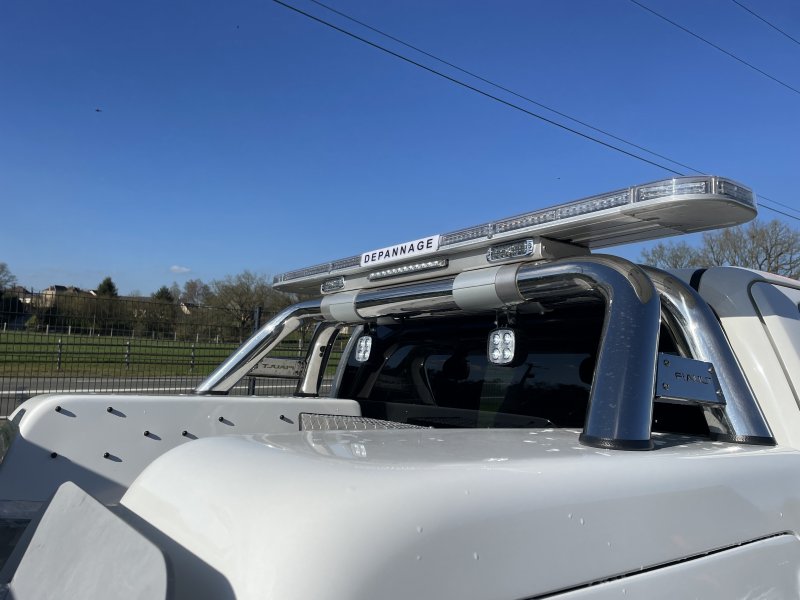

-Roll-bar FLY design in stainless steel with lightbar

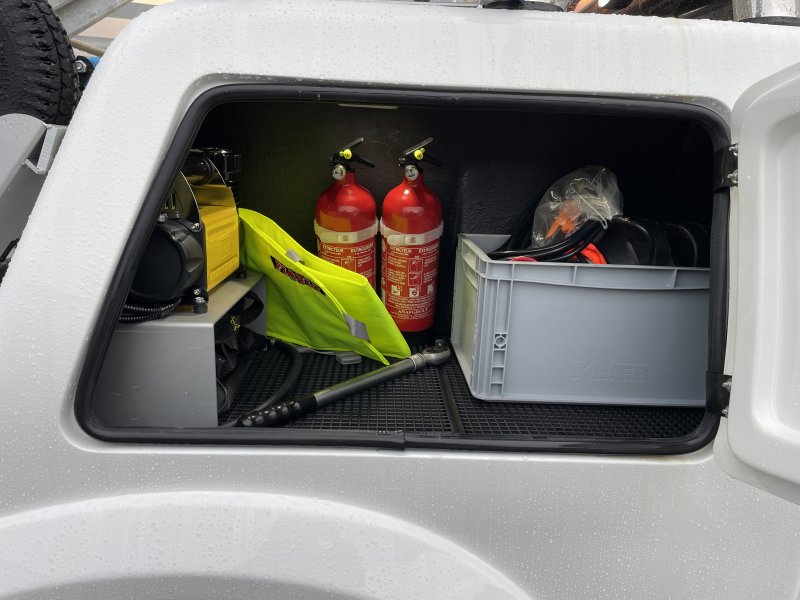

-Three florescent vests, three cones and two 2kg fire extinguishers

-A shovel, a broom a sand bucket

-A towing panel in a storage chest

-Two adjustable work lights at the front of the bed

-A work light fixed to the lower rear to provide illumination to the lift

-Two jump start cables with a 12v socket at the rear of the 4x4

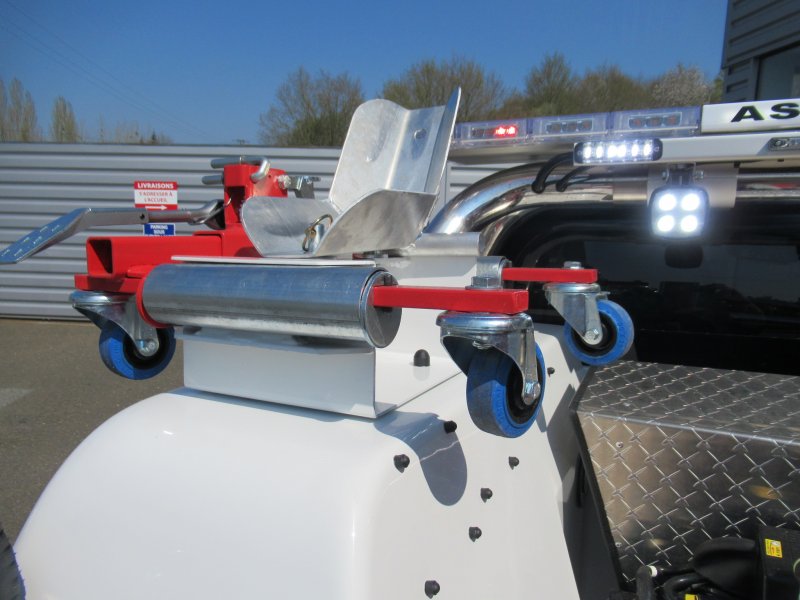

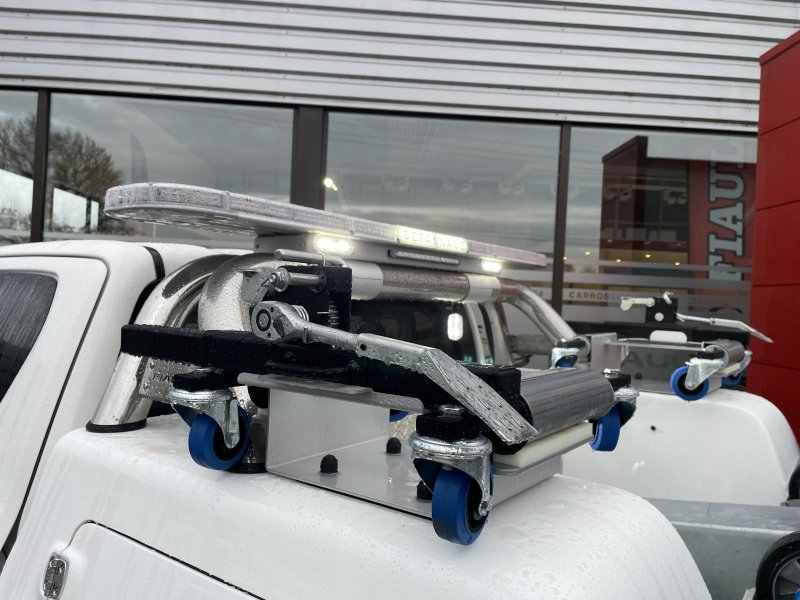

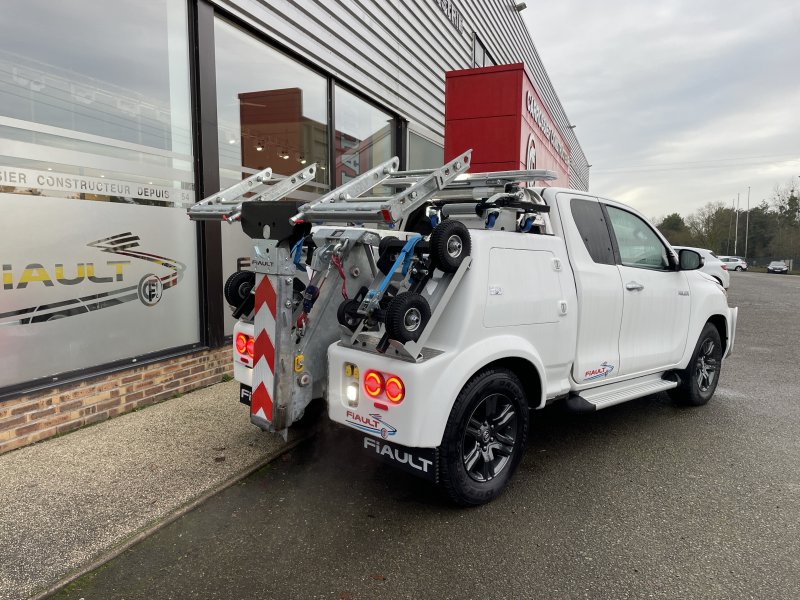

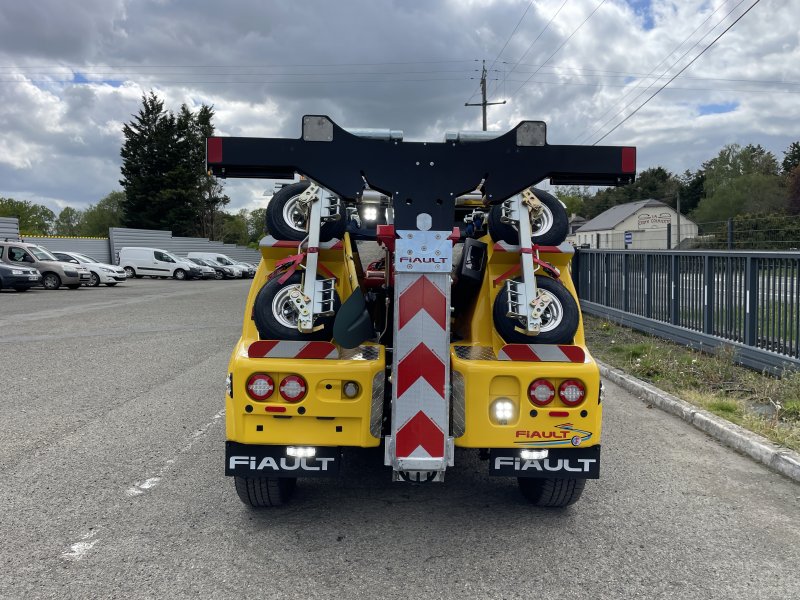

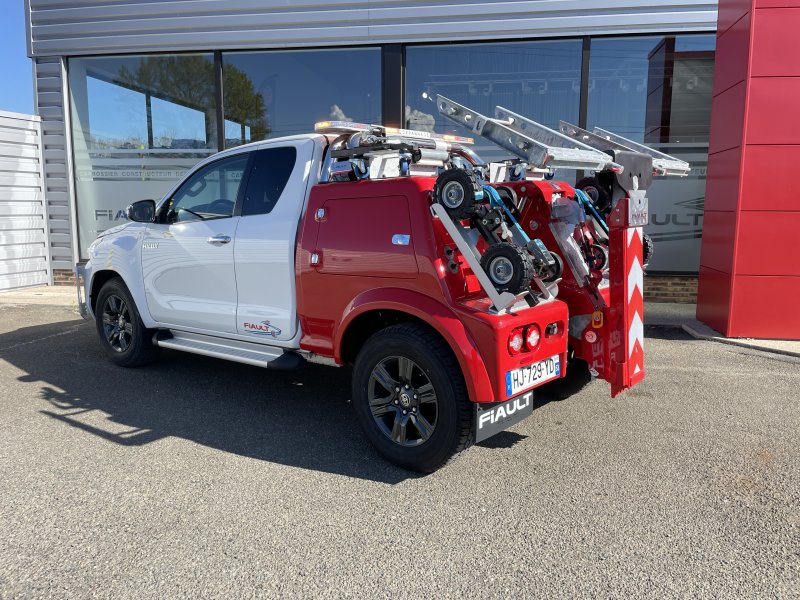

-Two wheel dollies type "IMPOUND" with mounts

-All the equipment is galvanized

-Bodywork painted in a single colour to define

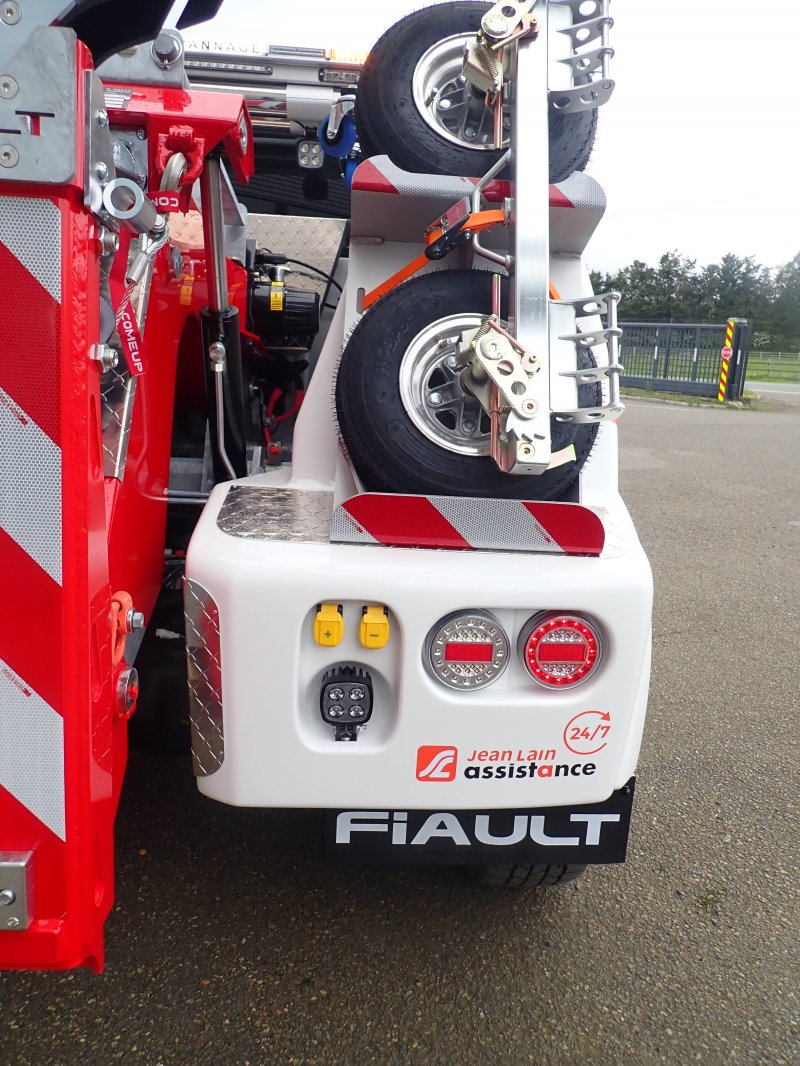

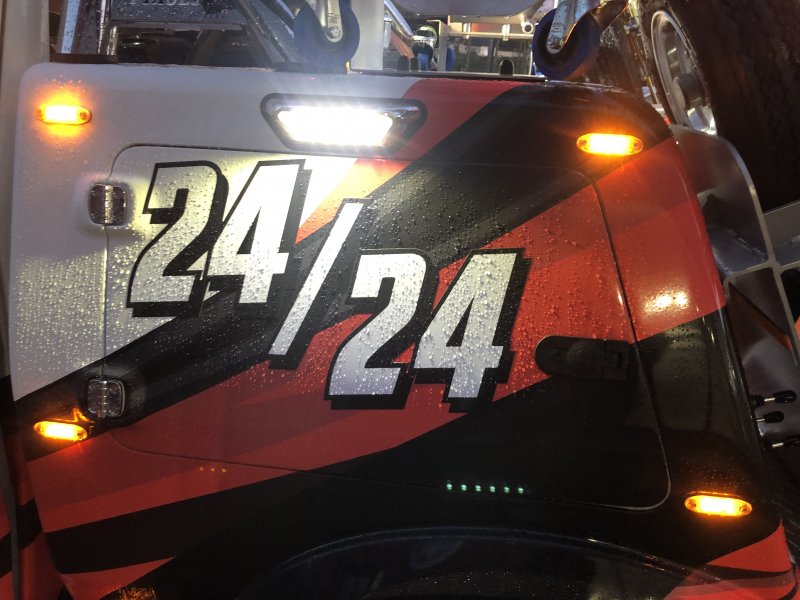

-Rear lighting with 4 LED lights embedded in the body

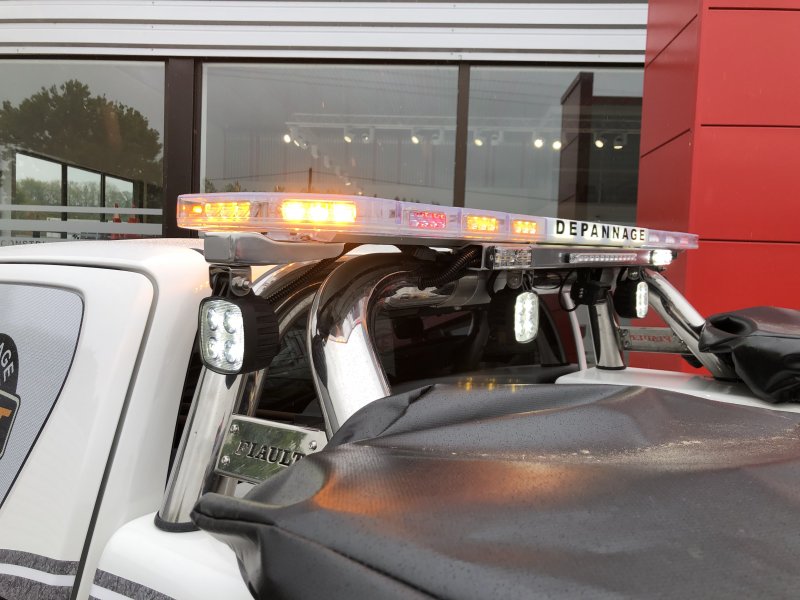

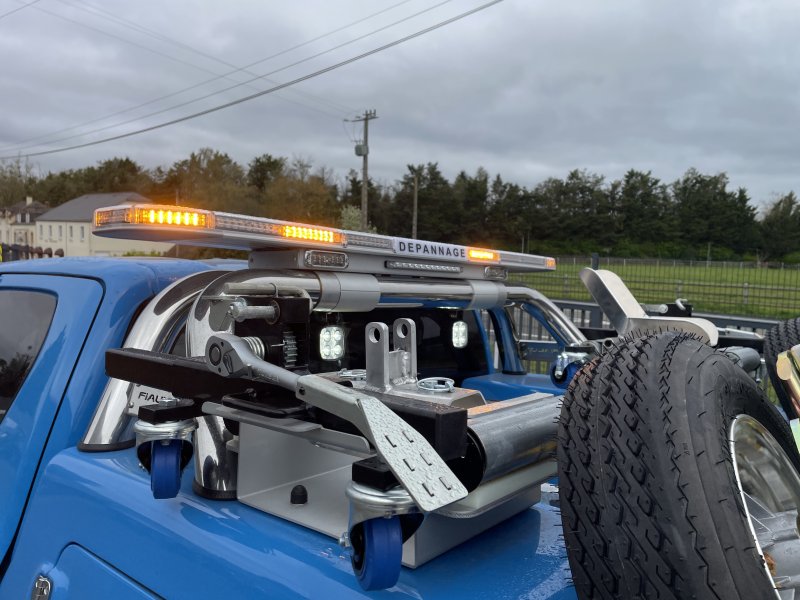

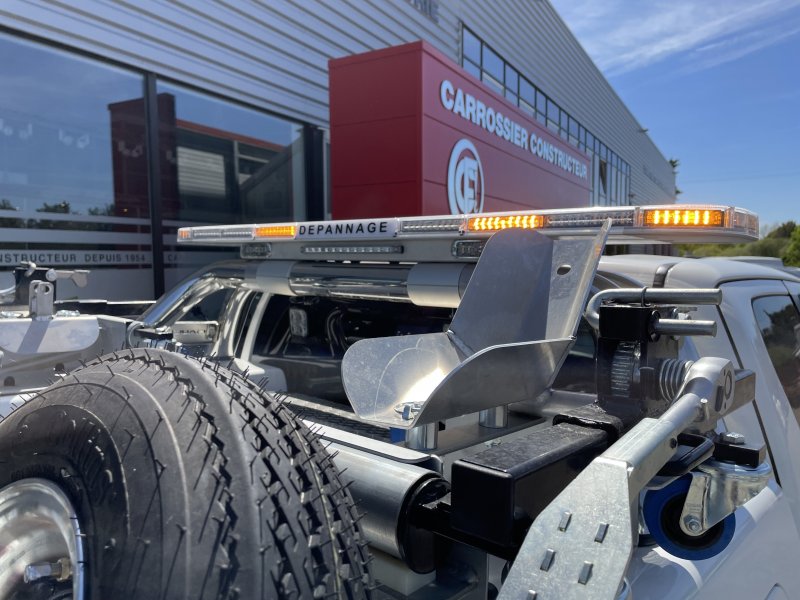

-Delux XPERT 1450 flasher bar with 8 LEDS and BREAKDOWN sign

-Reminder the signal lights in the XPERT lightbar

-VEHICLE CONFORMS TO EU REGULATION



Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.

TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA MODEL EURO 6 MANUAL GEARBOX

00-HILUX

[ Open for more informations ] [ Fold up ]

TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6
-Engine : 4 cylinders 2.4 L Turbo
-Gearbox : manual transmission 6 speed with shift indicator
-Power : 150 CH - engine couple : 400 N/m from 1600 to 2000 tr/mn
-Rear differential lock by push button
-Brakes : front discs and rear drums + anti-lock braking (ABS)
-Systems : Hill Start Assist (HAC) - Sway Control (TSC) - Traction Control (TRC) - Stability Control (VSC)
-White cabin - 2 seats - Power windows - Steering angle: 12,8m / 13,4m
-CD Radio - MP3 - Bluetooth - USB - 6 Speakers - steering wheel audio control
-Manual air conditioning - 7 driver & passengers airbags
-Tires 265 / 65R17 X17 inches on original aluminum rims
-Wheelbase : 3085mm - Length : 4900mm - Width : 1900mm - Height : 1850mm
-Original aluminum footboard

TOYOTA HILUX 2.8D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6 AUTOMATIC GEARBOX

00-HILUXBVA

[ Open for more informations ] [ Fold up ]

TOYOTA HILUX NG 2.8D 4X4 SPACE CAB XTRA MODEL EURO 6
-Engine : 4 cylinders 2.8 L Turbo
-Gearbox : automatic transmission 6 speed
-Power : 204 CH - engine couple : 500 N/m from 1600 to 2800 tr/mn
-Rear differential lock by push button
-Brakes : front discs and rear drums + anti-lock braking (ABS)
-Systems : Hill Start Assist (HAC) - Sway Control (TSC) - Traction Control (TRC) - Stability Control (VSC)
-White cabin - 2 seats - Power windows - Steering angle: 12,8m / 13,4m
-Radio - MP3 - Bluetooth - USB - 6 Speakers - steering wheel audio control
-Manual air conditioning - 7 driver & passengers airbags
-Tires 265 / 65R17 X17 inches on original aluminum rims
-Wheelbase : 3085mm - Length : 4900mm - Width : 1900mm - Height : 1850mm
-Original aluminum footboard

MAXILIFT PF3000 4x4 ON TOYOTA HILUX SPACE CAB

00-PF3000-HILUX

[ Open for more informations ] [ Fold up ]

MAXILIFT PF3000 4x4 ON TOYOTA HILUX SPACE CAB

SPECIAL MODIFICATION ON THE VEHICLE
-Rear suspension converted to pneumatic with pump and reservoir
-Two pneumatic cushions with automatic levelling system
-Adaptation of a ballast anti-squat under the front bumper

SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4

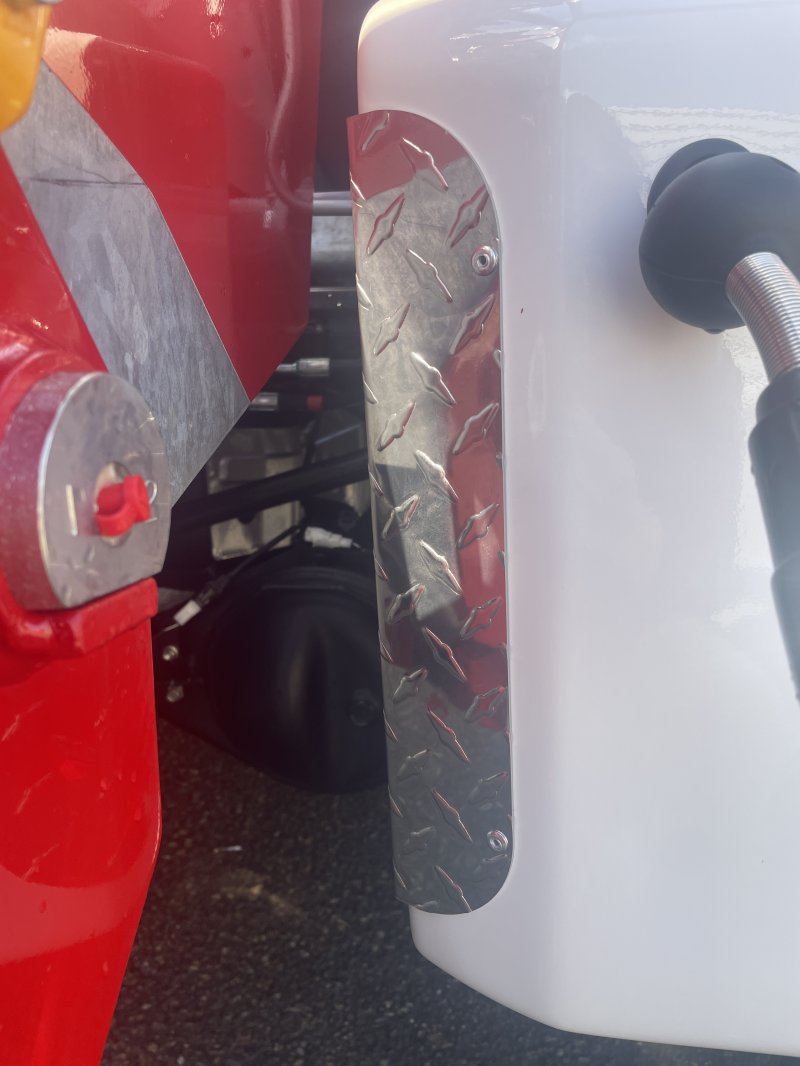

-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
-VEHICLE CONFORMS TO EU REGULATION

Supply a kit for electronic declutching of the front axle with a switch in the cab to obtain 2-wheel drive in slow version

0302M070

[ Open for more informations ] [ Fold up ]

Supply a kit for electronic declutching of the front axle with a switch in the cab to obtain 2-wheel drive in slow version (not available as standard) to improve the turning radius in basements or other delicate situations (on Toyota Hilux )

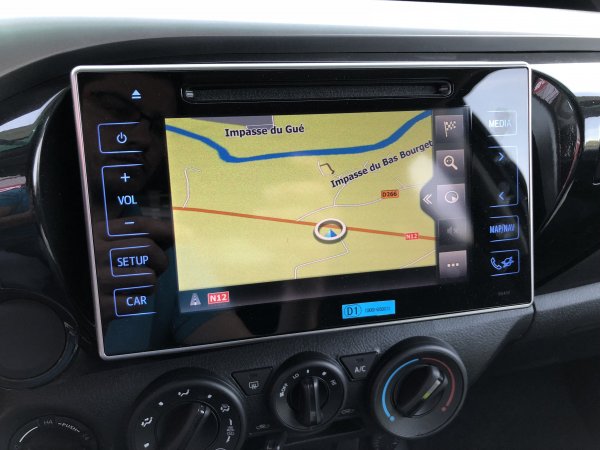

A Touch & Go system with Nav Sat & Coyote for Toyota Hilux 4x4

0803M040

[ Open for more informations ] [ Fold up ]

A Touch & Go system with TomTom Traffic Nav Sat, Coyote, Parking, Google Street, etc. with 3 years of updates included (mapping, Coyote) for 4x4 Toyota Hilux

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

0201M040

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

Reminder of traffic lights in the XPERT lightbar

0201M080

[ Open for more informations ] [ Fold up ]

Reminder of traffic lights in the XPERT lightbar

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

0204M010

[ Open for more informations ] [ Fold up ]

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

0502M140

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

0502M150

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

A towing dolly with inflatable fixed wheels type SPEED DOLLY galvanized 1380 Kg

0502M170

[ Open for more informations ] [ Fold up ]

A towing dolly with inflatable fixed wheels type SPEED DOLLY galvanized 1380 Kg (maximum speed: 90 km/h) (without support)

An open support on the equipment for dolly type SPEED DOLLY galvanized 1380 Kg and a closed support with hinged cover on each side of the vehicle

0502M190

[ Open for more informations ] [ Fold up ]

An open support on the equipment for dolly type SPEED DOLLY galvanized 1380 Kg and a closed support with hinged cover on each side of the vehicle to replace the steps for the telescopic bars (without dolly) (on 4x4)

Two wheel dollies type "CHARIOTTE " (without support)

0502M060

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

0502M080

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

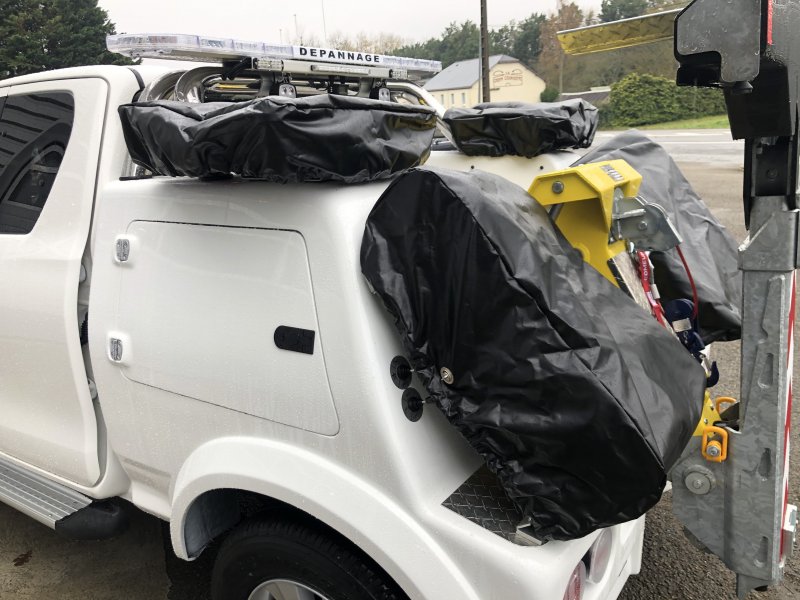

Four protective covers for wheel dollies type "FOURRIERE" and for wheel dollies type "GO-JACK" in BLACK color

0302M010

[ Open for more informations ] [ Fold up ]

Four protective covers for wheel dollies type "FOURRIERE" and for wheel dollies type "GO-JACK" in BLACK color

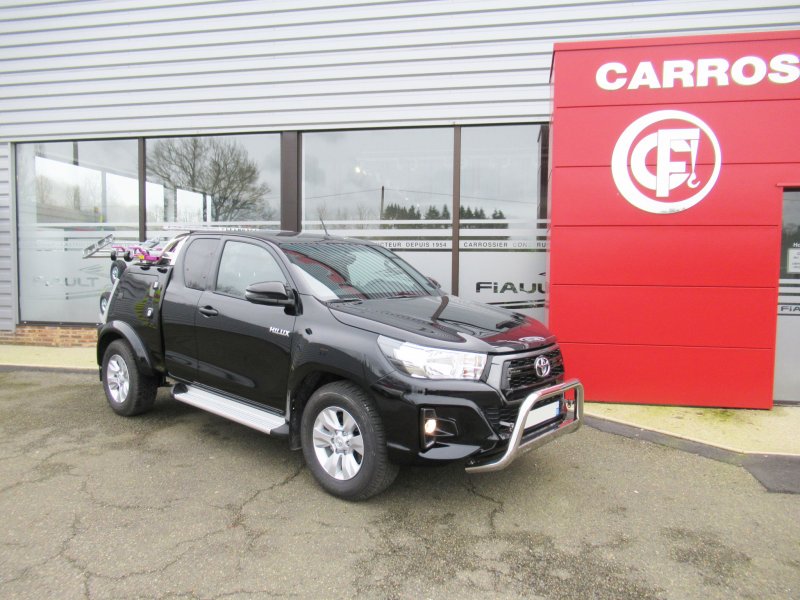

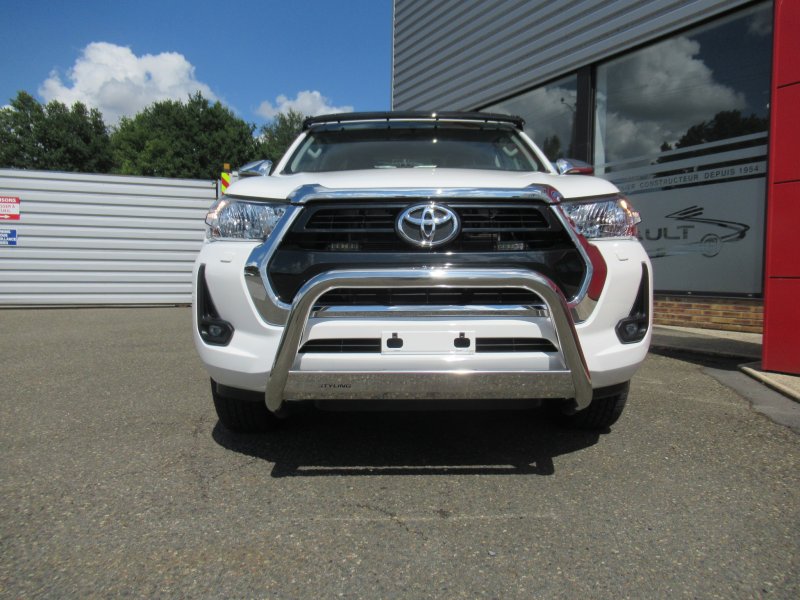

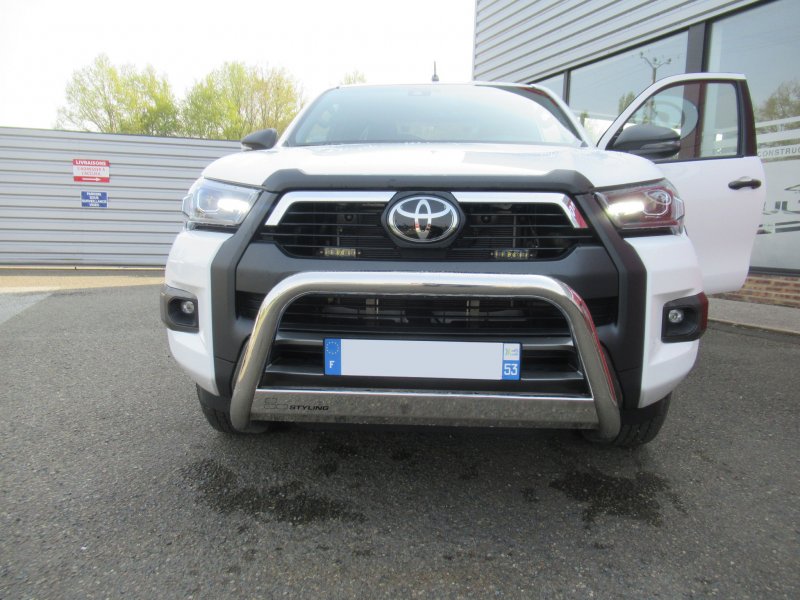

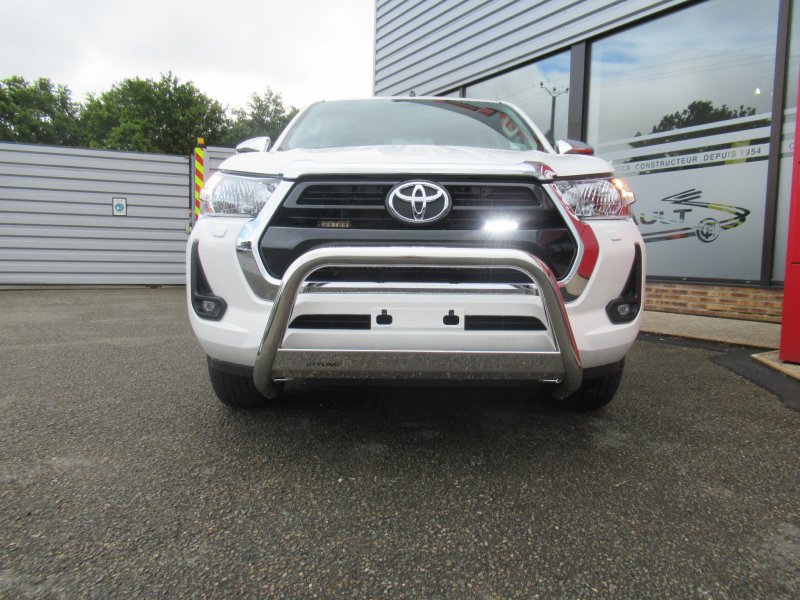

Supply and installation of chrome 4x4 bull bar

0302M020

[ Open for more informations ] [ Fold up ]

Supply and installation of chrome 4x4 bull bar

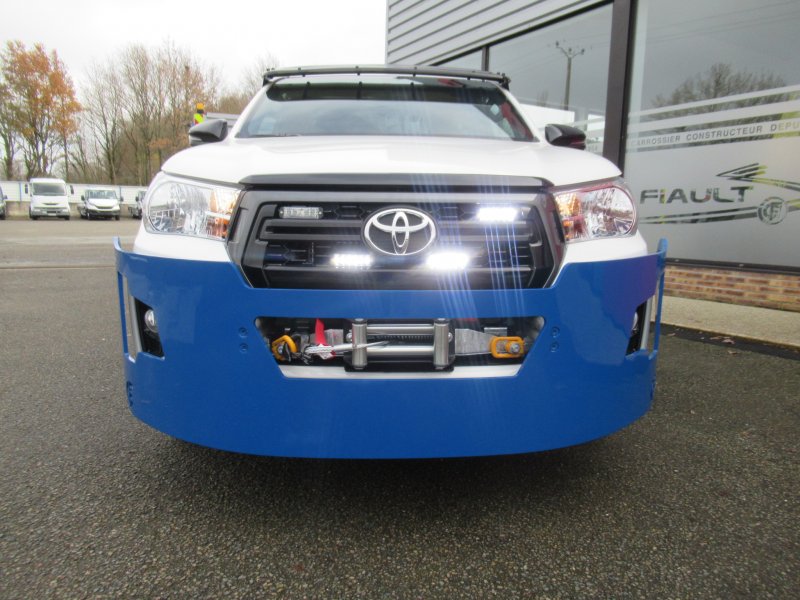

Supply and installation of a sheet steel bull bar

0302M025

[ Open for more informations ] [ Fold up ]

Supply and installation of a sheet steel bull bar with cutting for lights and cooling with rubber protection BLACK or painting or sticker in RED and WHITE for 4x4 (not homologated)

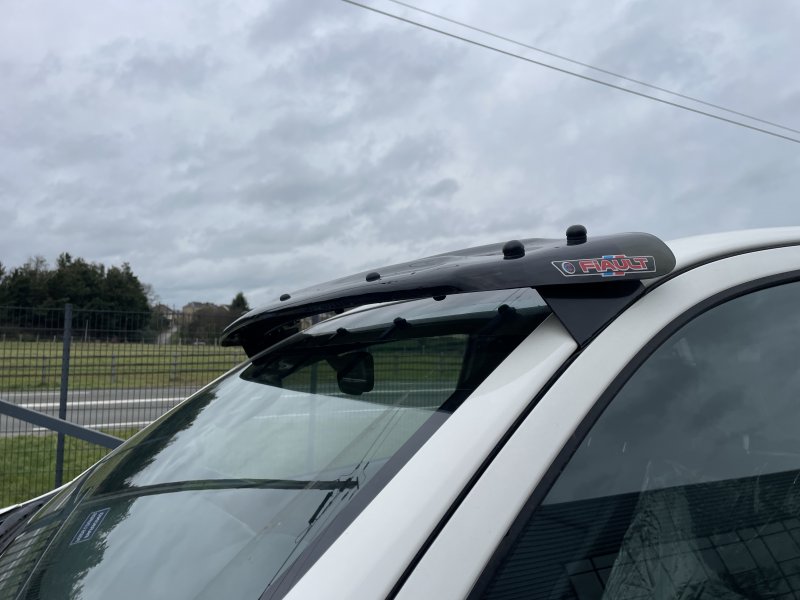

Supply and installation of a sun screen above the windshield

0302M050

[ Open for more informations ] [ Fold up ]

Supply and installation of a sun screen above the windshield

Adaptation of a second battery in the engine compartment

0302M100

[ Open for more informations ] [ Fold up ]

Adaptation of a second battery in the engine compartment for intensive use of the equipment (on Maxilift PF3000)

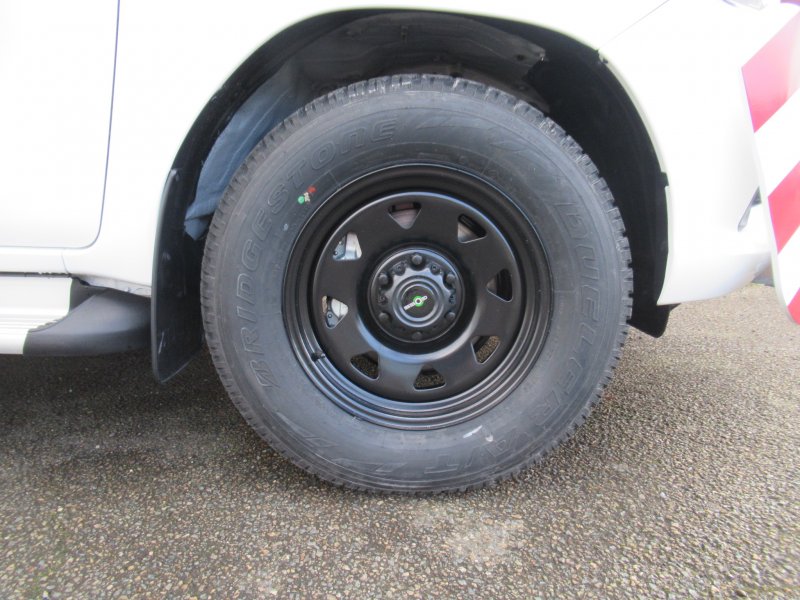

Replacement of the original 4 wheels by BLACK STEEL wheels reinforced

0510M030

[ Open for more informations ] [ Fold up ]

Replacement of the original 4 wheels by BLACK STEEL wheels reinforced

Replacement of the original 4 wheels with ALUMINUM wheels reinforced in GREY

0510M020

[ Open for more informations ] [ Fold up ]

Replacement of the original 4 wheels with ALUMINUM wheels reinforced in GREY

Painting the back of the cab in a standard non-metallic color (on chassis from 3T to 7T)

0313M150

[ Open for more informations ] [ Fold up ]

Painting the back of the cab in a standard non-metallic color (on chassis from 3T to 7T)

Painting the cab of a 4x4

0313M160

[ Open for more informations ] [ Fold up ]

Painting the cab of a 4x4 in a standard non-metallic color (on chassis from 3T to 7T)

Painting of the towing arm

0313M130

[ Open for more informations ] [ Fold up ]

Painting of the towing arm in a standard color (on MAXILIFT)

Painting of the second part (only) of the towing arm in a standard color

0313M135

[ Open for more informations ] [ Fold up ]

Painting of the second part (only) of the towing arm in a standard color RAL (to be indicated) :

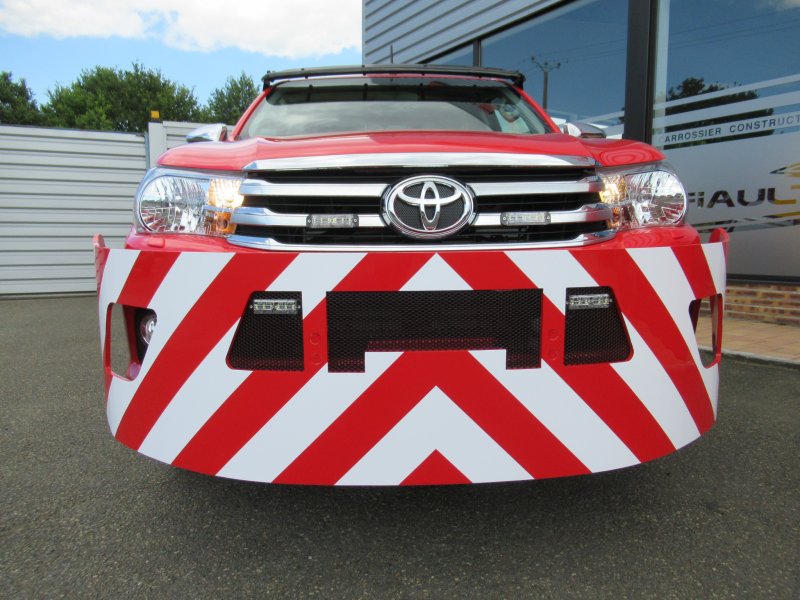

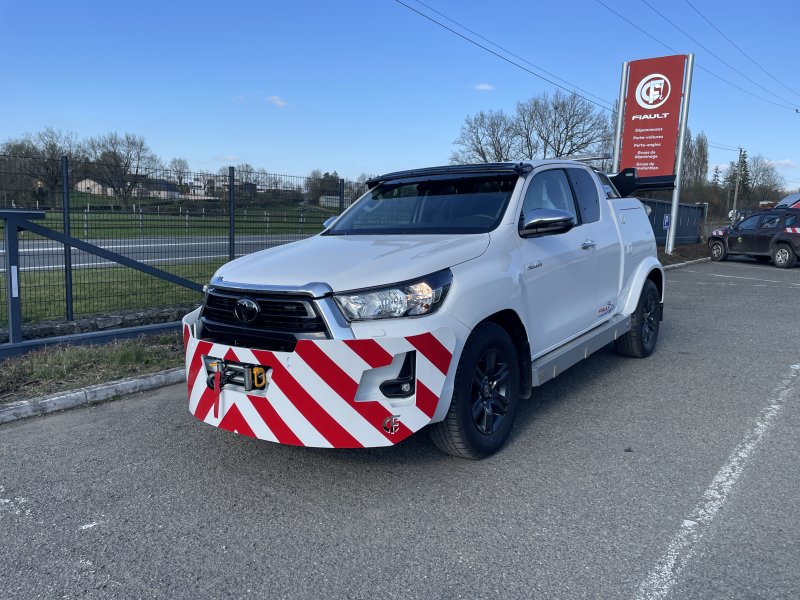

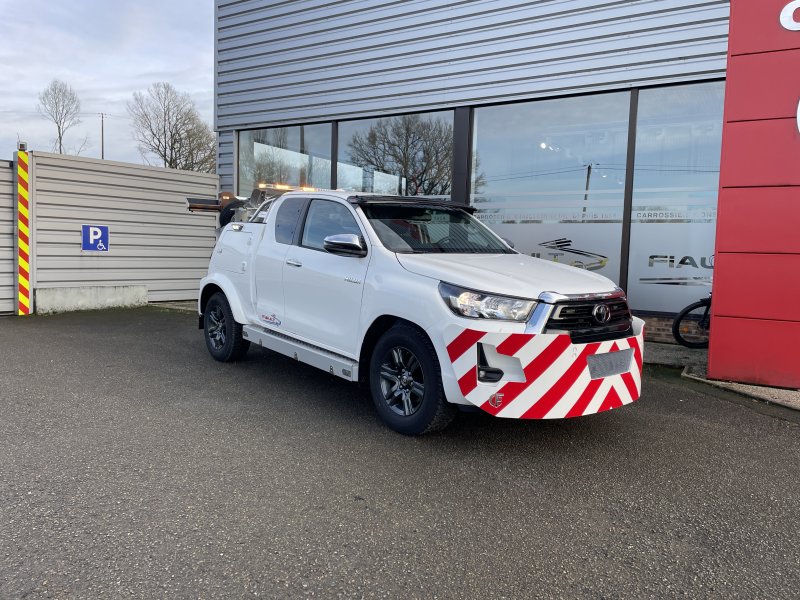

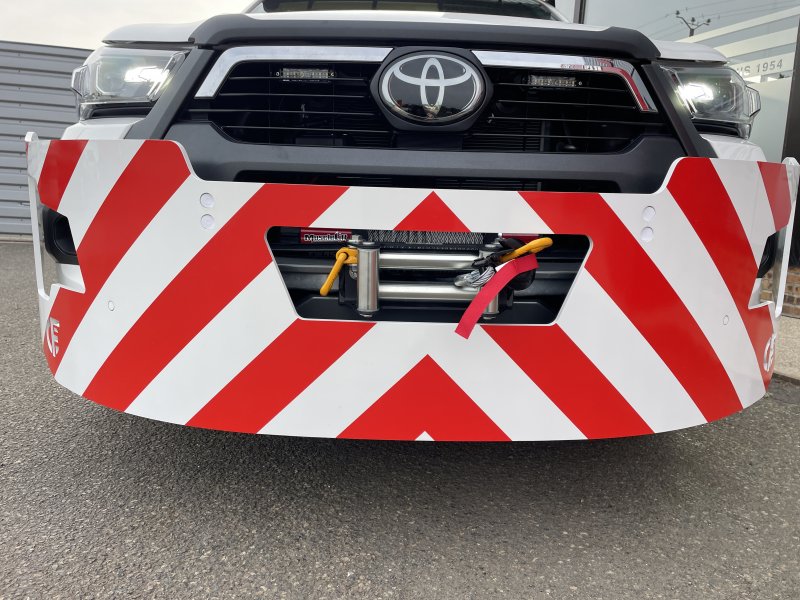

Painting of the front bumper in WHITE and RED

0313M120

[ Open for more informations ] [ Fold up ]

Painting of the front bumper in WHITE (same color as the cab) and RED RAL 3002

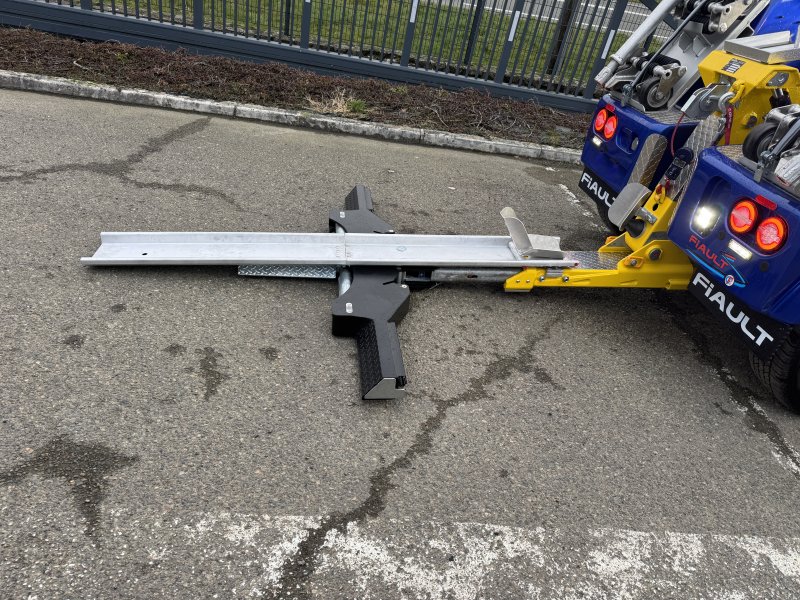

Motorcycle kit for SCC type PF3000

0503M040

[ Open for more informations ] [ Fold up ]

Motorcycle kit with a wheel shoe, two "MP3" bars and a galvanized motorcycle bar adaptable to the Second Car Carrier SCC, a special strap for handlebars and two stowage straps (on MAXILIFT)

Motorcycle kit SPECIAL for SCC type US on MAXILIFT PF3000

0503M050

[ Open for more informations ] [ Fold up ]

SPECIAL Motorcycle kit with a wheel shoe, two "MP3" bars and a galvanized motorcycle bar adaptable to the Second Car Carrier SCC type US, a special strap for handlebars and two stowage straps (on MAXILIFT)

Installation of an air compressor with hose and pressure gauge

1205M030

[ Open for more informations ] [ Fold up ]

Installation of an air compressor with hose and pressure gauge

A booster propulstation 12V 800A with charging station

1202M060

[ Open for more informations ] [ Fold up ]

A booster propulstation 12V 800A with charging station installed in a toolbox already provided on the equipment

A booster propulstation 12V 1200A with charging station

1202M070

[ Open for more informations ] [ Fold up ]

A booster propulstation 12V 1200A with charging station installed in a toolbox already provided on the equipment

A 220V charging unit with a 12V socket for charging the PROPULSTATION 12V booster in the workshop

1202M100

[ Open for more informations ] [ Fold up ]

A 220V charging unit with a 12V socket for charging the PROPULSTATION 12V booster in the workshop (charging the booster at least once a week)

An open aluminum tray fitted in the rear part of the cabin

0302M060

[ Open for more informations ] [ Fold up ]

An open aluminum tray fitted in the rear part of the cabin and accessible through the side doors (on 4x4 deep cabin)

An half open aluminum tray fitted in the rear part of the cabin and accessible through the side doors

0302M061

[ Open for more informations ] [ Fold up ]

An half open aluminum tray fitted in the rear part of the cabin and accessible through the side doors (on 4x4 deep cabin)

Two magnetic towing lights with electric cables and flexible yellow plate

0205M010

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights with electric cables and flexible yellow plate

Two suction towing lights with electric cables and flexible yellow plate

0205M020

[ Open for more informations ] [ Fold up ]

Two suction towing lights with electric cables and flexible yellow plate

Two magnetic towing lights 12V with radio control and flexible yellow plate

0205M035

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights 12V with radio control and flexible yellow plate

Two suction towing lights with radio control and flexible yellow plate

0205M040

[ Open for more informations ] [ Fold up ]

Two suction towing lights with radio control and flexible yellow plate

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

0205M070

[ Open for more informations ] [ Fold up ]

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

An additional 8 function radio transmitter (without radio receiver)

0901M020

[ Open for more informations ] [ Fold up ]

An additional 8-function radio transmitter (without radio receiver)

A protective cover for remote control 8 or 10 functions

0901M050

[ Open for more informations ] [ Fold up ]

A protective cover for remote control 8 or 10 functions (without remote control)

Two switches in the cab for raising and correcting the towing arm

0901M040

[ Open for more informations ] [ Fold up ]

Two switches in the cab for raising and correcting the towing arm in addition to the remote control (on MAXILIFT)

Rear view camera in color with original flat screen in cab

0803M015

[ Open for more informations ] [ Fold up ]

Rear view camera in color with original flat screen in cab only works when reverse gear is engaged) (for 4x4)

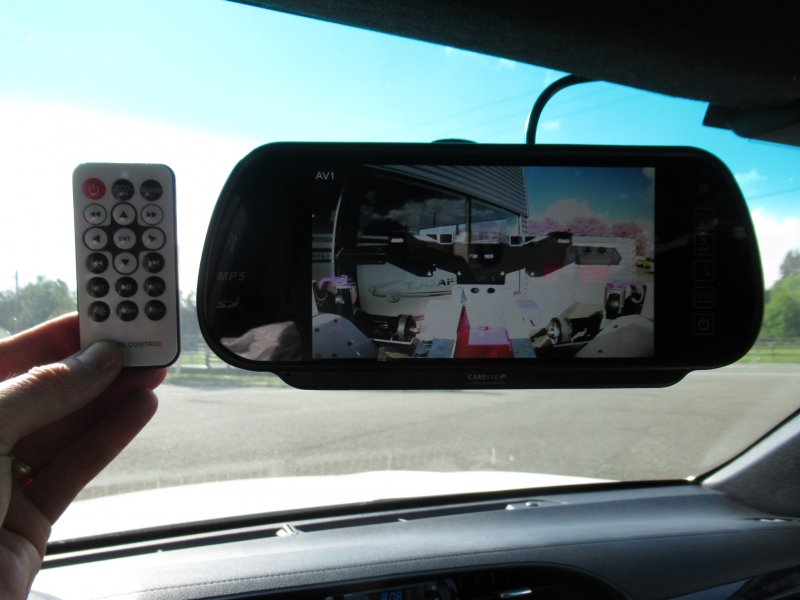

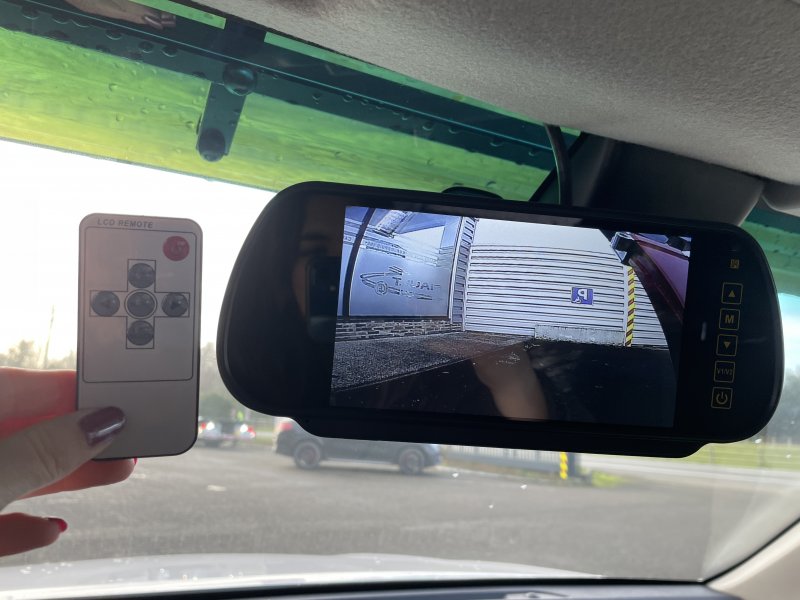

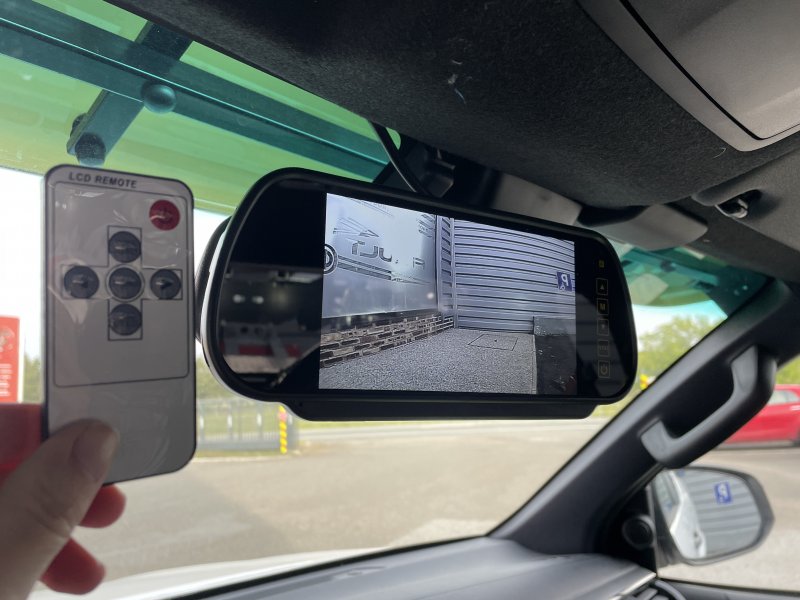

Rear view camera in color fitted on the roll-bar with flat screen positioned on the central mirror in the cabin

0803M020

[ Open for more informations ] [ Fold up ]

Rear view camera in color fitted on the roll-bar with flat screen positioned on the central mirror in the cabin (works even in driving) (for 4x4)

Manually extendable lifting boom with pivoting crane head

0607M013

[ Open for more informations ] [ Fold up ]

Manually extendable lifting boom with pivoting crane head (on MAXILIFT PF3000)

A special MAXILIFT PF 3000 crane head without support

1108M085

[ Open for more informations ] [ Fold up ]

A special MAXILIFT PF 3000 crane head without support

A special MAXILIFT PF 3000 crane head for automatic SCC without support

1108M086

[ Open for more informations ] [ Fold up ]

A special MAXILIFT PF 3000 crane head for automatic SCC without support

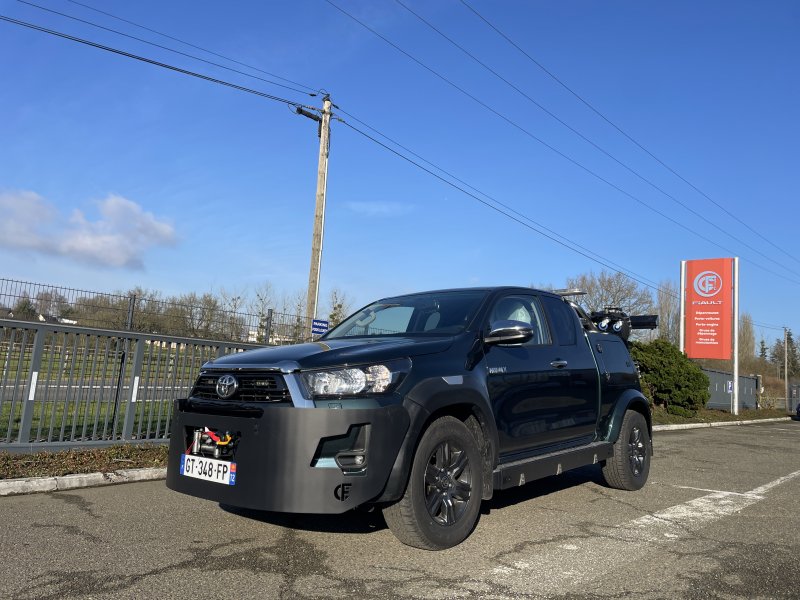

Four ton electric (12v) winch integrated into the front bumper

1102M050

[ Open for more informations ] [ Fold up ]

Four ton electric (12v) winch integrated into the front bumper and coupled with the remote control of the main winch

US type basket Second Car Carrier SCC with hydraulically articulated forks and remote control

0504M140

[ Open for more informations ] [ Fold up ]

US type basket Second Car Carrier SCC with hydraulically articulated forks and remote control replacing the standard SCC (on MAXILIFT)

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

0707M010

[ Open for more informations ] [ Fold up ]

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

Configurator
[ Open ]
TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA MODEL EURO 6 MANUAL GEARBOX

TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA MODEL EURO 6 MANUAL GEARBOX

00-HILUX

TOYOTA HILUX 2.8D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6 AUTOMATIC GEARBOX

TOYOTA HILUX 2.8D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6 AUTOMATIC GEARBOX

00-HILUXBVA

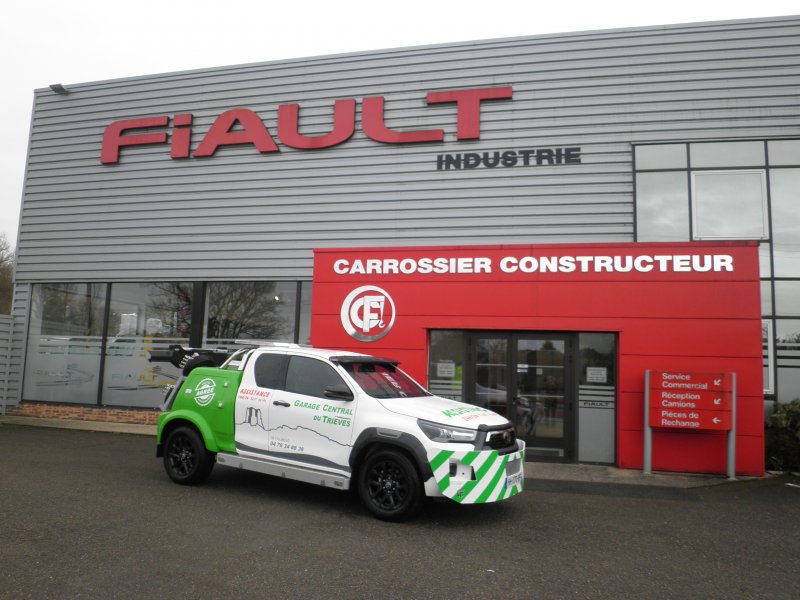

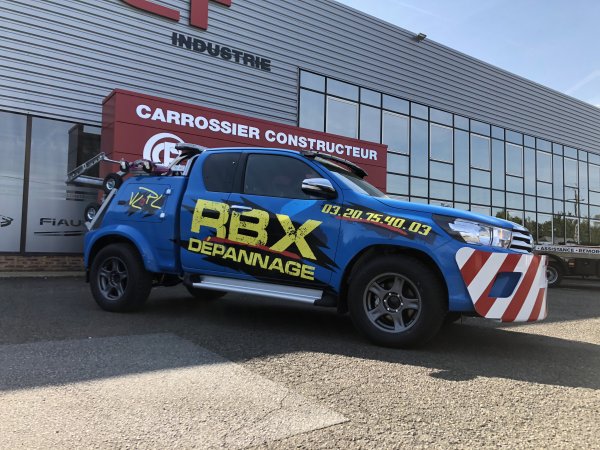

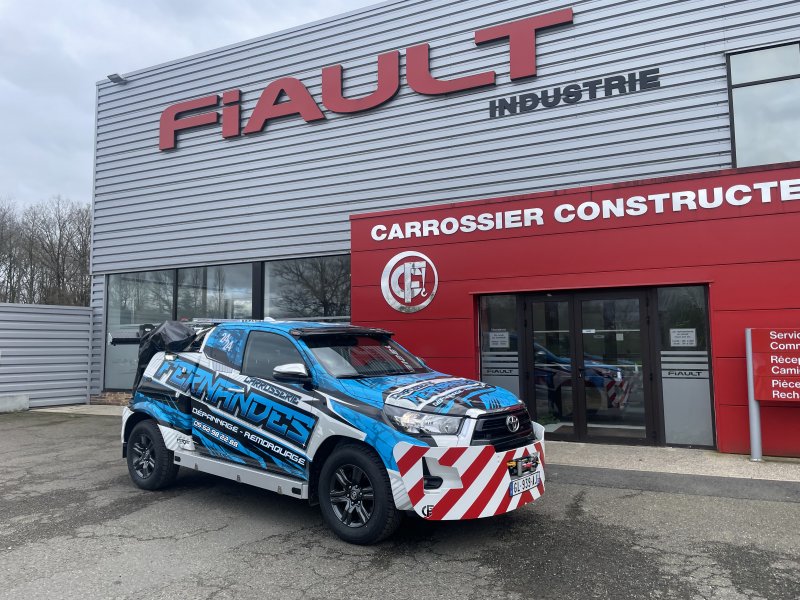

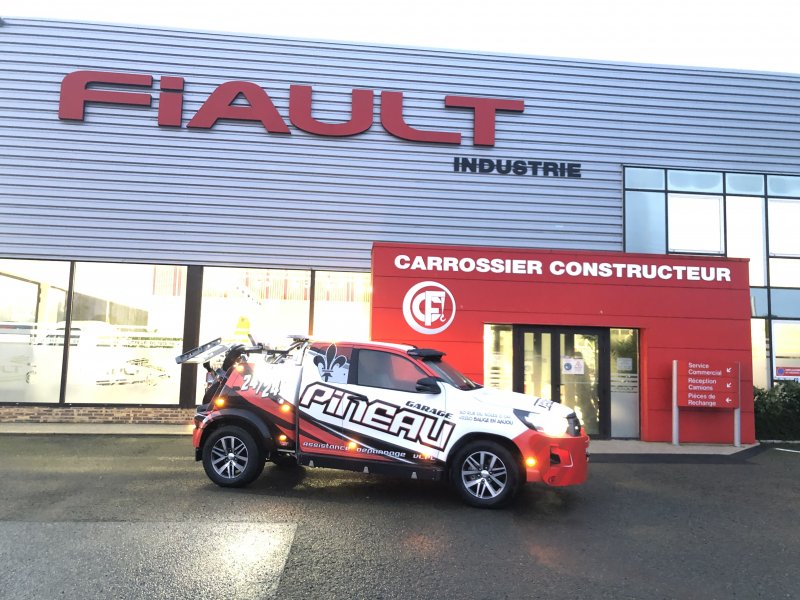

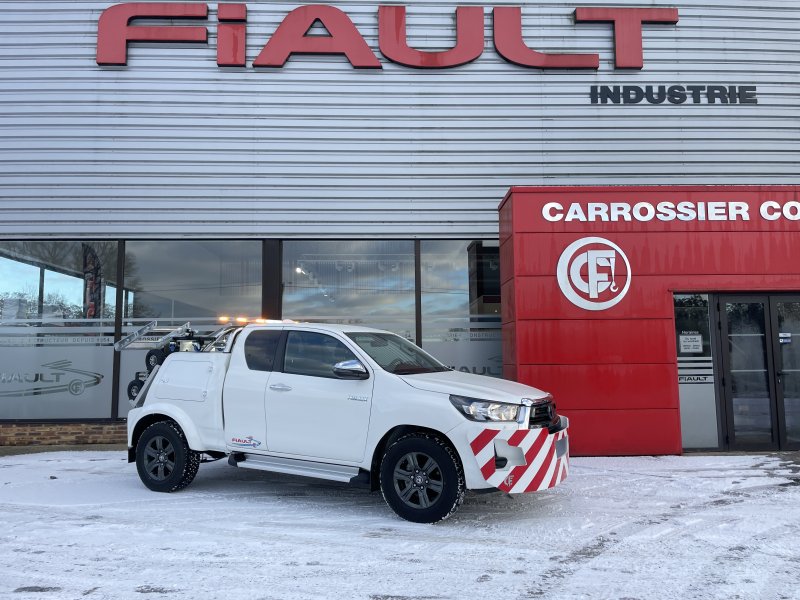

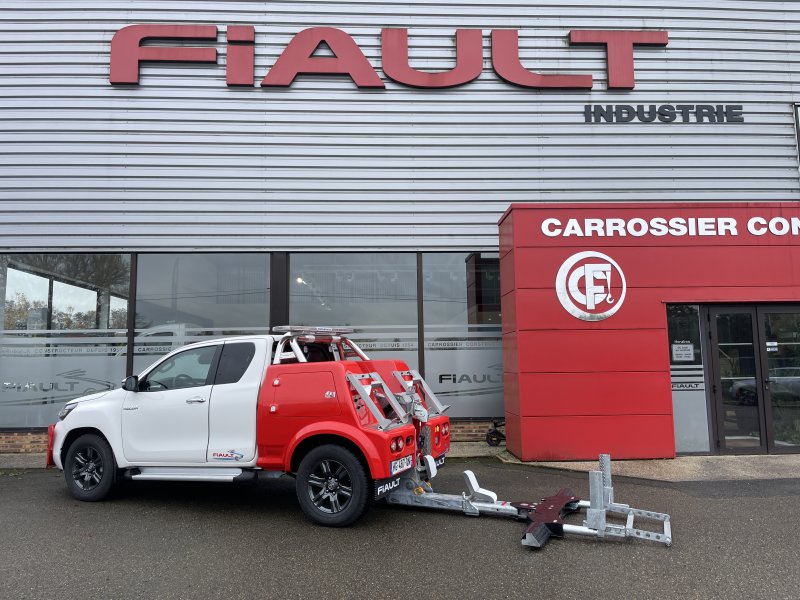

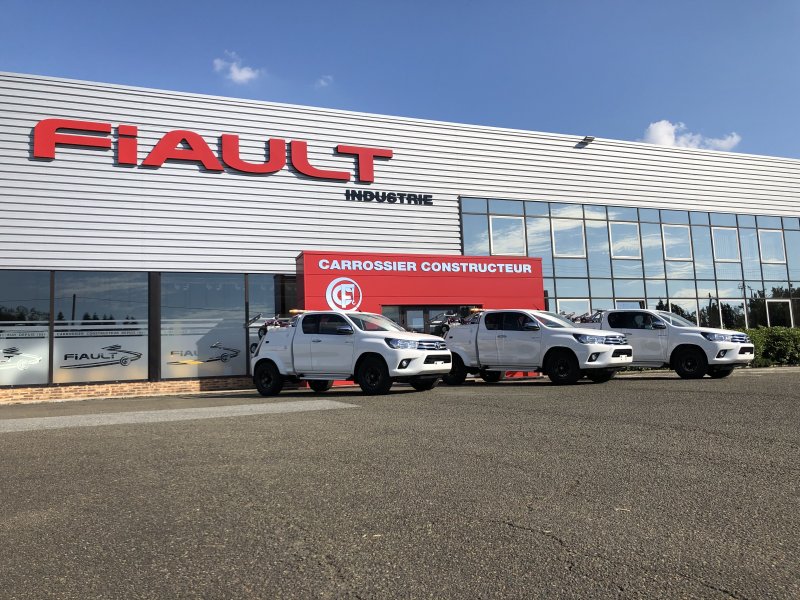

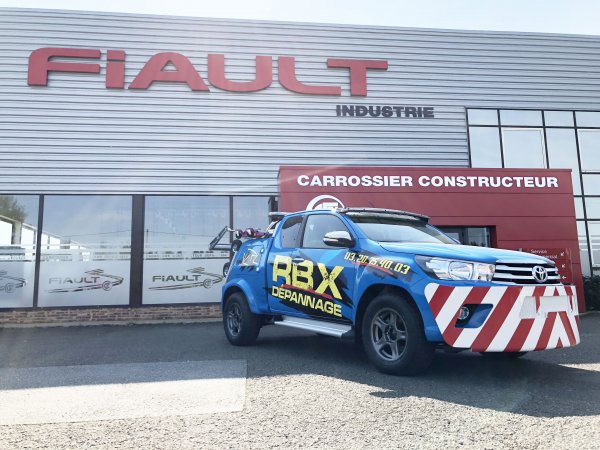

MAXILIFT PF3000 4x4 ON TOYOTA HILUX SPACE CAB

MAXILIFT PF3000 4x4 ON TOYOTA HILUX SPACE CAB

00-PF3000-HILUX

Generate the summary sheet

Fiche récapitulative

In order to generate your summary sheet, please fill in this contact form. We will contact you as soon as possible.
