Plat'Sol PF 65

Plat'Sol PF 65



PLAT'SOL PF65



On chassis cab : 12T to 19T

(Fitted on a PTO, a pin tow plug, a spare wheel and pneumatic rear suspension)

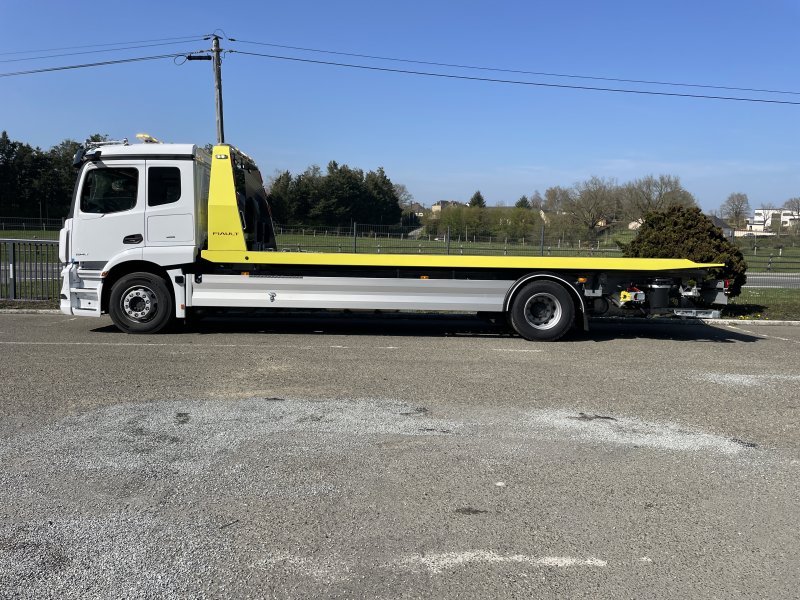

PLAT'SOL PF65 : SLIDING DECK CAR TRANSPORTER WITH CENTRE CHAIN

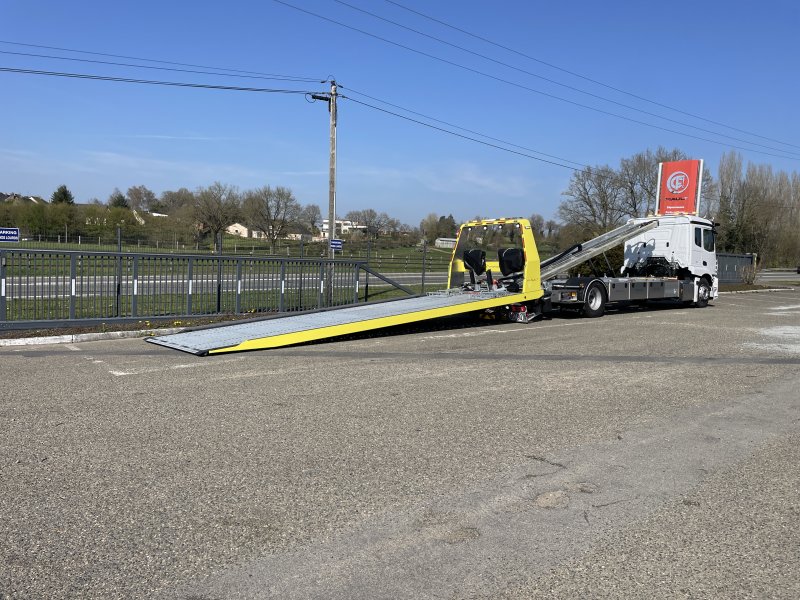

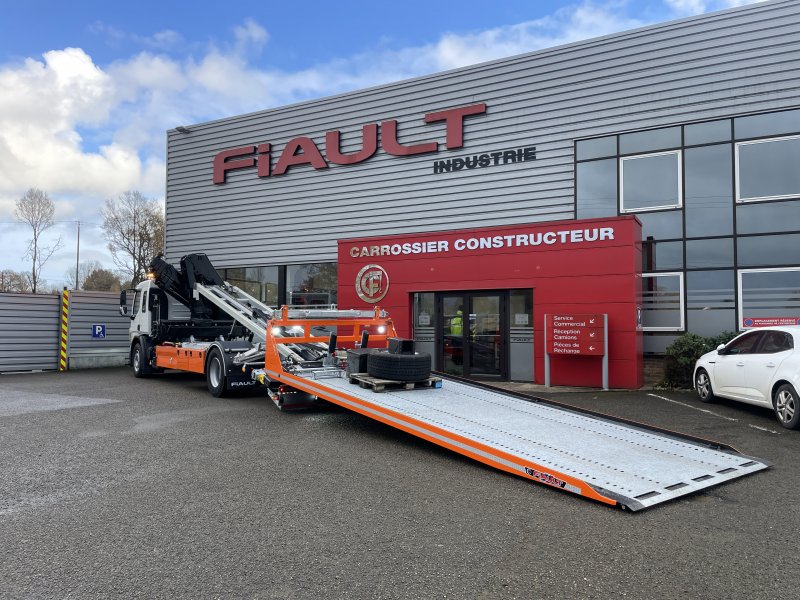

-Tilt and slide load platform with centre chain and low loading angle approximately 5°

-Deck slides on reinforced galvanised steel rails

-Hydraulic circuit with high capacity pump, filtered reservoir and level

-Two pistons with anti return security locks for raising or lowering deck

-Sliding of deck with chain via hydraulic actuator

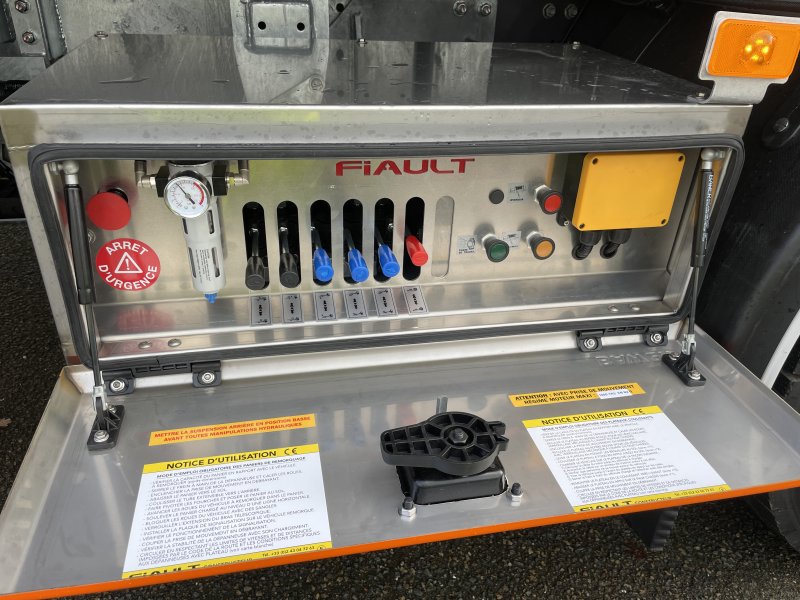

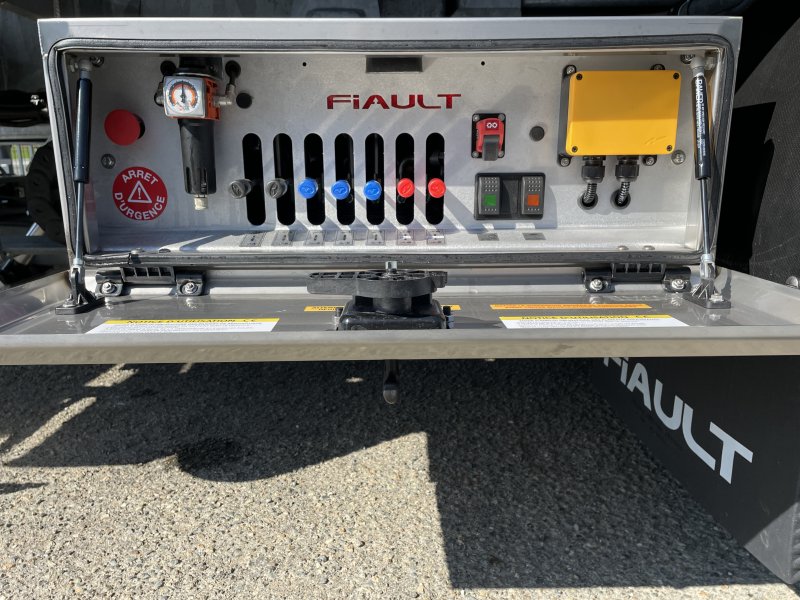

-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side (or left)

-Integrated shock proof wheel arches with mud guards

-Two adjustable rear roller type stabilisers

-Modular galvanised, anti slip 4mm bed type "CAILLEBOTIS", 50mm tubular sides and wedging holes over the entire length (no paint on deck)

-Bar to protect the cabin with two rubber stops

-A 4.5 tons hydraulic winch with 30m Ø10 cable with guide

-Four adjustable wheel clamps on bed

-Front face and sides of deck painted, color to define RAL :

-White reflective tape on the edge of the platform

-VEHICLE CONFORMS TO EU REGULATIONS



Dimensions :

Exterior bed length = 5500 mm to 6500 mm (to define)

Exterior bed width = 2400 mm

Technical capacity = 6500 Kg

Loading angle = 5° (approx)

Payload = to calculate according to the chassis cab



Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.

PLAT'SOL PF65

00-PF65

[ Open for more informations ] [ Fold up ]

PLAT'SOL PF65 : SLIDING DECK CAR TRANSPORTER WITH CENTRE CHAIN
-Tilt and slide load platform with centre chain and low loading angle approximately 5°
-Deck slides on reinforced galvanised steel rails
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two pistons with anti return security locks for raising or lowering deck
-Sliding of deck with chain via hydraulic actuator
-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side (or left)
-Integrated shock proof wheel arches with mud guards
-Two adjustable rear roller type stabilisers
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS

Dimensions :
Exterior bed length = 5500 mm to 6500 mm
Exterior bed width = 2400 mm
Technical capacity = 6500 Kg
Loading angle = 5° (approx)
Payload = to calculate according to the chassis cab

Modular, galvanised, anti slip 4mm bed type CAILLEBOTIS, 50mm tubular sides

0309M100

[ Open for more informations ] [ Fold up ]

Modular galvanised, anti slip 4mm bed type CAILLEBOTIS, 50mm tubular sides and wedging holes over the entire length (no paint on deck)

Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 50mm tubular sides

0309M111

[ Open for more informations ] [ Fold up ]

Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 50mm tubular sides and wedging holes over the entire length replacing the deck modular galvanised, 4mm bed type CAILLEBOTIS

Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 12mm sides with corner piece

0309M115

[ Open for more informations ] [ Fold up ]

Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 12mm sides with corner piece and wedging holes over the entire length replacing the deck modular galvanised, 4mm bed type CAILLEBOTIS

Supplement for platform width at 2.55 m

0309M080

[ Open for more informations ] [ Fold up ]

Supplement for platform width at 2.55 m

Hot dip galvanization of the tilting part with sleeper and stand (platform 5 to 7 m)

0312M050

[ Open for more informations ] [ Fold up ]

Hot dip galvanization of the tilting part with sleeper and stand (platform 5 to 7 m)

Hot dip galvanization of the tilting part with sleeper and stand (platform 7 to 9 m)

0312M055

[ Open for more informations ] [ Fold up ]

Hot dip galvanization of the tilting part with sleeper and stand (platform 7 to 9 m)

A 4T5 hydraulic winch with 30 m cable diam. 10 and cable guide

1103M011

[ Open for more informations ] [ Fold up ]

A 4T5 hydraulic winch with 30 m cable diam. 10 and cable guide

7.1 ton hydraulic winch. 30m cable with guide (fitted in the middle no translation)

1103M030

[ Open for more informations ] [ Fold up ]

7.1 ton hydraulic winch. 30m cable with guide (fitted in the middle no translation) replacing the 4.5 ton hydraulic winch

Replacing the fixed winch cable hook with a rotating hook

1104M040

[ Open for more informations ] [ Fold up ]

Replacing the fixed winch cable hook with a rotating hook

A rubber end stop for winch cable

1104M050

[ Open for more informations ] [ Fold up ]

A rubber end stop for winch cable

Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch

1106M020

[ Open for more informations ] [ Fold up ]

Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch

Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box

1110M040

[ Open for more informations ] [ Fold up ]

Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box

A hook type 2 with shackle on winch cable

1109M010

[ Open for more informations ] [ Fold up ]

A hook type 2 with shackle on winch cable

Hydraulic system allowing for lateral displacement of the winch with radio control

1110M020

[ Open for more informations ] [ Fold up ]

Hydraulic system allowing for lateral displacement of the winch with radio control

Bar to protect the cabin with two rubber stops

0303M015

[ Open for more informations ] [ Fold up ]

Bar to protect the cabin with two rubber stops

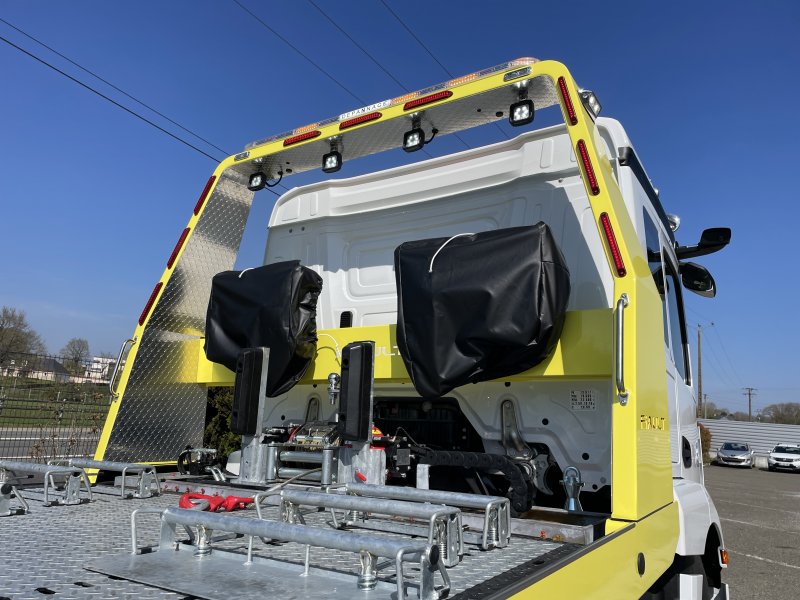

Roll-bar raised to protect the cabine type FLY and stainless steel handles

0303M030

[ Open for more informations ] [ Fold up ]

Roll-bar raised to protect the cabine type FLY and stainless steel handles

Stylized interior lining of the FLY with sheets of aluminum checkered

0303M035

[ Open for more informations ] [ Fold up ]

Stylized interior lining of the FLY with sheets of aluminum checkered

A panoramic mirror to aid the approach of the vehicle on the platform fitted under the front of the front face

0803M050

[ Open for more informations ] [ Fold up ]

A panoramic mirror to aid the approach of the vehicle on the platform fitted under the front of the front face

Eight red LED lights on the perimeter of the FLY

0207M010

[ Open for more informations ] [ Fold up ]

Eight red LED lights on the perimeter of the FLY

Ten red LED lights on the perimeter of the FLY

0207M015

[ Open for more informations ] [ Fold up ]

Ten red LED lights on the perimeter of the FLY

Four adjustable wheel clamps on bed

0501M010

[ Open for more informations ] [ Fold up ]

Four adjustable wheel clamps on bed

Four adjustable wheel clamps on bed (2 extra large with flat and 2 standard)

0501M012

[ Open for more informations ] [ Fold up ]

Four adjustable wheel clamps on bed (2 extra large with flat and 2 standard)

A remote control for winch, tilt and slide of the platform and working light (optional)

0902M045

[ Open for more informations ] [ Fold up ]

A remote control for winch, tilt and slide of the platform and working light (optional)

A protective cover for remote control 8 or 10 functions

0901M050

[ Open for more informations ] [ Fold up ]

A protective cover for remote control 8 or 10 functions (without remote control)

An additional 8 function radio transmitter (without radio receiver)

0901M020

[ Open for more informations ] [ Fold up ]

An additional 8-function radio transmitter (without radio receiver)

A remote control for raising and extending the Second Car Carrier SCC

0902M050

[ Open for more informations ] [ Fold up ]

A remote control for raising and extending the Second Car Carrier SCC

An additional 15-function radio transmitter (without radio receiver)

0901M030

[ Open for more informations ] [ Fold up ]

An additional 15-function radio transmitter (without radio receiver)

Two beacons fitted on the top of the cabin

0203M020

[ Open for more informations ] [ Fold up ]

Two beacons fitted on the top of the cabin

Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER

0201M020

[ Open for more informations ] [ Fold up ]

Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER

Lightbar 1750mm type XPERT with 4 beacons, a central light and sign WRECKER

0201M030

[ Open for more informations ] [ Fold up ]

Lightbar 1750mm type XPERT with 4 beacons, a central light and sign WRECKER

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

0201M040

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

Delux SKY AIR 1780 flasher bar with 22 LEDS and BREAKDOWN sign

0201M050

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1780 flasher bar with 22 LEDS and BREAKDOWN sign

Reminder of traffic lights in the XPERT lightbar

0201M080

[ Open for more informations ] [ Fold up ]

Reminder of traffic lights in the XPERT lightbar

A work light fitted to the front of the equipment

0101M010

[ Open for more informations ] [ Fold up ]

A work light fitted to the front of the equipment

Two integrated work lights at the head of the platform

0101M020

[ Open for more informations ] [ Fold up ]

Two integrated work lights at the head of the platform

Four work lights fitted to the front of the equipment

0101M030

[ Open for more informations ] [ Fold up ]

Four work lights fitted to the front of the equipment

LED work lamps in a bar form 19200 lm luminosity 12/24 V length 1000mm located under the FLY with support

0101M070

[ Open for more informations ] [ Fold up ]

LED work lamps in a bar form 19200 lm luminosity 12/24 V length 1000mm located under the FLY with support

A work light fitted at the rear of the equipment

0101M040

[ Open for more informations ] [ Fold up ]

A work light fitted at the rear of the equipment

Two work lights fitted at the rear of the equipment

0101M050

[ Open for more informations ] [ Fold up ]

Two work lights fitted at the rear of the equipment

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

0106M010

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

0106M020

[ Open for more informations ] [ Fold up ]

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

0106M050

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

0204M010

[ Open for more informations ] [ Fold up ]

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

Three vests, three cones, shovel and broom with mounts

0706M010

[ Open for more informations ] [ Fold up ]

Three vests, three cones, shovel and broom with mounts

A sandbox for absorbent product with support

0704M010

[ Open for more informations ] [ Fold up ]

A sandbox for absorbent product with support

Two sandbox for absorbent product with support

0704M020

[ Open for more informations ] [ Fold up ]

Two sandbox for absorbent product with support

Two fire extinguishers mounted in a secure locker

0705M010

[ Open for more informations ] [ Fold up ]

Two fire extinguishers mounted in a secure locker

A 6 Kg fire extinguisher mounted in a secure locker

0705M020

[ Open for more informations ] [ Fold up ]

A 6 Kg fire extinguisher mounted in a secure locker

Two 6 Kg fire extinguisher mounted in a secure locker

0705M030

[ Open for more informations ] [ Fold up ]

Two 6 Kg fire extinguisher mounted in a secure locker

A plastic toolbox 750mm

0401M020

[ Open for more informations ] [ Fold up ]

A plastic toolbox 750mm

A plastic toolbox 1000mm

0401M030

[ Open for more informations ] [ Fold up ]

A plastic toolbox 1000mm

A plastic toolbox with opening from above 600mm

0401M040

[ Open for more informations ] [ Fold up ]

A plastic toolbox with opening from above 600mm

A plastic toolbox with opening from above 850mm

0401M050

[ Open for more informations ] [ Fold up ]

A plastic toolbox with opening from above 850mm

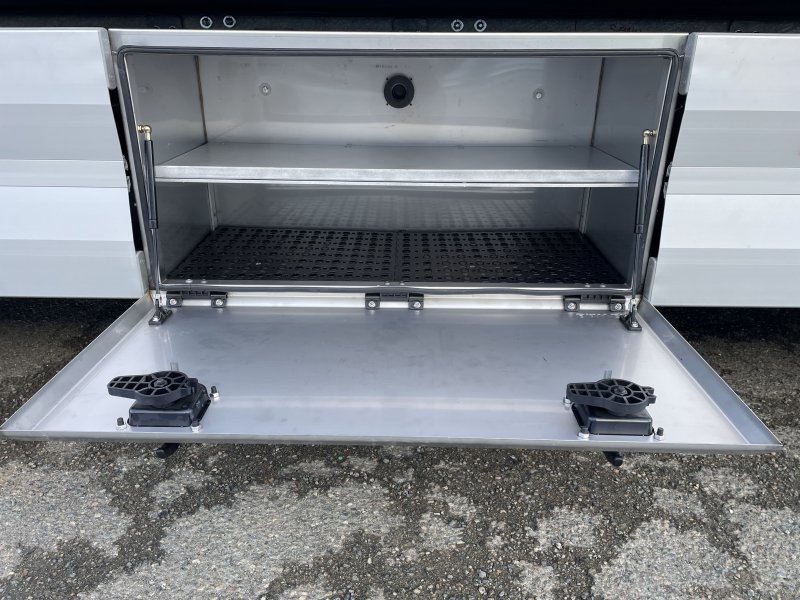

An inox toolbox 800mm

0402M030

[ Open for more informations ] [ Fold up ]

An inox toolbox 800mm

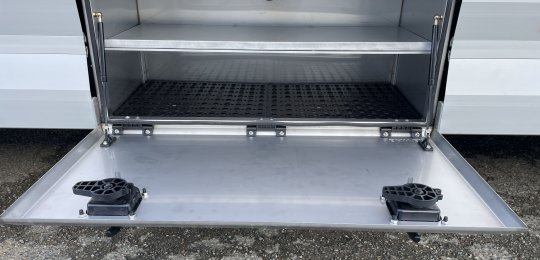

An inox toolbox 1000mm

0402M040

[ Open for more informations ] [ Fold up ]

An inox toolbox 1000mm

A stainless steel toolbox with top opening over the entire width fitted on the front of equipment

0402M120

[ Open for more informations ] [ Fold up ]

A stainless steel toolbox with top opening over the entire width fitted on the front of equipment

LED ceiling lighting in a toolbox

0107M010

[ Open for more informations ] [ Fold up ]

LED ceiling lighting in a toolbox

An open box with 3 plastic 10 liter jerricans with support

0404M010

[ Open for more informations ] [ Fold up ]

An open box with 3 plastic 10 liter jerricans with support

An open box with 3 steel 10 liter jerricans with support

0404M020

[ Open for more informations ] [ Fold up ]

An open box with 3 steel 10 liter jerricans with support

A closed box with 3 steel 10 liter jerricans with support

0404M030

[ Open for more informations ] [ Fold up ]

A closed box with 3 steel 10 liter jerricans with support

A washstand tank with faucet on a support

0404M060

[ Open for more informations ] [ Fold up ]

A washstand tank with faucet on a support

A 100 liter tank for polluted fuel recovery

0404M040

[ Open for more informations ] [ Fold up ]

A 100 liter tank for polluted fuel recovery with a pneumatic pump and a suction hose

An open galvanized mesh tray for chains with support

0405M010

[ Open for more informations ] [ Fold up ]

An open galvanized mesh tray for chains with support

Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)

0502M011

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)

0502M021

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)

An open support on the equipment for two wheel dollies type "GO-JACK 5211" (without dollies)

0502M031

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "GO-JACK 5211" (without dollies)

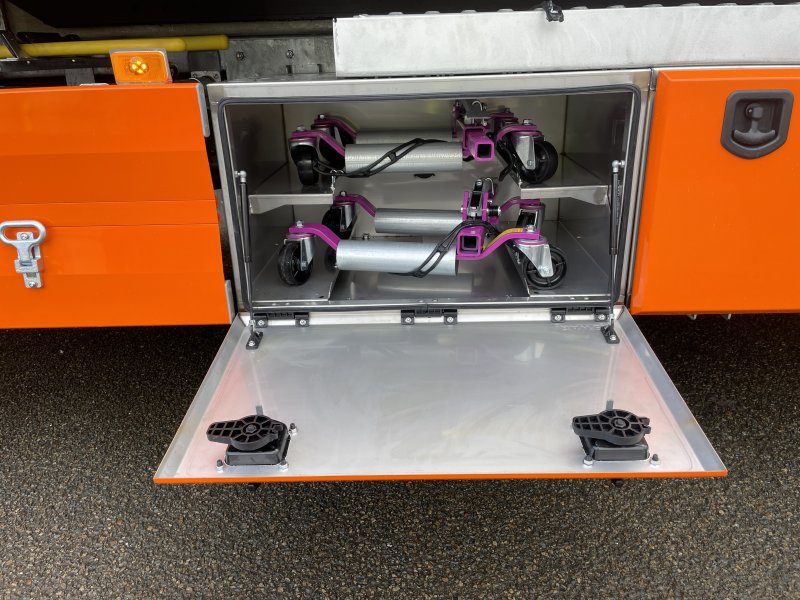

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 5211" (without dollies)

0502M041

[ Open for more informations ] [ Fold up ]

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 5211" (without dollies)

Two wheel dollies type "CHARIOTTE " (without support)

0502M060

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

0502M070

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

0502M080

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)

0502M090

[ Open for more informations ] [ Fold up ]

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)

Two wheel dollies type "GO-JACK 6313" (without support)

0502M100

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "GO-JACK 6313" (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)

0502M110

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)

An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)

0502M120

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)

A closed steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313"

0502M130

[ Open for more informations ] [ Fold up ]

A closed steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313" (without dollies)

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313"

0502M135

[ Open for more informations ] [ Fold up ]

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313" (without dollies)

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

0502M140

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

0502M150

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)

0502M160

[ Open for more informations ] [ Fold up ]

A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)

A towing dolly with inflatable fixed wheels type SPEED DOLLY galvanized 1380 Kg

0502M170

[ Open for more informations ] [ Fold up ]

A towing dolly with inflatable fixed wheels type SPEED DOLLY galvanized 1380 Kg (maximum speed: 90 km/h) (without support)

An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars

0502M180

[ Open for more informations ] [ Fold up ]

An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars (without trolley) (on equipment excluding 4x4)

Two jumper cables with two 12V and 24V plugs on the front right of the equipment

1202M020

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs on the front right of the equipment

Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment

1202M040

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment

Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)

1202M050

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)

A booster propulstation 12V 800A with charging station

1202M060

[ Open for more informations ] [ Fold up ]

A booster propulstation 12V 800A with charging station installed in a toolbox already provided on the equipment

A booster propulstation 12V 1200A with charging station

1202M070

[ Open for more informations ] [ Fold up ]

A booster propulstation 12V 1200A with charging station installed in a toolbox already provided on the equipment

A booster propulstation 12V/24V 2400/1200A with charging station

1202M080

[ Open for more informations ] [ Fold up ]

A booster propulstation 12V/24V 2400/1200A with charging station installed in a toolbox already provided on the equipment

A special motorcycle wedge with an articulated and adjustable shoe

0503M010

[ Open for more informations ] [ Fold up ]

A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment

A return pulley type DIABOLO with 6 sockets in the floor and support

1108M020

[ Open for more informations ] [ Fold up ]

A return pulley type DIABOLO with 6 sockets in the floor and support

Eight angled roller cable guides fixed to bed

1108M030

[ Open for more informations ] [ Fold up ]

Eight angled roller cable guides fixed to bed

An extra return pulley type DIABOLO with support

1108M010

[ Open for more informations ] [ Fold up ]

An extra return pulley type DIABOLO with support

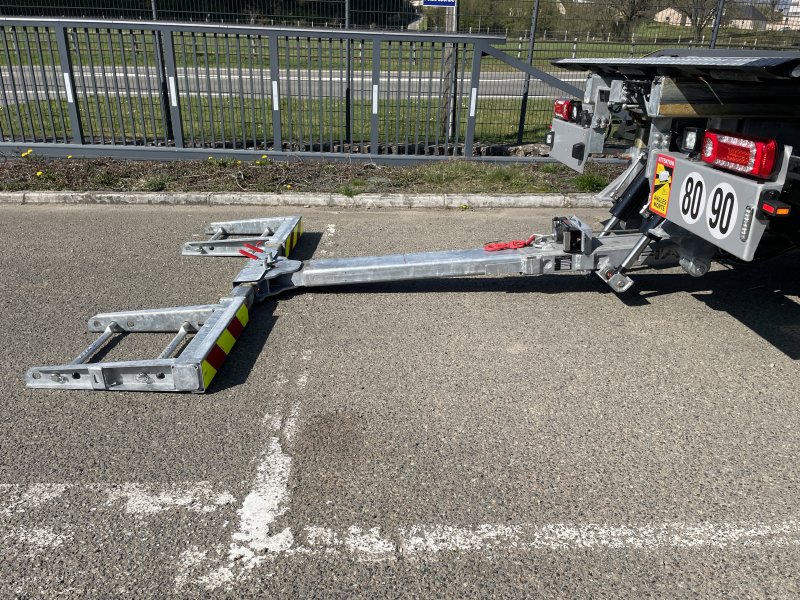

A 3 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm

0504M020

[ Open for more informations ] [ Fold up ]

A 3 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck

A 3 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm

0504M080

[ Open for more informations ] [ Fold up ]

A 3 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm, removeable and adjustable galvanised lift forks, crane head with pulley and two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck

A 4 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation

0504M040

[ Open for more informations ] [ Fold up ]

A 4 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, 4 chassis and axle lift forks, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck (weight = 450 Kg)

A 4 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation

0504M100

[ Open for more informations ] [ Fold up ]

A 4 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm, removeable and adjustable galvanised lift forks, 4 chassis and axle lift forks, crane head with pulley and two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck

A double crane head with pulley and support to replace the simple crane head

1108M110

[ Open for more informations ] [ Fold up ]

A double crane head with pulley and support to replace the simple crane head

A removable part adaptable to the Second Car Carrier with 2 pins and vertical spades for planting in the ground by lowering the Second Car Carrier

0504M150

[ Open for more informations ] [ Fold up ]

A removable part adaptable to the Second Car Carrier SCC with 2 pins and vertical spades for planting in the ground by lowering the Second Car Carrier with a support on the equipment and replacing the single-acting valve with a double-acting valve for the lifting cylinders of the SCC

Double hydraulic extension of the SCC to 1800 mm to allow the use of the manual or hydraulic ramps (PF60-PF65)

0504M130

[ Open for more informations ] [ Fold up ]

Double hydraulic extension of the SCC to 1800 mm to allow the use of the manual or hydraulic ramps (PF60-PF65)

Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys

0506M010

[ Open for more informations ] [ Fold up ]

Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys

Two aluminum ramps 1000x270 mm to improve the loading angle

0506M020

[ Open for more informations ] [ Fold up ]

Two aluminum ramps 1000x270 mm to improve the loading angle with a storage tray under the equipment

Two magnetic towing lights with electric cables and flexible yellow plate

0205M010

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights with electric cables and flexible yellow plate

Two suction towing lights with electric cables and flexible yellow plate

0205M020

[ Open for more informations ] [ Fold up ]

Two suction towing lights with electric cables and flexible yellow plate

Two magnetic towing lights 24V with radio control and flexible yellow plate

0205M030

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights 24V with radio control and flexible yellow plate

Two suction towing lights with radio control and flexible yellow plate

0205M040

[ Open for more informations ] [ Fold up ]

Two suction towing lights with radio control and flexible yellow plate

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

0205M070

[ Open for more informations ] [ Fold up ]

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, fitted on the second car carrier

1103M090

[ Open for more informations ] [ Fold up ]

A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, fitted on the second car carrier SCC with a remote control coupled with the winch of the plateform. An adaptable towing hook on the Second Car Carrier SCC with 2 pins

Two aluminum ramps 1250x500 mm adaptable at the end of the platform to allow the overflow of the wheels of the transported vehicle with a support under the equipment

0506M030

[ Open for more informations ] [ Fold up ]

Two aluminum ramps 1250x500 mm adaptable at the end of the platform to allow the overflow of the wheels of the transported vehicle with a support under the equipment

Anti-slip aluminium protectors on top of the two sides of the platform

0301M110

[ Open for more informations ] [ Fold up ]

Anti-slip aluminium protectors on top of the two sides of the platform

Rear, side mounted two hydraulic stabilisers with separate controls and manual distribution

0308M040

[ Open for more informations ] [ Fold up ]

Rear, side mounted two hydraulic stabilisers with separate controls and manual distribution (bearing width 2500 mm)

Half-stage type 3

0511M060

[ Open for more informations ] [ Fold up ]

Type 3 half-stage with elevation of the front part with 2 hydraulic cylinders and chains in 2 vertical posts and elevation of the rear part with 2hydraulic cylinders. Front and rear height adjustments in all positions with mechanical locks at the front and mechanical locks at the rear ends. Detachable anti-fall posts (weight = 1200 kg)

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

0601M055

[ Open for more informations ] [ Fold up ]

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

A 3 points lashing strap for light vehicle

0601M050

[ Open for more informations ] [ Fold up ]

A 3 points lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 3000x50mm

A 6T ring of hauling welded front of the winch

0604M070

[ Open for more informations ] [ Fold up ]

A 6T ring of hauling welded front of the winch

Two 3T lashing rings articulated and welded on the floor (1 per side)

0604M080

[ Open for more informations ] [ Fold up ]

Two 3T lashing rings articulated and welded on the floor (1 per side)

Two 3T lashing rings articulated and integrated on the floor (1 per side)

0604M085

[ Open for more informations ] [ Fold up ]

Two 3T lashing rings articulated and integrated on the floor (1 per side)

Four 3T lashing rings articulated and welded on the floor (2 per side)

0604M090

[ Open for more informations ] [ Fold up ]

Four 3T lashing rings articulated and welded on the floor (2 per side)

Four 3T lashing rings articulated and integrated on the floor (2 per side)

0604M095

[ Open for more informations ] [ Fold up ]

Four 3T lashing rings articulated and integrated on the floor (2 per side)

Six 3T lashing rings articulated and welded on the floor (3 per side)

0604M100

[ Open for more informations ] [ Fold up ]

Six 3T lashing rings articulated and welded on the floor (3 per side)

Six 3T lashing rings articulated and integrated on the floor (3 per side)

0604M105

[ Open for more informations ] [ Fold up ]

Six 3T lashing rings articulated and integrated on the floor (3 per side)

Six 7T lashing rings articulated and welded on the floor (3 per side)

0604M106

[ Open for more informations ] [ Fold up ]

Six 7T lashing rings articulated and welded on the floor (3 per side)

Eight 3T lashing rings articulated and welded on the floor (4 per side)

0604M110

[ Open for more informations ] [ Fold up ]

Eight 3T lashing rings articulated and welded on the floor (4 per side)

Rear view camera in color with flat screen in the cabin

0803M010

[ Open for more informations ] [ Fold up ]

Rear view camera in color with flat screen in the cabin

Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin

0803M030

[ Open for more informations ] [ Fold up ]

Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin

Installation of an air intake in the hydraulic controls toolbox

1205M020

[ Open for more informations ] [ Fold up ]

Installation of an air intake in the hydraulic controls toolbox

Pneumatic reel (connected to the circuit) with 10m hose

1204M010

[ Open for more informations ] [ Fold up ]

Pneumatic reel (connected to the circuit) with 10m hose, pressure gauge in a toolbox already provided on the equipment

Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane

0301M015

[ Open for more informations ] [ Fold up ]

Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane

Painting of the stylized aluminum profiles in the wheelbase in a standard color

0313M220

[ Open for more informations ] [ Fold up ]

Painting of the stylized aluminum profiles in the wheelbase (painting of toolbox doors not included) in a standard color RAL=

Painting of a tool box door or the control box (unit price)

0313M230

[ Open for more informations ] [ Fold up ]

Painting of a tool box door or the control box (unit price) (multiply by the number of boxes to be painted) in a standard color same as the body

Stylized polyester body in the wheelbase (for chassis cab from 10T to 19T)

0301M020

[ Open for more informations ] [ Fold up ]

Stylized polyester body in the wheelbase with rear fenders in polyurethane (for chassis cab from 10T to 19T) painted in a RAL color standard =

tylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T)

0301M030

[ Open for more informations ] [ Fold up ]

Stylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T, with tool box only opening from above behind the aluminum body) painted in a standard color RAL =

Full stylized polyester fenders painted in a standard color same as body (not included)

0301M040

[ Open for more informations ] [ Fold up ]

Full stylized polyester fenders painted in a standard color same as body (not included)

Polyester rear overhang (without wings) with a box for the hydraulic controls at the right rear and a tool box at the left rear

0301M050

[ Open for more informations ] [ Fold up ]

Polyester rear overhang (without wings) with a box for the hydraulic controls at the right rear and a tool box at the left rear with hinged doors (for chassis from 10T to 32T), painted in a standard color (not metallic) same as body

A winch spare wheel

0308M010

[ Open for more informations ] [ Fold up ]

A winch spare wheel holder secured to the side of the chassis

A Rockinger tow hook for a trailer with a Ø 50 ring installed on a fixed crosstie at the rear of the equipment

0508M080

[ Open for more informations ] [ Fold up ]

A Rockinger tow hook for a trailer with a Ø 50 ring installed on a fixed crosstie at the rear of the equipment

Two adjustable rear roller type stabilisers and a hydraulically swiveling bumper

0308M046

[ Open for more informations ] [ Fold up ]

Two adjustable rear roller type stabilisers and a hydraulically swiveling bumper with 2 hydraulics cylinders for trailer hook

Supply and installation of a hydraulic crane behind the cabin

0607M130

[ Open for more informations ] [ Fold up ]

Supply and installation of a hydraulic crane behind the cabin (capacity of the crane to define) with manufacture of a special subframe with side fixing plates and connection to the hydraulic circuit of the equipment without valve using a special variable hydraulic distributor, electrical connections, set-up, adjustments and acceptance of conformity by us

PTO for heavy vehicle not original fitted

1003M030

[ Open for more informations ] [ Fold up ]

PTO for heavy vehicle not original fitted

White reflective tape on the edge of the platform

0801M010

[ Open for more informations ] [ Fold up ]

White reflective tape on the edge of the platform

Orange reflective tape on the edge of the platform

0801M020

[ Open for more informations ] [ Fold up ]

Orange reflective tape on the edge of the platform

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

0707M010

[ Open for more informations ] [ Fold up ]

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

Configurator
[ Open ]

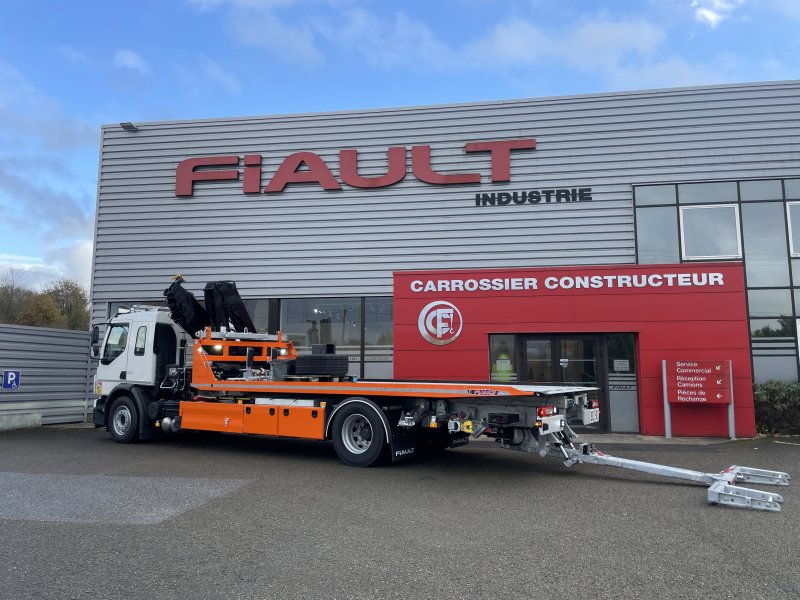

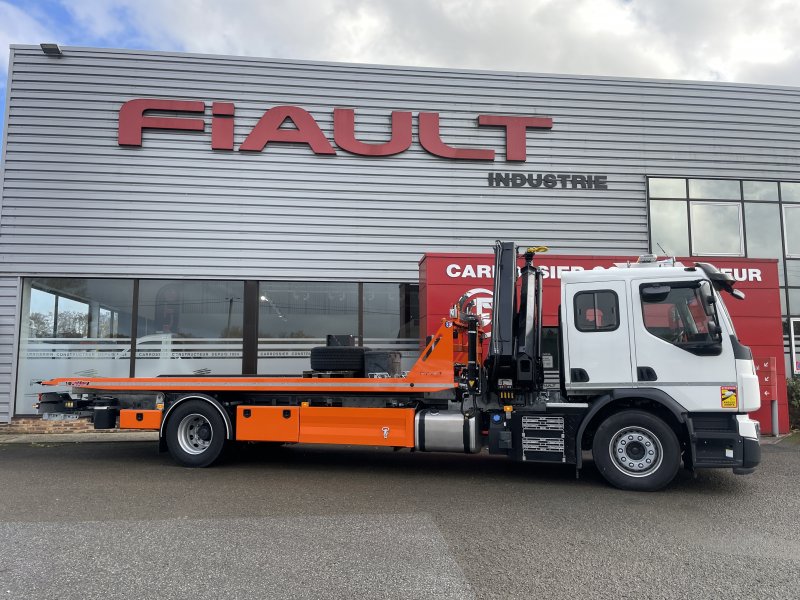

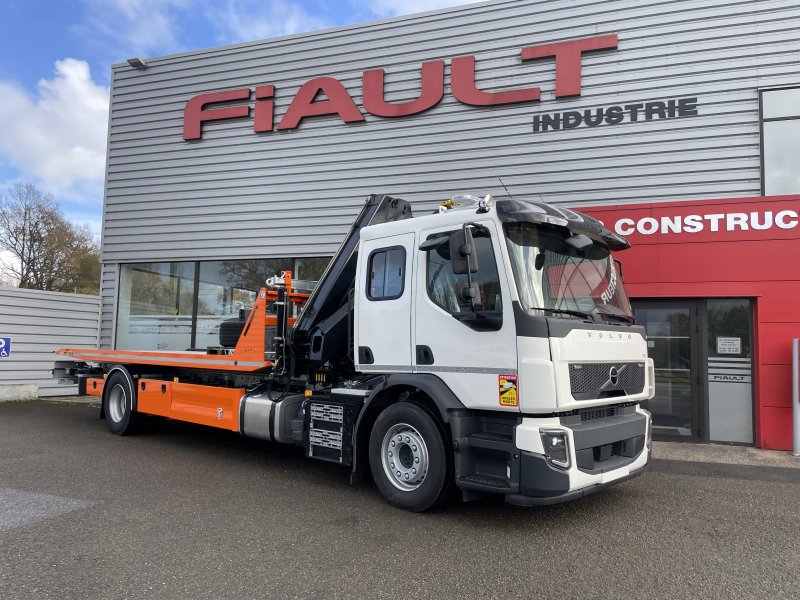

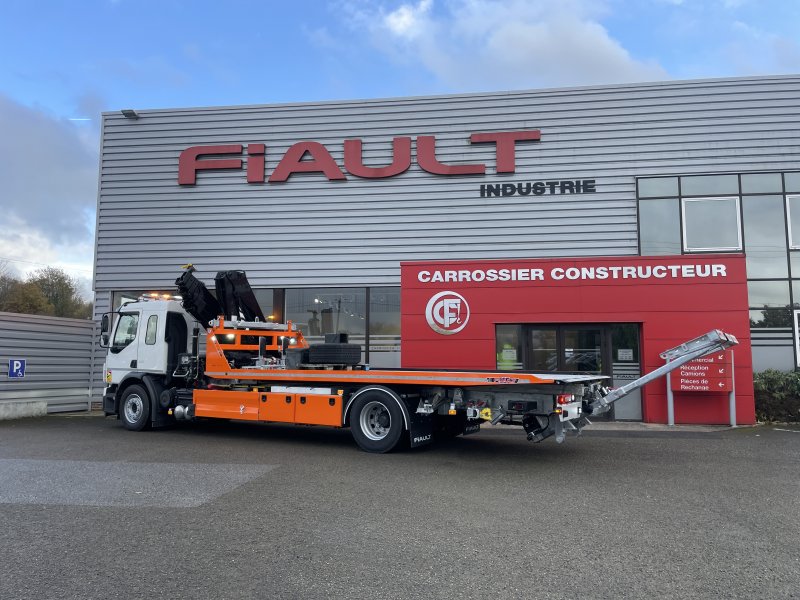

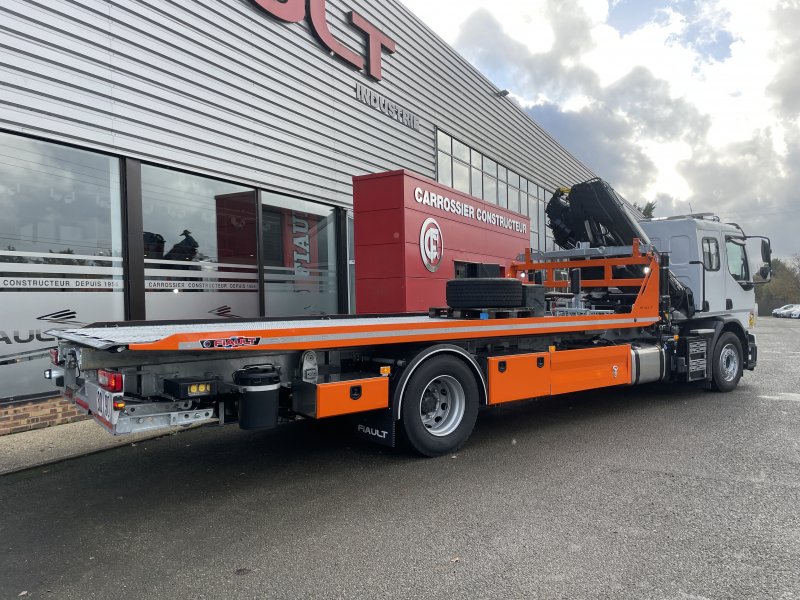

PLAT'SOL PF65

PLAT'SOL PF65

00-PF65

Generate the summary sheet

Fiche récapitulative

In order to generate your summary sheet, please fill in this contact form. We will contact you as soon as possible.
